RS-232 to Fiber Media Converter

FlexPoint® 232

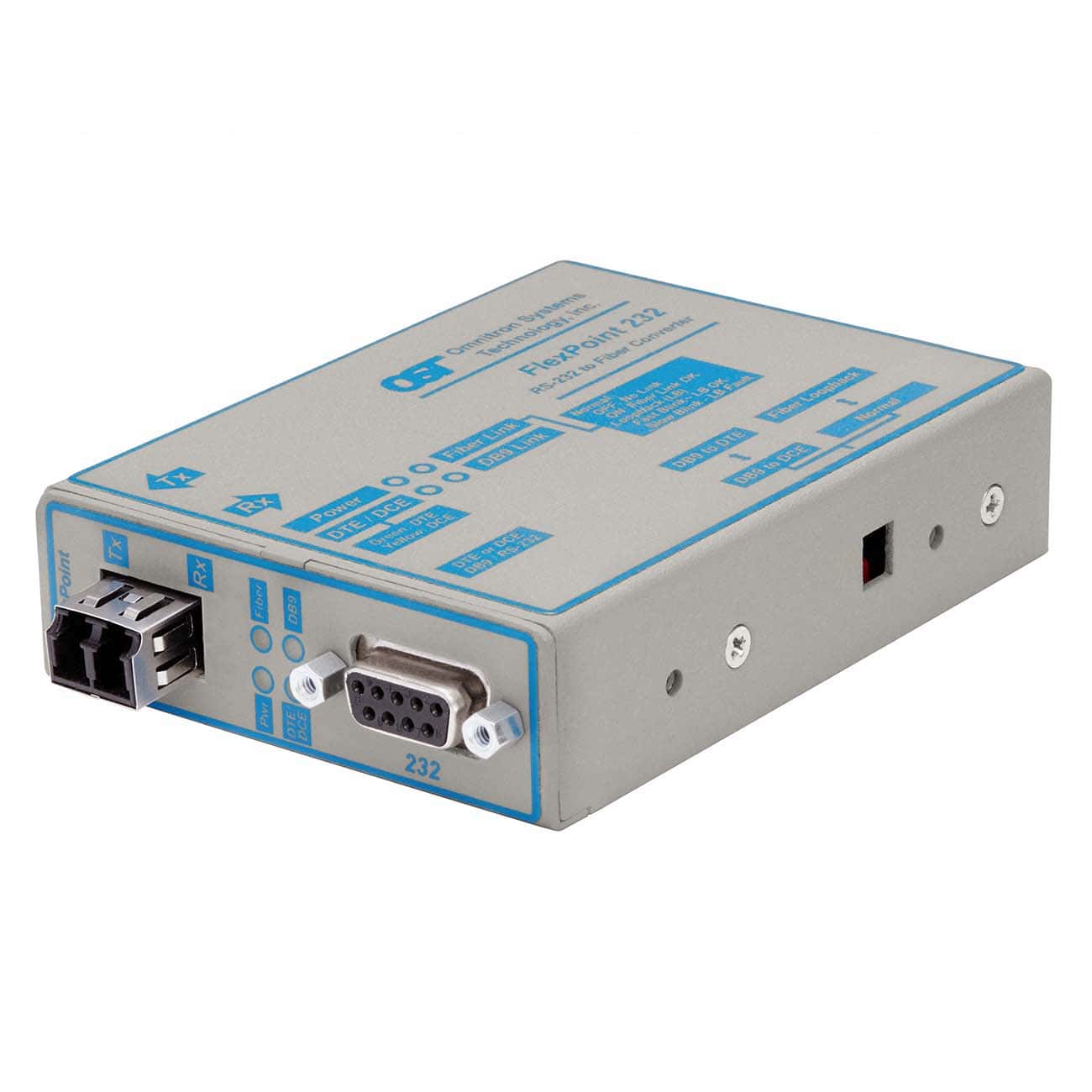

FlexPoint 232 LC
Lifetime Warranty
FlexPoint® 232: RS232 DB-9 to Fiber, LC, Multimode Dual Fiber, 1310nm, 5km, Univ 100-240VAC, Commercial Temperature 0 to 50 deg C


Part Number

4489-12

icons
Add to Quote

  • Description
  • Specifications
  • Documents

FlexPoint 232 (Data Sheet)

FlexPoint 232 (User Manual)

FlexPoint® 232: RS232 DB-9 to Fiber, LC, Multimode Dual Fiber, 1310nm, 5km, Univ 100-240VAC, Commercial Temperature 0 to 50 deg C

Specifications

Description
 FlexPoint 232
 Asynchronous RS-232 to Fiber Media Converter
Data Rates
 Up to 115,200 baud
Standard Compliances
 EIA / TIA 232C/D/E
Regulatory Compliances

Safety:

EMI:

ACT:

UL, cUL, CE, UKCA

FCC Class A

TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Port Types
Copper:

Fiber:
RS-232 (DB-9 Female)

Proprietary (ST, SC, LC)
Cable Types
Copper:

Fiber:
DB9 serial RS232 cable (50 ft./15.2m)

Multimode: 62.5/125µm, 100/140µm
Single-mode: 9/125µm
AC Power Requirements
AC Adapter:

100 - 240VAC/50 - 60Hz
0.05A @ 120VAC (typical)
DC Power Requirements

Voltage Range:
Nominal Voltage:
Nominal Power:
Barrel Connector
6.0 to 15.0VDC
9VDC
0.5A @ 9VDC
Molex Connector
4.75 to 5.25VDC
5VDC
0.6A @ 5VDC
Dimensions
W x D x H
 3.0" x 4.0" x 1.0" (76.2 mm x 101.6 mm x 25.4 mm)
Weight
 w/o AC Adapter:
6 oz. (170.1 grams)
Temperature
 Commercial:
Storage: 		    0 to 50°C
-40 to 80°C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
 w/o AC Adapter (-0):
w/ AC Adapter (-1):
w/ AC Adapter (-2): 		 850,000
250,000
100,000
Warranty
 Lifetime warranty with 24/7/365 free Technical Support
