Ethernet AUI to 10BASE-T Transceiver

FlexPoint® 10AUI/T

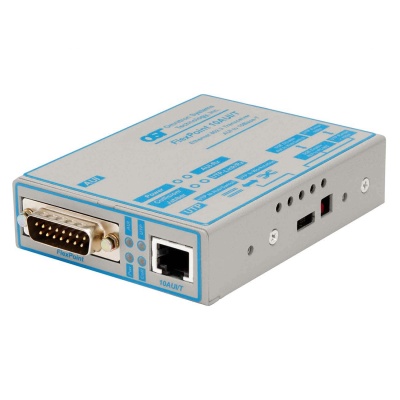

FlexPoint 10AUI T
Lifetime Warranty
FlexPoint® 10AUI/T: 10 Mbps RJ-45 to 10 Mbps, , , , , US 100-240VAC, Wide Temperature -40 to 60 deg C


Part Number

4321-1W

icons
Add to Quote

  • Description
  • Specifications
  • Documents

FlexPoint 10AUI/T (Data Sheet)

FlexPoint 10AUI/T (User Manual)

FlexPoint® 10AUI/T: 10 Mbps RJ-45 to 10 Mbps, , , , , US 100-240VAC, Wide Temperature -40 to 60 deg C

Specifications

Description
 FlexPoint 10AUI/T
 10AUI/T to 10BASE-T Media Converter
Standard Compliances IEEE 802.3
Regulatory Compliances

Safety:

EMI:

ACT:

UL, cUL, CE, UKCA

FCC Class A

TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Port Types
AUI:
Copper:
10AUI/T (DB-15 male)
10BASE-T (RJ-45)
Cable Types
AUI:
Copper:
Ethernet AUI cable (50 meters max)
EIA/TIA 568A/B, Cat 3 UTP and higher
AC Power Requirements
AC Adapter:
100 - 240VAC/50 - 60Hz
0.01A @ 120VAC (typical)
DC Power Requirements

Voltage Range:
Nominal Voltage:
Nominal Power:
Barrel Connector
8.0 to 15.0VDC
9VDC
0.1A @ 9VDC
Molex Connector
4.75 to 5.25VDC
5VDC
0.2A @ 5VDC
AUI Connector
8.0 to 15.0VDC
12VDC
0.7A @ 12VDC
Dimensions (W x D x H)
 3.0" x 4.0" x 1.0" (76.2 mm x 101.6 mm x 25.4 mm)
Weight
 Without AC Adapter:
6 oz. (170.1 grams)
Temperature
Commercial:
Wide:
Storage:
    0 to 50°C
-40 to 60°C
-40 to 80°C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m
MTBF (hrs)
 Without AC Adapter (-0):
With AC Adapter (-1):
With AC Adapter (-2):		 1,200,000
250,000
100,000
Warranty
 Lifetime warranty with 24/7/365 free Technical Support
