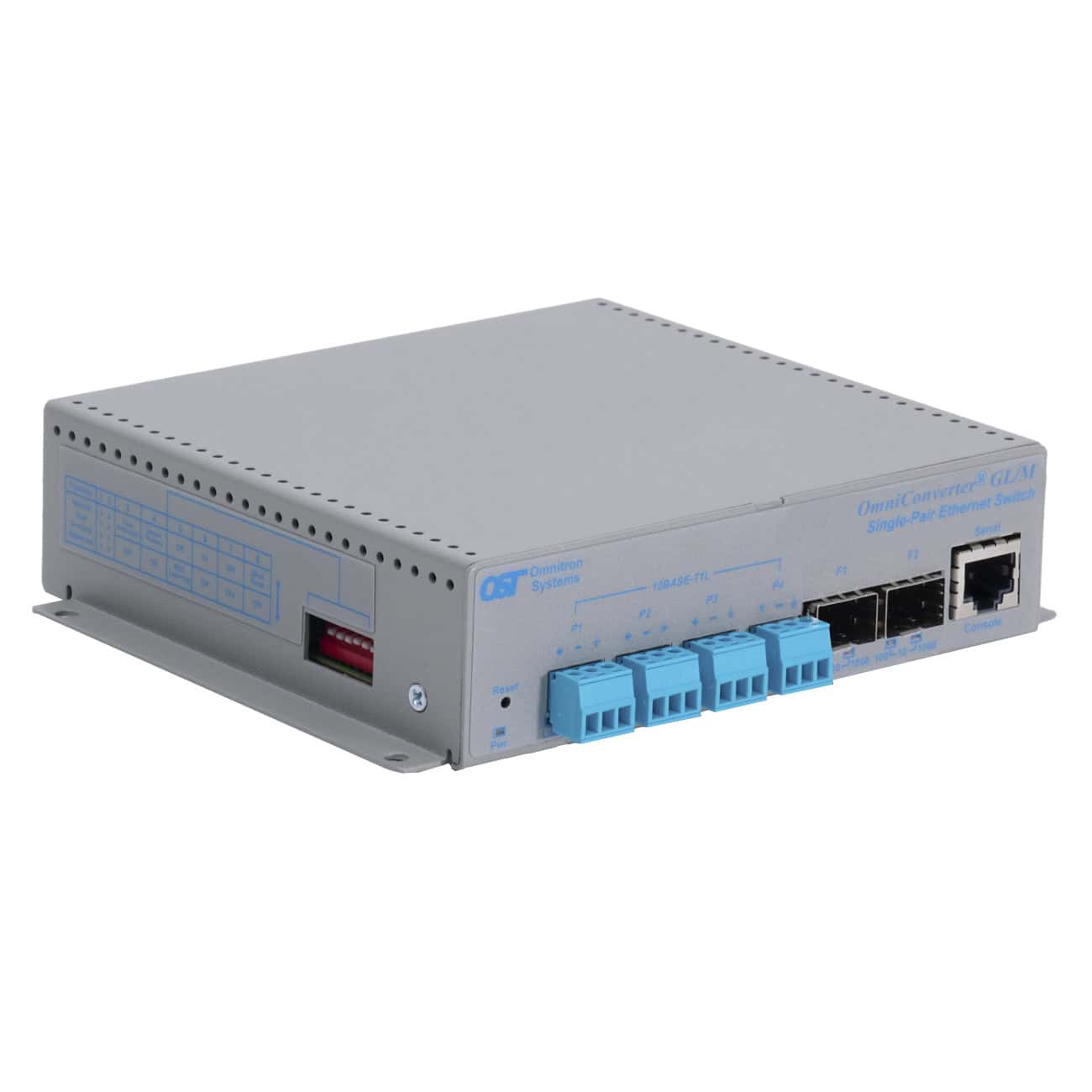

Part Number: 2910-0-40-1W

OmniConverter® GL/M

10T/T1L to 100/1000 Fiber or 10/100/1000 Copper Uplinks

Managed Ethernet Switch

IEEE 802.3, IEEE 802.3cg, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1ax, IEEE 802.1w RSTP/MSTP,

RFC 5424, RFC 4541, RFC 2710,

IEC 624339-2, SMTP, SNTP, RADIUS, TACACS+, IEEE 802.1x

Safety:  UL 62368-1, UL 60950-1,

             IEC 62368-1, IEC 60950-1,

             EN 62368-1, EN 60950-1,

             CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1,

             CE Mark, UKCA

EMC:    EN 55032/24 CE Emissions/Immunity,

             IEC 61000-6-4 Industrial Emissions, IEC 61000-6-2 Industrial Immunity

EMI:    CISPR 32,

            FCC 47 Part 15 Subpart B Class A

EMS:   IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

            IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m,

            IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV (DC models),

            IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV (AC models),

            IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (DC models),

            IEC 61000-4-5 Surge: Power: 1 kV Line/Line; 2 kV Line/Gnd; Signal: 2 kV (AC models),

            IEC 61000-4-6 CS: Signal: 10 V,

            IEC 61000-4-8 (Magnetic Field) 30A/m,

            IEC 61000-4-11 (Voltage Dips, interrupts)

IP Rating: IP20 Protection

ACT:    TAA, BAA, NDAA

IPv4 and IPv6 address

Web, Telnet, SSH, SNMPv1/v2c/v3

In-Band management via Ethernet port

Out-of-band management via serial port

10BASE-T1L: Up to 2,048 bytes

RJ-45:             Up to 10,240 bytes

SFP:               100M - up to 2,048 bytes

                       1000M - up to 10,240 bytes

10BASE-T1L: 3-Pin SPE Terminal connector or IEC 63171-2 SPE connector

RJ-45:            10/100/1000BASE-T

SFP:               10/100/1000BASE-T SGMII or 1000BASE-T SERDES Copper Transceiver,

                       100BASE-X or 1000BASE-X Fiber Transceiver

10BASE-T1L: Single-Pair Ethernet (SPE) cable, IEC 61156-13 (fixed) or IEC 61156-14 (flexible) 18AWG cable or better

RJ-45:             EIA/TIA 568A/B, Cat 5 UTP and higher

Fiber:              Multimode: 50/125, 62.5/125µm

                       Single-mode: 9/125µm

100 - 240VAC/50 - 60Hz

0.9A max at 115VAC; 0.5A max at 230VAC

+12 to +58VDC;

0.66A @ 12VDC;

2 Pin Terminal (isolated)

6.28” x 5.2” x 1.5” (159.5 mm x 132.1 mm x 38.1 mm)

Module Only: 1.5 lb.; 720 grams

Module with AC/DC Adapter: 2.0 lbs.; 913 grams

Commercial: 0 to 50°C

Wide:          -40 to 60°C (-20°C AC cold start)

Extended:   -40 to 75°C (-20°C AC cold start)

Storage:      -40 to 80°C

Module Only:      207,000

AC/DC Adapter: 100,000
