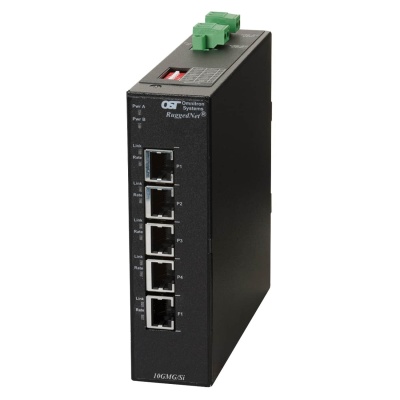

Unmanaged Inidustrial Multi-Gigabit 100M, 1G, 2.5G, 5G, 10G Ethernet Switch

Safety:  UL 62368-1,

              UL 60950-1,

              IEC 62368-1,

              IEC 60950-1,

              EN 62368-1,

              EN 60950-1,

              CAN/CSA C22.2 No. 62368-1-14,

              CAN/CSA C22.2 No. 60950-1,

              CE Mark, UKCA

EMC:     EN 55032/24 CE Emissions/Immunity,

              IEC 61000-6-4 Industrial Emissions,

              IEC 61000-6-2 Industrial Immunity

EMI:      CISPR 32,

              FCC 47 Part 15 Subpart B Class A

EMS:     IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

              IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m (on UTP cabling) and 20 V/m (on STP cabling)

              IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV,

              IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV,

              IEC 61000-4-6 CS: Signal: 10 V,

              IEC 61000-4-8 ( Magnetic Field), 30A/m,

              IEC 61000-4-11 (General Immunity in Industrial Environments)

IP Rating: IP40 Protection

ACT:       TAA, BAA, NDAA

Copper:      100/1000BASE-T, 2.5GBASE-T/5GBASE-T/10GBASE-T (RJ-45)

                   10/100/1000BASE-T (RJ-45)

SFP/SFP+: 10GBASE-X Fiber Transceivers, 10GBASE-T Copper Transceivers

                   1000BASE-X Fiber Transceivers, 1000BASE-T Copper Transceivers

                   10/100/1000BASE-T SGMII Copper Transceivers

                   100/1000/2.5G/5G/10GBASE-T Multi-rate Copper Transceivers

Copper: Twisted-pair cable up to 100 meters

              10BASE-T: 4-pair UTP Cat 3, 4, 5, 5e, 6, 6A

              100BASE-TX: 4-pair UTP Cat 5, 5e, 6, 6A

              1G/2.5G: 4-pair UTP Cat 5e, 6, 6A, 7

              5G: 4-pair UTP Cat 6, 6A, 7

              10G: 4-pair UTP Cat 6A, 7

Fiber:    Multimode: 50/125, 62.5/125µm

              Single-mode: 9/125µm

+12 to +57VDC;

0.82A @ 12VDC

0.21A @ 48VDC

2 Pin Terminal (isolated)
