Unmanaged Industrial Gigabit Ethernet Switch

RuggedNet® G/Si

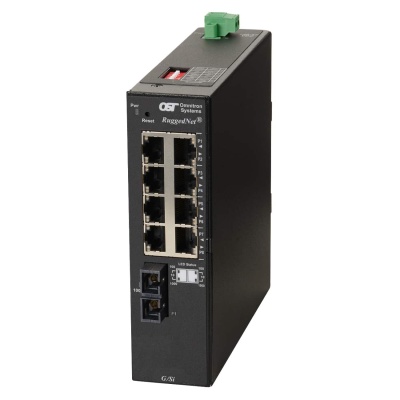

RuggedNet G Si 2xSC 8xRJ-45 1xDC
RuggedNet® G/Si: 8 x 10/100/1Gbps RJ-45 No PoE to 1 x 1 Gbps, SC, SMDF, 1310, 34km, Unmanaged Ethernet Switch, DIN-Rail Mount, DC 2-Pin Terminal, Extended Temperature Range


Part Number

2883-2-18-1Z

icons
Add to Quote

  • Description
  • Specifications
  • Documents

RuggedNet G/Si (Data Sheet)

RuggedNet G/Si (User Manual)

Wall Mount Plate (User Manual)

RuggedNet® G/Si: 8 x 10/100/1Gbps RJ-45 No PoE to 1 x 1 Gbps, SC, SMDF, 1310, 34km, Unmanaged Ethernet Switch, DIN-Rail Mount, DC 2-Pin Terminal, Extended Temperature Range

Specifications

Description RuggedNet® G/Si
10/100/1000BASE-T with Gigabit Fiber or 10/100/1000BASE-T Copper Uplinks
Industrial Unmanaged 6 and 10 Port Gigabit Ethernet Switch
Standard Compliances IEEE 802.3
Regulatory Compliances

Safety: UL 62368-1, UL 60950-1,

             IEC 62368-1, IEC 60950-1,

             EN 62368-1, EN 60950-1,

             CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1,

             CE Mark, UKCA

EMC:    EN 55032/24 CE Emissions/Immunity,

             IEC 61000-6-4 Industrial Emissions,

             IEC 61000-6-2 Industrial Immunity

EMI:     CISPR 32,

             FCC 47 Part 15 Subpart B Class A

EMS:    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

             IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m (on UTP cabling) and 20 V/m (on STP cabling)

             IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV,

             IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV,

             IEC 61000-4-6 CS: Signal: 10 V, IEC 61000-4-8 ( Magnetic Field), 30A/m,

             IEC 61000-4-11 (General Immunity in Industrial Environments)

IP Rating: IP40 Protection

ACT: TAA,BAA, NDAA
Environmental REACH, RoHS and WEEE
Frame Size Up to 10,240 bytes
Port Types

Copper: RJ-45: 10/100/1000BASE-T

Fiber:     Fixed: ST, SC, LC 1000BASE-X Fiber

               SFP:    10/100/1000BASE-T SGMII Copper Transceiver or

                           100BASE-X SGMII Fiber Transceiver or

                           1000BASE-X SERDES Fiber Transceivers
Cable Types Copper: EIA/TIA 568A/B, Cat 5 UTP and higher
Fiber:     Multimode: 50/125, 62.5/125µm
               Single-mode: 9/125µm
DC Power Requirements 4 RJ-45 Ports:
+12 to +57VDC;
0.68A @ 12VDC
0.17A @ 48VDC
2 Pin Terminal (isolated)		 8 RJ-45 Ports:
+12 to +57VDC;
0.75A @ 12VDC
0.19A @ 48VDC
2 Pin Terminal (isolated)
Dimensions
(W x D x H)		 1.5” x 5.5” x 5.5” (38.1 mm x 139.7 mm x 139.7 mm)
Weight 4 RJ-45 Ports:
1.70 lb.; 772 grams		 8 RJ-45 Ports:
1.77 lb.; 803 grams
Operating Temperature Extended: -40 to 75°C
Storage: -40 to 80°C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hrs) 305,000
Warranty
5 year product warranty with 24/7/365 free Technical Support
