Managed Industrial 10 Gigabit 60W PoE++ Switch

RuggedNet® 10GPoEBT/Mi

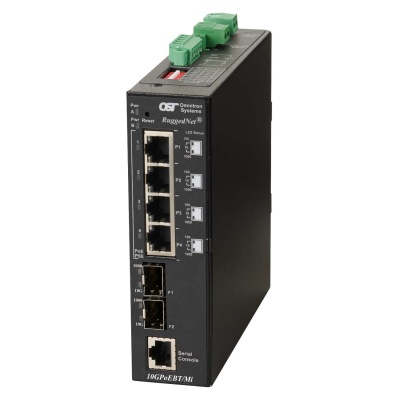

RuggedNet 10GPoEBT Mi 2x DC
RuggedNet® 10GPoEBT/Mi: 4 x 10/100/1Gbps RJ-45 PoE++/HPoE 60W to 2 x 1 Gbps / 10 Gbps, SFP, Fiber type depends on SFP, SFP-Dependent, Distance depends on SFP, Managed Ethernet Switch, DIN-Rail Mount, DC 2-Pin Terminal (x2), Extended Temperature Range


Part Number

3360B-0-24-2Z

icons
Add to Quote

  • Description
  • Specifications
  • Documents

RuggedNet 10GPoEBT/Mi (Data Sheet)

RuggedNet 10GPoEBT/Mi (User Manual)



RuggedNet Command Line Interface (User Manual)

RuggedNet Web Interface (User Manual)

OmniConverter / RuggedNet 2.5 Hierarchical CLI (User Manual)



Wall Mount Plate (User Manual)

RuggedNet® 10GPoEBT/Mi: 4 x 10/100/1Gbps RJ-45 PoE++/HPoE 60W to 2 x 1 Gbps / 10 Gbps, SFP, Fiber type depends on SFP, SFP-Dependent, Distance depends on SFP, Managed Ethernet Switch, DIN-Rail Mount, DC 2-Pin Terminal (x2), Extended Temperature Range

Specifications

Description RuggedNet® 10GPoEBT/Mi
10/100/1000BASE-T with 1/10G Fiber Uplink Ports
Ruggedized Managed IEEE 802.3bt PoE 10Gigabit Ethernet Switch
Standard Compliances

IEEE 802.3, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1ax, IEEE 802.1w RSTP/MSTP

RFC 5424, RFC 4541, RFC 2710, IEC 624339-2,

SMTP, SNTP, RADIUS, TACACS+, IEEE 802.1x

IEEE 802.3af (15.40 watts max), IEEE 802.3at (30 watts max), IEEE 802.3bt (60 and 100 watts max)
Regulatory Compliances
(*Pending)

Safety*: UL 62368-1, UL 60950-1,

               IEC 62368-1, IEC 60950-1,

               EN 62368-1, EN 60950-1,

               CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1,

               CE Mark,

               UKCA

EMC:      EN 55032/24 CE Emissions/Immunity,

               IEC 61000-6-4 Industrial Emissions, IEC 61000-6-2 Industrial Immunity

EMI:       CISPR 32,

               FCC 47 Part 15 Subpart B Class A

EMS:      IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

               IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m (on UTP cabling) and 20 V/m (on STP cabling)

               IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV,

               IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: Signal: 10 V,

               IEC 61000-4-8 ( Magnetic Field), 30A/m, IEC 61000-4-11 (General Immunity in Industrial Environments)

IP Rating: IP40 Protection

ACT: TAA, BAA, NDAA
Environmental REACH, RoHS and WEEE
Management

IPv4 and IPv6 address

Web, Telnet, SSH, SNMPv1/v2c/v3

In-Band management via Ethernet port

Out-of-band management via serial port
PoE Modes IEEE Alternate A (Alt A) and 4-Pair
Frame Size Up to 10,240 bytes
Port Types

Copper:       10/100/1000BASE-T (RJ-45)

SFP/SFP+: 10GBASE-X Fiber Transceivers

                    10GBASE-T Copper Transceivers

                    1000BASE-X Fiber Transceivers

                    1000BASE-T Copper Transceivers

                    10/100/1000BASE-T SGMII Copper Transceivers

Serial:          RJ-45
Cable Types

Copper: EIA/TIA 568A/B, Cat 5 UTP and higher

Fiber:      Multimode: 50/125, 62.5/125µm

               Single-mode: 9/125µm

Serial:     Category 3 and higher
DC Power Requirements

60W Models:

+46 to +57VDC;

4.47A @ 56VDC

2 Pin Terminal (isolated)

100W Models:

+46 to +57VDC;

7.33A @ 56VDC

2 Pin Terminal (isolated)
Alarm Contact (Output)

2 form C Relay for Normally Open and Normally Closed Operation

110VDC/125VAC Maximum Voltage

2A Maximum Current
Alarm Sensor (Input) 2.0ma @ 3.3VDC Closure Detection
Dimensions (W x D x H) 1.5” x 5.5” x 5.5” (38.1 mm x 139.7 mm x 139.7 mm)
Weight 1.70 lb. (772 grams)
Operating Temperature Extended: -40 to 75°C
Storage: -40 to 80°C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hrs) 265,000
Warranty
5 year product warranty with 24/7/365 free Technical Support



Power / Voltage Requirements and Specifications
Description

15W

IEEE 802.3af PoE

30W

IEEE 802.3at PoE+

60W

IEEE 802.3.bt PoE
(Type 3)

100W

IEEE 802.3bt PoE
(Type 4)
Power Supply Voltage Range 46.0 to 57.0 VDC 51.0 to 57.0 VDC 51.0 to 57.0 VDC 53.0 to 57.0 VDC
Voltage Range at PSE port Output 44.0 to 56.0 VDC 50.0 to 56.0 VDC 50.0 to 56.0 VDC 52.0 to 56.0 VDC
Maximum Power from PoE/PSE port 15.4 watts 30 watts 60 watts 100 watts
Minimum Voltage at PoE/PD port input* 37.0 VDC 42.5 VDC 42.5 VDC 41.1 VDC
Minimum Power at PoE/PD port* 12.95 watts 25.5 watts 51 watts 71 watts
* at 100 meters using Cat5
