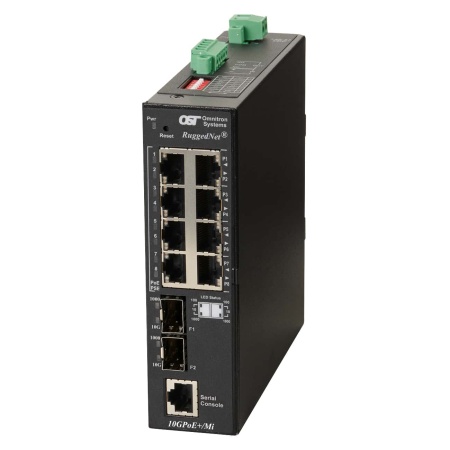

RuggedNet 10GPoE+ Mi 8x RJ-45 1x DC

Managed Industrial 10 Gigabit PoE/PoE+ Switch

RuggedNet® 10GPoE+/Mi

Part Number: 9582-0-28-2Z



Add to Quote
icons
  • Description
  • Specifications
  • Documents

RuggedNet® 10GPoE+/Mi: 8 x 10/100/1Gbps RJ-45 PoE+ 30W to 2 x 1 Gbps / 10 Gbps, SFP, Fiber type depends on SFP, SFP-Dependent, Distance depends on SFP, Managed Ethernet Switch, DIN-Rail Mount, DC 2-Pin Terminal (x2), Extended Temperature Range

Specifications

6 and 10-Port Industrial 10G Managed PoE Switches: Detailed Product Specifications

Description RuggedNet 10GPoE+/Mi
10/100/1000BASE-T with 1/10G Uplink Ports
Ruggedized Managed PoE+ 10Gigabit Ethernet Switch
Standard Compliances

IEEE 802.3, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1ax, IEEE 802.1w RSTP/MSTP

RFC 5424, RFC 4541, RFC 2710, IEC 624339-2,

SMTP, SNTP, RADIUS, TACACS+, IEEE 802.1x

IEEE 802.3af (15.40 watts max) and IEEE 802.3at (30 watts max)
Regulatory Compliances
(*Pending)

Safety*: UL 62368-1, UL 60950-1,

              IEC 62368-1, IEC 60950-1,

              EN 62368-1, EN 60950-1,

              CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1,

              CE Mark,

              UKCA

EMC:     EN 55032/24 CE Emissions/Immunity,

              IEC 61000-6-4 Industrial Emissions, IEC 61000-6-2 Industrial Immunity

EMI:      CISPR 32,

              FCC 47 Part 15 Subpart B Class A

EMS:     IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

              IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m (on UTP cabling) and 20 V/m (on STP cabling)

              IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV,

              IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: Signal: 10 V,

              IEC 61000-4-8 ( Magnetic Field), 30A/m, IEC 61000-4-11 (General Immunity in Industrial Environments)

IP Rating: IP40 Protection

ACT: TAA, BAA, NDAA
Environmental REACH, RoHS and WEEE
Management

IPv4 and IPv6 address

Web, Telnet, SSH, SNMPv1/v2c/v3

In-Band management via Ethernet port

Out-of-band management via serial port
PoE Modes IEEE Alternate A (Alt A)
Frame Size Up to 10,240 bytes
Port Types

Copper:      10/100/1000BASE-T (RJ-45)

SFP/SFP+: 10GBASE-X Fiber Transceivers

                   10GBASE-T Copper Transceivers

                   1000BASE-X Fiber Transceivers

                   1000BASE-T Copper Transceivers

                   10/100/1000BASE-T SGMII Copper Transceivers

Serial:         RJ-45
Cable Types

Copper: EIA/TIA 568A/B, Cat 5 UTP and higher

Fiber:   Multimode: 50/125, 62.5/125µm

            Single-mode: 9/125µm

Serial: Category 3 and higher
DC Power Requirements

4 RJ-45 Ports:

+46 to +57VDC;

2.33A @ 56VDC

2 Pin Terminal (isolated)

8 RJ-45 Ports

+46 to +57VDC;

4.49A @ 56VDC

2 Pin Terminal (isolated)
Alarm Contact (Output)

2 form C Relay for Normally Open and Normally Closed Operation

110VDC/125VAC Maximum Voltage

2A Maximum Current
Alarm Sensor (Input) 2.0ma @ 3.3VDC Closure Detection
Dimensions (W x D x H) 1.5” x 5.5” x 5.5” (38.1 mm x 139.7 mm x 139.7 mm)
Weight

4 RJ-45 Ports:

1.70 lb. (772 grams)

8 RJ-45 Ports:

1.77 lb. (803 grams)
Operating Temperature Extended: -40 to 75°C
Storage: -40 to 80°C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hrs) 263,000
Warranty
5 year product warranty with 24/7/365 free Technical Support



Power / Voltage Requirements and Specifications
Description

IEEE 802.3af PoE

IEEE 802.3at PoE+
Power Supply Voltage Range 46.0 to 57.0 VDC 51.0 to 57.0 VDC
Voltage Range at PSE port Output 44.0 to 56.0 VDC 50.0 to 56.0 VDC
Maximum Power from PoE/PSE port 15.4 watts 30 watts
Minimum Voltage at PoE/PD port input* 37.0 VDC 42.5 VDC
Minimum Power at PoE/PD port* 12.95 watts 25.5 watts
* at 100 meters using Cat5
