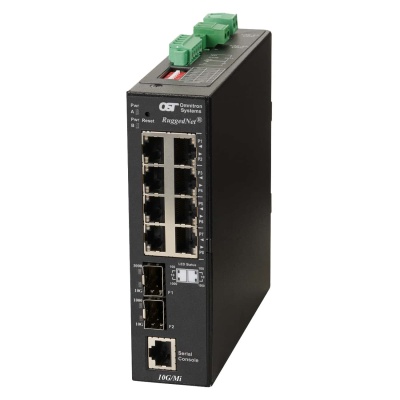

RuggedNet 10G Mi 8x RJ-45 2xDC

Managed Industrial 10 Gigabit Ethernet Switch

RuggedNet® 10G/Mi

Part Number: 2902-0-28-2Z



Add to Quote
icons
  • Description
  • Specifications
  • Documents

RuggedNet® 10G/Mi: 8 x 10/100/1Gbps RJ-45 No PoE to 2 x 1 Gbps / 10 Gbps, SFP, Fiber type depends on SFP, SFP-Dependent, Distance depends on SFP, Managed Ethernet Switch, DIN-Rail Mount, DC 2-Pin Terminal (x2), Extended Temperature Range

Specifications

Industrial Managed 10G Ethernet Switches: Detailed Product Specifications

Description RuggedNet® 10G/Mi
10/100/1000BASE-T with 1/10G Uplink Ports
Ruggedized Managed 6 and 10 Port 10Gigabit Ethernet Switch
Standard Compliances

EEE 802.3, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1ax, IEEE 802.1w RSTP/MSTP

RFC 5424, RFC 4541, RFC 2710, IEC 624339-2, SMTP, SNTP, RADIUS, TACACS+, IEEE 802.1x
Regulatory Compliances
(*Pending)

Safety*: UL 62368-1, UL 60950-1,

               IEC 62368-1, IEC 60950-1,

               EN 62368-1, EN 60950-1,

               CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1,

               CE Mark,

               UKCA

EMC:      EN 55032/24 CE Emissions/Immunity,

               IEC 61000-6-4 Industrial Emissions, IEC 61000-6-2 Industrial Immunity

EMI:       CISPR 32,

               FCC 47 Part 15 Subpart B Class A

EMS:      IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

               IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m (on UTP cabling) and 20 V/m (on STP cabling)

               IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV,

               IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: Signal: 10 V,

               IEC 61000-4-8 ( Magnetic Field), 30A/m, IEC 61000-4-11 (General Immunity in Industrial Environments)

IP Rating: IP40 Protection

ACT: TAA, BAA, NDAA
Environmental REACH, RoHS and WEEE
Management

IPv4 and IPv6 address

Web, Telnet, SSH, SNMPv1/v2c/v3

In-Band management via Ethernet port

Out-of-band management via serial port
Frame Size Up to 10,240 bytes
Port Types

Copper:      10/100/1000BASE-T (RJ-45)


SFP/SFP+: 10GBASE-X Fiber Transceivers

                    10GBASE-T Copper Transceivers

                    1000BASE-X Fiber Transceivers

                    1000BASE-T Copper Transceivers

                    10/100/1000BASE-T SGMII Copper Transceivers

Serial:          RJ-45
Cable Types

Copper: EIA/TIA 568A/B, Cat 5 UTP and higher


Fiber:    Multimode: 50/125, 62.5/125µm

              Single-mode: 9/125µm

Serial:   Category 3 and higher
DC Power Requirements 4 RJ-45 Ports:
+12 to +57VDC;
0.81A @ 12VDC
0.20A @ 48VDC
2 Pin Terminal (isolated)		 8 RJ-45 Ports:
+12 to +57VDC;
0.90A @ 12VDC
0.22A @ 48VDC
2 Pin Terminal (isolated)
Alarm Contact (Output)

2 form C Relay for Normally Open and Normally Closed Operation

110VDC/125VAC Maximum Voltage

2A Maximum Current
Alarm Sensor (Input) 2.0ma @ 3.3VDC Closure Detection
Dimensions (W x D x H) 1.5” x 5.5” x 5.5” (38.1 mm x 139.7 mm x 139.7 mm)
Weight 4 RJ-45 Ports:
1.70 lb. (772 grams)		 8 RJ-45 Ports:
1.77 lb. (803 grams)
Operating Temperature Extended: -40 to 75°C
Storage: -40 to 80°C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hrs) 285,000
Warranty
5 year product warranty with 24/7/365 free Technical Support
