Utility Substation Fiber Ring Network with Industrial Ethernet Switches

A major electric utility serving hundreds of thousands of residential, commercial, and industrial customers was modernizing its electrical distribution substations. The utility required a highly reliable industrial Ethernet infrastructure capable of supporting intelligent electronic devices (IEDs), protective relays, SCADA communications, IP security cameras, environmental monitoring, and engineering workstation connectivity while ensuring uninterrupted operation in harsh outdoor environments.



Application Overview

Modern electrical substations depend on continuous communications between protection devices, automation controllers, monitoring equipment, and utility control centers. Network downtime can delay fault detection, interrupt SCADA communications, and reduce system reliability.

To improve network availability, the utility deployed a redundant fiber optic ring architecture connecting all network devices throughout each substation. Industrial managed Ethernet switches installed throughout the yard and control building provide high-speed Gigabit and 10 Gigabit connectivity over fiber while supporting redundant ring protection and centralized network management.

The network carries:

• SCADA traffic
• IEC 61850 communications
• Intelligent Electronic Devices (IEDs)
• Protective relay communications
• RTUs (Remote Terminal Units)
• Engineering workstations
• IP surveillance cameras
• Access control systems
• Environmental monitoring sensors
• Time synchronization equipment

The Challenge

Electrical substations present one of the most demanding networking environments.

Key challenges included:

Harsh Environmental Conditions

Equipment must operate continuously despite:

• Extreme heat and cold
• Moisture
• Dust
• Lightning events
• Electromagnetic interference (EMI)
• Electrical surges generated by switching equipment

Network Availability

Protection systems require extremely high network availability. A single cable failure cannot interrupt communications between protective relays and SCADA systems.



Long Distance Communications

Devices are distributed throughout the substation, often several hundred meters apart. Copper Ethernet is limited to 100 meters and is susceptible to EMI.



Network Security

The utility required managed industrial switches capable of VLAN segmentation, authentication, monitoring, and secure remote management.



Future Expansion

The new infrastructure needed sufficient bandwidth to support increasing deployment of:

• High-resolution IP cameras
• Advanced monitoring systems
• Digital substations
• Additional IEC 61850 devices

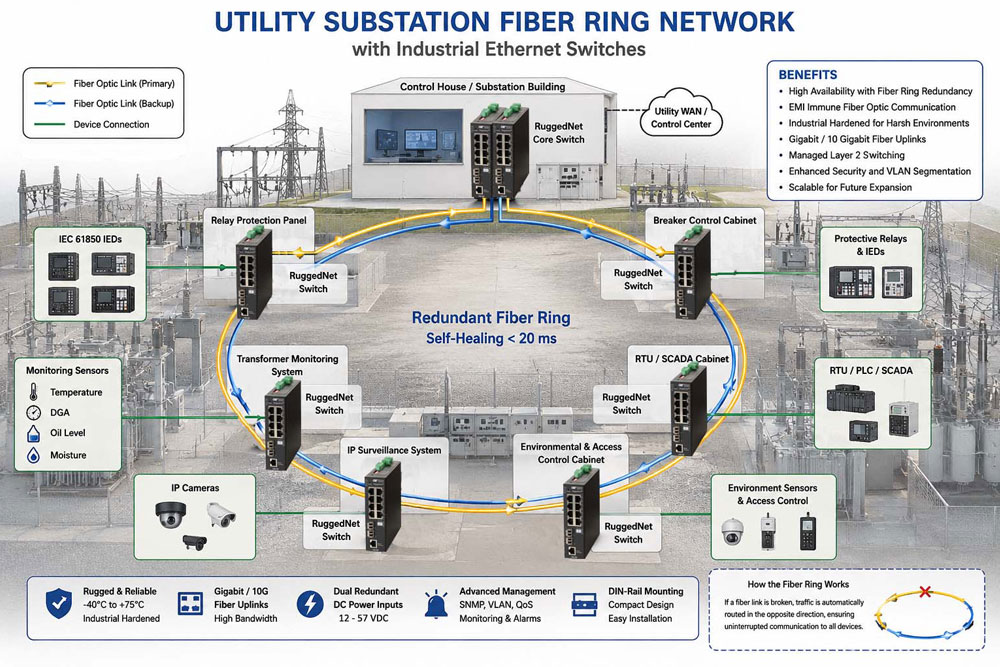

Network Architecture

Each substation includes:

• Control House Core Switch
• Relay Protection Panels
• Breaker Control Cabinets
• Transformer Monitoring Systems
• RTU Cabinets
• SCADA Gateway
• Security Cameras
• Fiber Ring Backbone
• Utility WAN Connection

All RuggedNet switches participate in the redundant fiber ring while providing local copper connections to field devices.

Benefits

High Network Availability

Redundant fiber ring protection minimizes downtime by automatically recovering from fiber or switch failures.



EMI Immunity

Fiber optic communications eliminate electrical interference common in high-voltage substations.



Industrial Reliability

RuggedNet switches are designed for continuous operation in harsh electrical utility environments.



Simplified Management

Centralized management enables network administrators to:

• Monitor switch health
• Configure VLANs
• View fiber link status
• Receive alarms
• Perform remote diagnostics

Scalable Infrastructure

Additional substations, relay panels, cameras, and automation devices can easily be added without redesigning the network.



High Bandwidth

Gigabit and 10 Gigabit fiber connections provide ample capacity for:

• Protection traffic
• SCADA
• Engineering access
• IP video
• Future digital substation applications

The Solution

The utility selected Omnitron RuggedNet® Industrial Managed Ethernet Switches to create a resilient fiber optic backbone connecting all network cabinets throughout each substation.

Each RuggedNet switch provides:

• Gigabit and 10 Gigabit fiber uplinks
• Industrial hardened operation
• Managed Layer 2 switching
• Redundant fiber ring topology
• Fiber connectivity immune to EMI
• Extended temperature operation
• DIN-rail mounting
• Dual redundant DC power inputs

The switches were interconnected using multimode and single-mode fiber to create a self-healing fiber ring architecture.

If any fiber segment is damaged, traffic is automatically rerouted through the opposite direction of the ring, maintaining continuous communications to all critical equipment.



The Result

The RuggedNet deployment provided a highly resilient communications network that significantly improved substation reliability while reducing maintenance costs and simplifying network management.

The redundant fiber ring architecture ensures uninterrupted communications between SCADA systems, protective relays, and field devices even in the event of a fiber cable break or equipment failure. The utility now benefits from improved operational visibility, increased cybersecurity capabilities through managed networking, and a scalable foundation ready to support future IEC 61850 digital substation initiatives.



Why Omnitron Solution

The utility selected Omnitron RuggedNet® Industrial Managed Ethernet Switches to create a resilient fiber optic backbone connecting all network cabinets throughout each substation.

• Industrial hardened design
• Extended operating temperature
• Gigabit and 10 Gigabit fiber connectivity
• Layer 2 management
• Fiber ring redundancy
• VLAN support
• Quality of Service (QoS)
• SNMP network management
• Dual redundant DC power inputs
• DIN-rail mounting
• Low maintenance operation
• Long service life suitable for utility infrastructure
