RuggedNet® GL/Mi

Managed Industrial Single Pair Ethernet Switch

Features
Description
Examples
Specifications
Ordering
Documents

Features

Managed Industrial Single-Pair Ethernet switch
Modbus Industrial Protocol for device management and monitoring
Supports IPv4 and IPv6
IEEE 802.1x, RADIUS, TACACS+ and ACL
Email Notification
Rapid and Multiple Spanning Tree Protocol
Media Redundancy Protocol (MRP)
IEEE 802.1ax LAG and LACP; Active/Active and Active/Standby
IEEE 802.1Q VLAN tagging and IEEE 802.1ad Q-in-Q
Broadcast / Multicast / Unicast Storm Prevention
DHCP Relay Option 82, DHCPv6 and DHCPv6 Relay
IPv4 IGMP and IPv6 MLD snooping
Rate Limiting, Queue prioritization and Class of Service
IEEE 802.1ab Link Layer Discovery Protocol
Static MAC configuration and blocking of unknown Unicast/Multicast addresses
Management via Web, Telnet, SSH, SNMPv1/v2c/v3 and serial interfaces
Easy to use Hierarchical Command Line Interface
SNMP management via Omnitron’s NetOutlook® management software, or third-party SNMP software
Free 24/7/365 Technical Support

ADDITIONAL FEATURES

Dual Device mode for operating as two separate switches
Directed Switch mode prevents flooding of multicast traffic
Four IEEE 802.3cg Single-Pair Ethernet user ports
Supports 3-Pin SPE Terminal connector or IEC 63171-2 SPE connector
Two SFP or two 10/100/1000 RJ-45 uplink ports
Supports 10/100/1000 and 1G copper SFP transceivers
Supports 100Mbps and 1000Mbps fiber SFPs
Alarm contacts and sensors
Dual DC power for redundancy
Wall, Rack and DIN-rail mountable
Fan-less design for long life
Industrial (-40º to 75ºC) operating temperature
TAA, BAA and NDAA compliant, and Made in the USA

Description

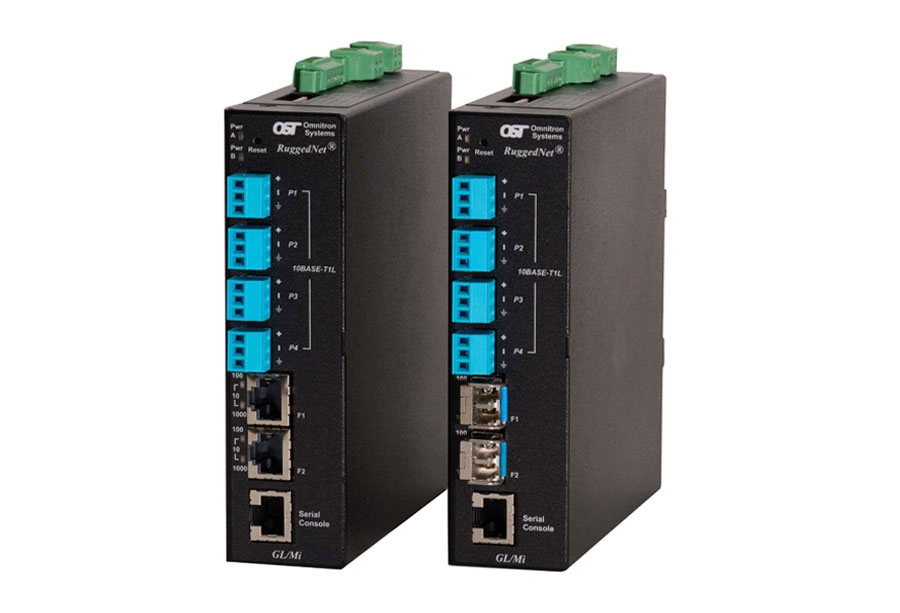

The RuggedNet GL/Mi is a managed industrial gigabit Ethernet switch that features copper or fiber uplink ports and four single-pair 10BASE-T1L Ethernet copper user ports.

The Single Pair Ethernet switch features four IEEE 802.3cg compliant 10BASE-T1L 3-pin SPE terminal ports or IEC 63171-2 SPE ports and two 10/100/1000 RJ-45 or 100/1000 fiber uplink ports.

The RuggedNet GL/Mi is a standard Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.

The switch supports Dual Device mode, Directed Switch mode and Redundant Uplinks.

Dual Device mode that enables the module to operate as two independent and isolated Ethernet switches. In Dual Device mode, the GL/Mi provides separate and independent data traffic paths between the two uplink ports and four user ports.

Directed Switch mode directs multicast traffic (such as video) only to the appropriate uplink port, preventing the multicast video traffic from flooding other network ports.

Redundant fiber or copper uplinks provide protection and restoration for critical applications. In the event of a failure on the primary uplink port, the switch will failover to the secondary uplink port. Once the failed uplink port has been restored, the switch will return to the primary uplink port.

For daisy-chain applications, the second uplink port can be used to cascade multiple switches.

The mode of operation can be configured using easily accessible DIP-switches or using Web, Telnet, SSH, SNMPv1/v2c/v3 or Serial Console management interfaces. IPv4 and IPv6 are supported on the switches. These management interfaces provide access to filtering and security options, such as, broadcast storm prevention, IGMP, IEEE 802.1x, RADIUS, TACACS+ and Access Control Lists. Email notification and alarm reporting is provided.

The Small Form Pluggable (SFP) transceiver receptacle ports support 10/100/1000BASE-T and 1000BASE-T copper transceivers and 100Mbps and 1000Mbps standard, CWDM and DWDM fiber transceivers in a variety of distances and fiber types.

The switch can be wall or rack mounted using a wall mount bracket (8260-3) and shelf (8260-0) or DIN-rail mounted using the included DIN-rail mounting clip. The switch is available with dual DC input power.

Examples

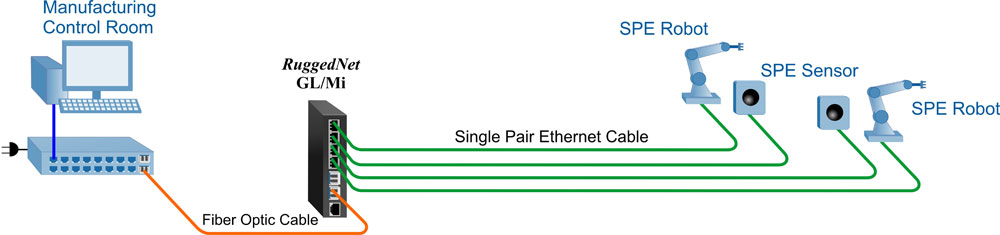

Industrial Manufacturing Application

This application example illustrates how industrial devices, that excess the standard 100 meter distance of Ethernet, can be connected to a remote Manufacturing Control Room using the SPE cabling. Each SPE device is connected to a RuggedNet GL/Mi Single Pair Ethernet switch using SPE cabling. The RuggedNet switch is connected to the Control Room using fiber optic cabling.

The RuggedNet switch, SPE robots and sensors will require an external power source.

Specifications

Description	RuggedNet® GL/Mi 10T/T1L to 100/1000 Fiber or 10/100/1000 Copper Uplinks Managed Industrial Ethernet Switch
Standard Compliances	IEEE 802.3, 802.3cg
Regulatory Compliances (Pending)	Safety: UL 62368-1, UL 60950-1, IEC 62368-1, IEC 60950-1, EN 62368-1, EN 60950-1, CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1, CE Mark, UKCA EMC: EN 55032/24 CE Emissions/Immunity, IEC 61000-6-4 Industrial Emissions, IEC 61000-6-2 Industrial Immunity EMI: CISPR 32, FCC 47 Part 15 Subpart B Class A EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m (on UTP cabling) and 20 V/m (on STP cabling) IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: Signal: 10 V, IEC 61000-4-8 ( Magnetic Field), 30A/m, IEC 61000-4-11 (General Immunity in Industrial Environments) IP Rating: IP40 Protection ACT: TAA,BAA, NDAA
Environmental	REACH, RoHS and WEEE
Management	IPv4 and IPv6 address Web, Telnet, SSH, SNMPv1/v2c/v3 In-Band management via Ethernet port Out-of-band management via serial port
Frame Size	10BASE-T1L: Up to 2,048 bytes RJ-45: Up to 10,240 bytes SFP: 100M - up to 2,048 bytes 1000M - up to 10,240 bytes
Port Types	10BASE-T1L: 3-Pin SPE Terminal connector or IEC 63171-2 SPE connector RJ-45: 10/100/1000BASE-T SFP: 10/100/1000BASE-T SGMII or 1000BASE-T SERDES Copper Transceiver, 100BASE-X or 1000BASE-X Fiber Transceiver
Cable Types	10BASE-T1L: Single-Pair Ethernet (SPE) cable, IEC 61156-13 (fixed) or IEC 61156-14 (flexible) 18AWG cable or better RJ-45: EIA/TIA 568A/B, Cat 5 UTP and higher Fiber: Multimode: 50/125, 62.5/125µm Single-mode: 9/125µm
DC Power Requirements	+12 to +58VDC; 0.66A @ 12VDC; 2 Pin Terminal (isolated)
Alarm Contact (Output)	2 form C Relay for Normally Open and Normally Closed Operation 110VDC/125VAC Maximum Voltage 2A Maximum Current
Alarm Sensor (Input)	2.0ma @ 3.3VDC Closure Detection
Dimensions (W x D x H)	1.5” x 5.2” x 5.5” (38.1 mm x 132.1 mm x 139.7 mm)
Weight	1.70 lb. (772 grams)
Operating Temperature	Extended: -40 to 75°C Storage: -40 to 80°C
Humidity	5% to 95% (non-condensing)
Altitude	-100m to 4,000m (operational)
MTBF (hrs)	208,000
Warranty	5 year product warranty with 24/7/365 free Technical Support
