Multi-Service CWDM Application
This example shows a multiple channel multiplexing/ demultiplexing application. The iConverter 19-module chassis at the top of the illustration is providing a multi-service platform in which the traffic from external T1/E1, T3/E3 and 10Gbps Ethernet sources are converted from copper-tofiber or fiber-to-fiber using iConverter media converters. Each converter is equipped with the appropriate CWDM channel Small Form Pluggable (SFP) fiber transceiver. The traffic from a fiber port on the Gigabit Ethernet switch is converted from its standard 1310nm wavelength to the appropriate CWDM channel using an iConverter xFF fiber-to-fiber transponder.
All four channels are connected to corresponding channels on a 8-Channel multiplexer, which are multiplexed over a fiber common link to the remote 4-Channel multiplexer. At the remote locations, the four channels are converted back to their original copper and fiber media using standalone converters. The example also shows the addition of four extra channels using the Expansion Ports on the remote CWDM/X. The 8865-0 Band-Splitter (not shown) can also be used.
Point to Point CWDM
In this application, the customer needs to transport four (4) independent 10G Ethernet switches from Site A to Site B over a single-mode dual fiber infrastructure. Each switch at Site A is connected with its peer at Site B. A four (4) channel CWDM Multiplexer is use to connect the switches to the existing single-mode fiber. The CWDM Multiplexer will multiplex the four independent switches onto the existing single-mode fiber network.
The switches at Site A and B can be co-located or located in different MDF/IDFs within the customer’s premise. To connect the switches to the CWDM Multiplexer, CWDM Small Form Pluggable (SFP) transceivers are installed in each 10G switch. The wavelength of each SFP transceiver will match the wavelength of the channel port on the CWDM Multiplexer as well as the wavelength of the SFP transceiver in the peer switch.
As shown in the diagram, switch A at Site A has a 1470nm CWDM SFP transceiver installed. A single-mode fiber patch cord connects the transceiver to the 1470nm channel port on the four (4) channel CWDM Multiplexer. At Site B, switch A also has a 1470nm CWDM SFP transceiver installed and connected to the 1470nm channel port on the CWDM Multiplexer. Each switch at Site A has a corresponding CWDM SFP transceiver installed to match the channel port on the CWDM Multiplexer and peer switch at Site B.
The fiber capacity in this application can be increased to sixteen (16) channel using a combination of different CWDM Multiplexers and Band Splitters.
Model Number | Model Type | Channel Port ITU Center Wavelengths (nm) |
---|---|---|
8860-0t | 4-Channel MUX/DEMUX with LC UPC Connectors | 1471, 1491, 1591, 1611 |
8860-1t | 4-Channel MUX/DEMUX and 1310 Pass Band with LC UPC Connectors | 1471, 1491, 1591, 1611 |
8860-2t | 4-Channel MUX/DEMUX, 1310 Pass Band and 1550 Pass Band/Expansion with LC UPC Connectors | 1471, 1491, 1591, 1611 |
8860-3t | 4-Channel MUX/DEMUX and 1550 Pass Band/Expansion with LC UPC Connectors | 1471, 1491, 1591, 1611 |
8861-0t | 4-Channel MUX/DEMUX with LC UPC Connectors | 1511, 1531, 1551, 1571 |
8861-1t | 4-Channel MUX/DEMUX and 1310 Pass Band with LC UPC Connectors | 1511, 1531, 1551, 1571 |
8862-0t | 8-Channel MUX/DEMUX with LC UPC Connectors | 1271, 1291, 1311, 1331, 1351, 1371, 1431, 1451 |
8863-0t | 8-Channel MUX/DEMUX with LC UPC Connectors | 1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611 |
8863-5t | 8-Channel MUX/DEMUX with LC APC Connectors | 1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611 |
8863-1t | 8-Channel MUX/DEMUX and 1310 Pass Band with LC UPC Connectors (occupies two slots in the chassis) | 1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611 |
8863-6t | 8-Channel MUX/DEMUX and 1310 Pass Band with LC APC Connectors (occupies two slots in the chassis) | 1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611 |
8865-0t | Single Band Splitter | Lower Band (1271 - 1451) + Upper Band (1471 - 1611) |
8865-2t | Dual Band Splitter | Lower Band (1271 - 1451) + Upper Band (1471 - 1611) |
1310 Pass Band port supports 1260nm to 1460nm (Rev 2.0 or later). The port can be used to cascade two 8-Channel MUX or pass any legacy 1310 device. 1550 Pass Band / Expansion port supports 1510nm to 1570nm. The port can be used to cascade the two 4-Channel MUX or pass any legacy 1550 device. Contact Omnitron for other port configurations, extended temperature (-40 to 75°C) and RoHS (5/6) compliant models. See chassis and mounting options at: iConverter Chassis and Mounting Option web page |
<leave blank> = Commercial temperature (0 to 50°C) |
W = Wide temperature (-40 to 60°C) |
iConverter CWDM/X (Data Sheet)
iConverter CWDM/X (User Manual)
iConverter CWDM/X Band Splitter (User Manual)
8860-0, 8860-0W, 8860-1, 8860-2, 8860-3, 8861-0, 8861-900, 8861-901, 8861-1, 8879-01, 8879-02, 8879-03, 8879-06, 8862-0, 8862-0W, 8863-900, 8863-901, 8863-0, 8863-1, 8863-5, 8863-6, 8865-0, 8865-0W, 8865-0Z, 8865-2,
Coarse Wave Division Multiplexing (CWDM) is a technology which multiplexes a number of optical signals onto a single fiber by using different wavelengths of light.

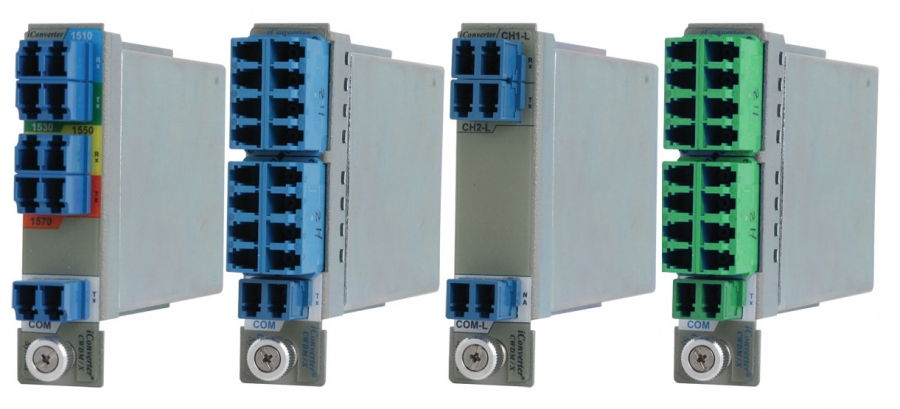

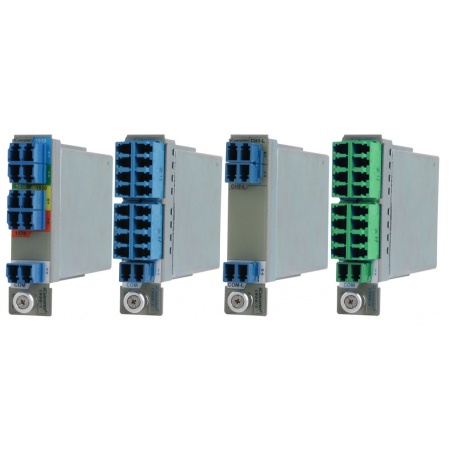

Omnitron’s iConverter CWDM/X Multiplexer/Demultiplexer (MUX/DEMUX) modules support ITU-T G.694.2 wavelengths between 1270nm to 1610nm in 20nm increments. CWDM/X modules are protocol and rate transparent allowing different services up to 10Gbps to be transported across the same fiber link.
The passive CWDM/X modules are available in 4 and 8-Channel (wavelength) models, supporting a variety of wavelength combinations and port configurations.
The 4-Channel CWDM/X features an optional 1550 Pass Band/Expansion Port that can be used to cascade two MUX/DEMUX modules, doubling the channel capacity on the common fiber link or overlay four CWDM channels on the existing 1550nm network.
The 4 and 8-Channel MUX/DEMUX modules feature an optional 1310nm Pass Band port that allows up to eight CWDM channels to be overlaid on an existing 1310nm network.
Two 8-Channel MUX/DEMUX modules can be cascaded to create a 16-Channel common fiber link using the CWDM/X Band-Splitter. The Band-Splitter module combines and separates the lower CWDM channels (1270nm to 1450nm) and the upper CWDM channels (1470nm to 1610nm).
The small and compact size of the CWDM/X modules yields one of the highest port densities in the industry. Using the 2U high iConverter compact chassis, 38 CWDM/X modules can be installed, providing up to 684 connectors or up to 608 simplex channels or 304 duplex channels.
iConverter CWDM/X modules can be installed in any iConverter chassis equipped with other iConverter media converters and transponders to provide a multi-service platform capable of delivering Ethernet, TDM, SONET and other services across a CWDM fiber common link.
|
