10/100BASE-T to 100BASE-X Media Converter with Power over Ethernet (PoE / PoE+)

OmniConverter® FPoE+/SE

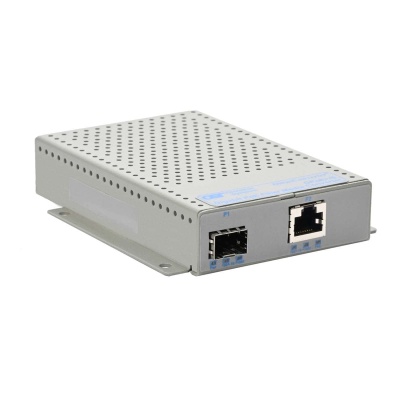

OmniConverter PoE SE SFP RJ-45
Lifetime Warranty
OmniConverter® FPoE+/SE : 1 x 10/100 Mbps RJ-45 PoE+ to 1 Gbps Fiber, 1 x SFP, DC 2-Pin Terminal, Extended Temperature -40 to 75 deg


Part Number

9399N-0-19Z

icons
Add to Quote

  • Description
  • Specifications
  • Documents

OmniConverter FPoE+/SE (Data Sheet)

OmniConverter FPoE+/SE (User Manual)

Media Converter Comparison App Note (The Application Note provides a cross reference from the Previous/Old models to the Enhanced models)

OmniConverter® FPoE+/SE : 1 x 10/100 Mbps RJ-45 PoE+ to 1 Gbps Fiber, 1 x SFP, DC 2-Pin Terminal, Extended Temperature -40 to 75 deg

Specifications

Description OmniConverter FPoE+/SE
10/100BASE-T to 100BASE-X Fiber Media Converter with PoE+
Standard Compliances

IEEE 802.3, IEEE 802.3af (15.40 watts max), IEEE 802.3at (30 watts max)

Regulatory Compliances

(Pending)

Safety: UL 62368-1, UL 60950-1,

            IEC 62368-1, IEC 60950-1,

            EN 62368-1, EN 60950-1,

            CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1,

            CE Mark, UKCA

EMC:   EN 55032/24 CE Emissions/Immunity,

            IEC 61000-6-4 Industrial Emissions,

            IEC 61000-6-2 Industrial Immunity

EMI:     CISPR 32, FCC 47 Part 15 Subpart B Class A

EMS:    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

            IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m,

            IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV (DC models),

            IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV (AC models),

            IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (DC models),

            IEC 61000-4-5 Surge: Power: 1 kV Line/Line; 2 kV Line/Gnd; Signal: 2 kV (AC models),

            IEC 61000-4-6 CS: Signal: 10 V,

            IEC 61000-4-8 (Magnetic Field) 30A/m,

            IEC 61000-4-11 (Voltage Dips, interrupts)

IP Rating: IP30D Protection

ACT: TAA, BAA,NDAA
Environmental RoHS, WEEE, REACH
PoE Power Modes IEEE Alterative A (Alt A)
Frame Size Up to 10,240 bytes
Port Types

Copper: 10/100BASE-T (RJ-45)

Fiber: 100BASE-X (SFP)
Cable Types

Copper: EIA/TIA 568A/B, Cat 5 UTP and higher

Fiber:     Multimode: 50/125, 62.5/125µm

              Single-mode: 9/125µm
AC Power Requirements
(Models with AC/DC Adapters)

100 - 240VAC/50 to 60Hz

0.31A @ 120VAC (typical)
DC Power Requirements
(Models with DC Terminals)

+/-46 to +/-57VDC;

0.59A @ 56VDC

2 Pin Terminal (isolated)
A minimum DC input voltage of 50VDC is required to guarantee 25.5 watts (802.3at) at the end of 100 meters of Cat 5 or better
Dimensions (W x D X H) 3.8” x 4.8” x 1.0” (96.5 mm x 121.9 mm x 25.4 mm)
Weight

Module Only: 1.0 lbs.; 453.6 grams

Module w/ Adapter: 1.8 lbs.; 816.4grams
Operating Temperature
(See Temperature Derating Table)

Commercial: 0 to 50°C

Wide: -40 to 60°C (-20°C AC cold start)

Storage: -40 to 80°C
Humidity 5 to 95% (non-condensing)
Altitude -100m to 4,000m
MTBF (hrs) Module: 681,000
AC/DC Adapter: 100,000
Warranty Lifetime warranty with 24/7/365 free Technical Support
