OC-3 / STM-1 Fiber-to-Fiber Converter / Transponder

FlexPoint® OC3FF

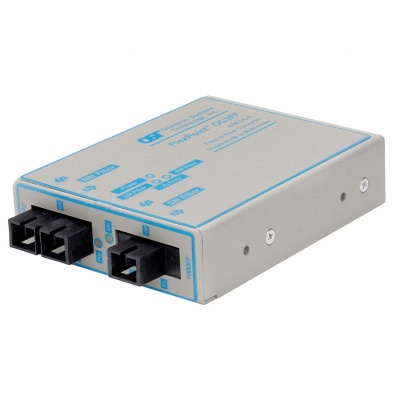

FlexPoint OC3FF SC SCSF
Lifetime Warranty
FlexPoint® OC3FF: OC-3/STM-1 to OC-3/STM-1, SC / SC, Multimode / Single-mode, 1310nm / 1310nm / 1550nm, 5km / 20km, Univ 100-240VAC, Commercial Temperature 0 to 50 deg C


Part Number

4650-2

icons
Add to Quote

  • Description
  • Specifications
  • Documents

FlexPoint OC3FF (Data Sheet)

FlexPoint OC3FF (User Manuals)

FlexPoint® OC3FF: OC-3/STM-1 to OC-3/STM-1, SC / SC, Multimode / Single-mode, 1310nm / 1310nm / 1550nm, 5km / 20km, Univ 100-240VAC, Commercial Temperature 0 to 50 deg C

Specifications

Description
 FlexPoint OC3FF
 Fiber-to-Fiber Converter/Transponder
Standard Compliances
 SONET OC-3, SDH STM-1
Regulatory Compliances

Safety:

EMI:

ACT:

UL, cUL, CE, UKCA

FCC Class A

TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Frame Size
 Supports unlimited frame sizes
Port Types
Fiber:
 OC-3 (ST, SC)
Cable Types
Fiber:
 Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
AC Power Requirements
AC Adapter:

100 - 240VAC/50 - 60Hz
0.04A @ 120VAC (typical)
DC Power Requirements

Voltage Range:
Nominal Voltage:
Nominal Power:
Barrel Connector
6.0 to 15.0VDC
9VDC
0.2A @ 9VDC
Molex Connector
4.75 to 5.25VDC
5VDC
0.5A @ 5VDC
Dimensions
W x D x H
 3.0" x 4.0" x 1.0" (76.2 mm x 101.6 mm x 25.4 mm)
Weight
 w/o AC Adapter:
6 oz. (170.1 grams)
Temperature
 Commercial:
Storage: 		    0 to 50°C
-40 to 80° C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
 w/o AC Adapter (-0):
w/ AC Adapter (-1):
w/ AC Adapter (-2): 		 2,600,000
250,000
100,000
Warranty
 Lifetime warranty with 24/7/365 free Technical Support
