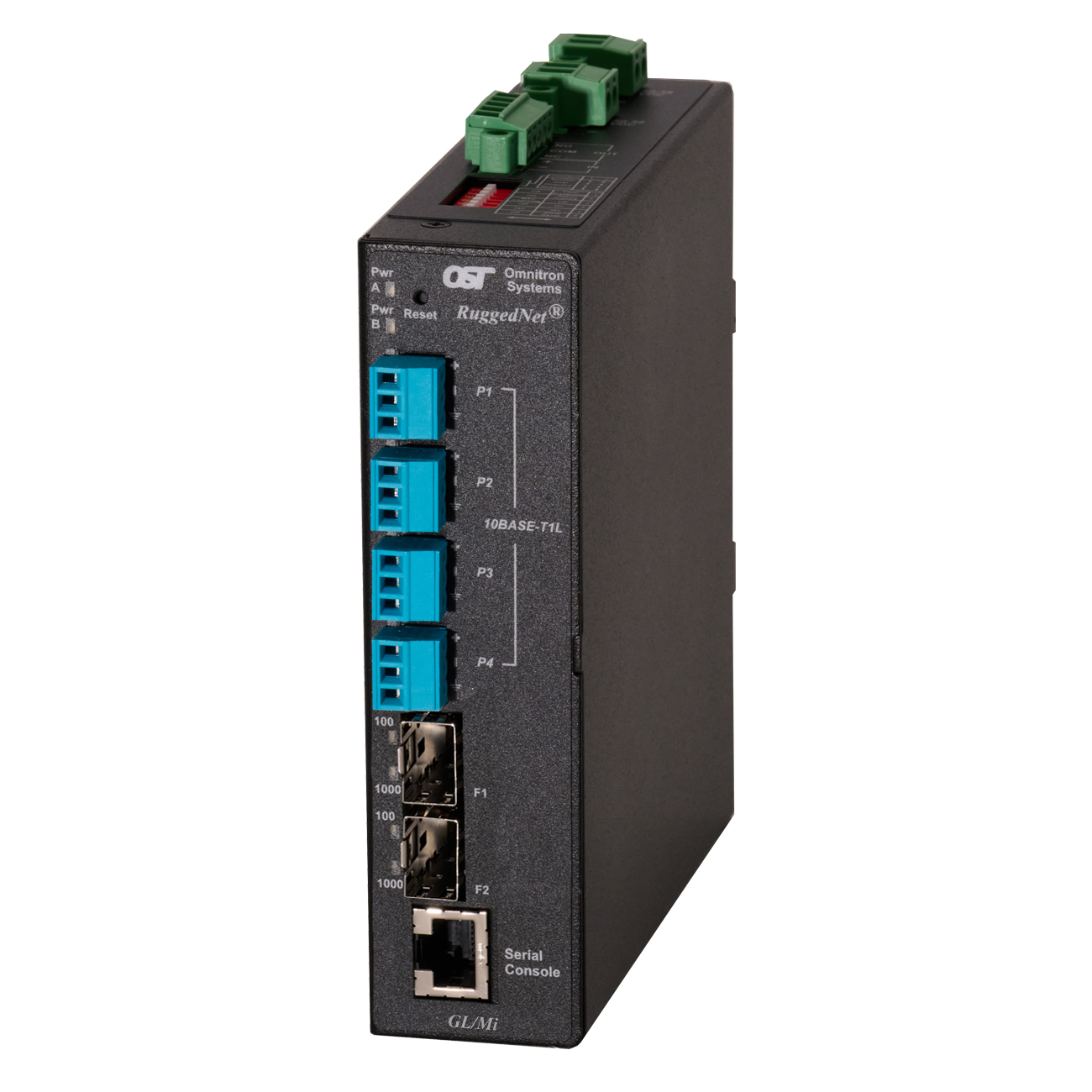

Managed Industrial Single Pair Ethernet Switch

RuggedNet® GL/Mi

10T/T1L to 100/1000 Fiber or 10/100/1000 Copper Uplinks

Managed Industrial Ethernet Switch

Safety:  UL 62368-1, UL 60950-1,

             IEC 62368-1, IEC 60950-1,

             EN 62368-1, EN 60950-1,

             CAN/CSA C22.2 No. 62368-1-14,

             CAN/CSA C22.2 No. 60950-1,

             CE Mark, UKCA

EMC:     EN 55032/24 CE Emissions/Immunity,

             IEC 61000-6-4 Industrial Emissions,

             IEC 61000-6-2 Industrial Immunity

EMI:      CISPR 32,

             FCC 47 Part 15 Subpart B Class A

EMS:    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

             IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m (on UTP cabling) and 20 V/m (on STP cabling)

             IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV,

             IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV,

             IEC 61000-4-6 CS: Signal: 10 V,

             IEC 61000-4-8 ( Magnetic Field), 30A/m,

             IEC 61000-4-11 (General Immunity in Industrial Environments)

IP Rating: IP40 Protection

ACT:     TAA,BAA, NDAA

IPv4 and IPv6 address

Web, Telnet, SSH, SNMPv1/v2c/v3

In-Band management via Ethernet port

Out-of-band management via serial port

10BASE-T1L: Up to 2,048 bytes

RJ-45:             Up to 10,240 bytes

SFP:                100M - up to 2,048 bytes

                        1000M - up to 10,240 bytes

10BASE-T1L: 3-Pin SPE Terminal connector or IEC 63171-2 SPE connector

RJ-45:            10/100/1000BASE-T

SFP:               10/100/1000BASE-T SGMII or 1000BASE-T SERDES Copper Transceiver,

                       100BASE-X or 1000BASE-X Fiber Transceiver

10BASE-T1L: Single-Pair Ethernet (SPE) cable, IEC 61156-13 (fixed) or IEC 61156-14 (flexible) 18AWG cable or better

RJ-45:            EIA/TIA 568A/B, Cat 5 UTP and higher

Fiber:              Multimode: 50/125, 62.5/125µm

                       Single-mode: 9/125µm

+12 to +58VDC;

0.66A @ 12VDC;

2 Pin Terminal (isolated)

2 form C Relay for Normally Open and Normally Closed Operation

110VDC/125VAC Maximum Voltage

2A Maximum Current

Extended: -40 to 75°C

Storage:    -40 to 80°C
