Unmanaged Industrial Gigabit IEEE 802.3BT 100W PoE Switch

RuggedNet® GHPoEBT/Si

RuggedNet GHPoE Si ST 4xRJ-45 2xDC

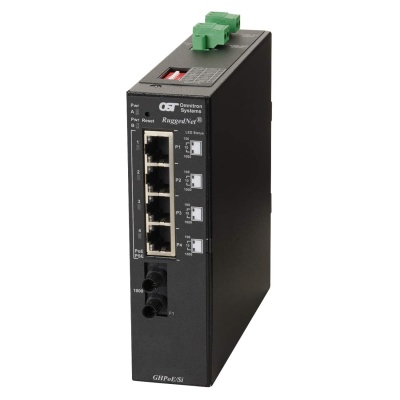

RuggedNet® GHPoEBT/Si: 4 x 10/100/1Gbps RJ-45 PoE++/HPoE 100W to 1 x 1 Gbps, ST, MMDF, 850, 220/550m, Unmanaged Ethernet Switch, DIN-Rail Mount, DC 2-Pin Terminal (x2), Extended Temperature Range


Part Number

3240B-0-14-2Z

icons
Add to Quote

  • Description
  • Specifications
  • Documents

RuggedNet GHPoEBT/Si (Data Sheet)

RuggedNet GHPoEBT/Si (User Manual)



Wall Mount Plate (User Manual)

9170-PS-480-Industrial-Power-Supply

9170-PS-960-Industrial-Power-Supply

RuggedNet® GHPoEBT/Si: 4 x 10/100/1Gbps RJ-45 PoE++/HPoE 100W to 1 x 1 Gbps, ST, MMDF, 850, 220/550m, Unmanaged Ethernet Switch, DIN-Rail Mount, DC 2-Pin Terminal (x2), Extended Temperature Range

Specifications

Description RuggedNet® GHPoEBT/Si (60/100W BT)
10/100/1000BASE-T with Gigabit Fiber or Copper Uplinks
Ruggedized Unmanaged IEEE 802.3bt PoE Ethernet Switch
Standard Compliances

IEEE 802.3,

IEEE 802.3af (15.40 watts max),

IEEE 802.3at (30 watts max),

IEEE 802.3bt (60 and 100 watts max)
Regulatory Compliances

Safety: UL 62368-1, UL 60950-1,

             IEC 62368-1, IEC 60950-1,

             EN 62368-1, EN 60950-1,

             CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1,

             CE Mark, UKCA

EMC:    EN 55032/24 CE Emissions/Immunity,

             IEC 61000-6-4 Industrial Emissions,

             IEC 61000-6-2 Industrial Immunity

EMI:     CISPR 32,

             FCC 47 Part 15 Subpart B Class A

EMS:    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

             IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m (on UTP cabling) and 20 V/m (on STP cabling)

             IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV,

             IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV,

             IEC 61000-4-6 CS: Signal: 10 V, IEC 61000-4-8 ( Magnetic Field), 30A/m,

             IEC 61000-4-11 (General Immunity in Industrial Environments)

IP Rating: IP40 Protection

ACT: TAA, BAA, NDAA
Environmental REACH, RoHS and WEEE
PoE Modes IEEE Alternate A (Alt A)
4-Pair
Frame Size Up to 10,240 bytes
Port Types

Copper: RJ-45: 10/100/1000BASE-T

Fiber:     Fixed: ST, SC, LC 1000BASE-X Fiber

               SFP:   10/100/1000BASE-T SGMII Copper Transceiver or

                          100BASE-X SGMII Fiber Transceiver or

                          1000BASE-X SERDES Fiber Transceivers
Cable Types
Copper: EIA/TIA 568A/B, Cat 5 UTP and higher
   Fiber:  Multimode: 50/125, 62.5/125μm
               Single-mode: 9/125μm
DC Power Requirements 60W BT Models:
+46 to +57VDC;
4.46A @ 56VDC
2 Pin Terminal (isolated)		 100W BT Models:
+46 to +57VDC;
7.31A @ 56VDC
2 Pin Terminal (isolated)
Dimensions
(W x D X H)		 1.5” x 5.5” x 5.5” (38.1 mm x 139.7 mm x 139.7 mm)
Weight 170 lbs.; 772 grams
Operating Temperature Extended:   -40 to 75°C
Storage:      -40 to 80°C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hrs) 273,000
Warranty 5 year product warranty with 24/7/365 free Technical Support



Power / Voltage Requirements and Specifications per IEEE

Description

IEEE 802.3af 15W PoE

IEEE 802.3at 30W PoE+

IEEE 802.3.bt 60W PoE

(Type 3)

IEEE 802.3bt 100W PoE

(Type 4)
Power Supply Voltage Range 46.0 to 57.0 VDC 51.0 to 57.0 VDC 51.0 to 57.0 VDC 53.0 to 57.0 VDC
Voltage Range at PSE port Output 44.0 to 56.0 VDC 50.0 to 56.0 VDC 50.0 to 56.0 VDC 52.0 to 56.0 VDC
Maximum Power from PoE/PSE port 15.4 watts 30 watts 60 watts 100 watts
Minimum Voltage at PoE/PD port input* 37.0 VDC 42.5 VDC 42.5 VDC 41.1 VDC
Minimum Power at PoE/PD port* 12.95 watts 25.5 watts 51 watts 71 watts
* at 100 meters using Cat5
