Managed Industrial Gigabit PoE/PoE+ Switch

RuggedNet® GPoE+/Mi

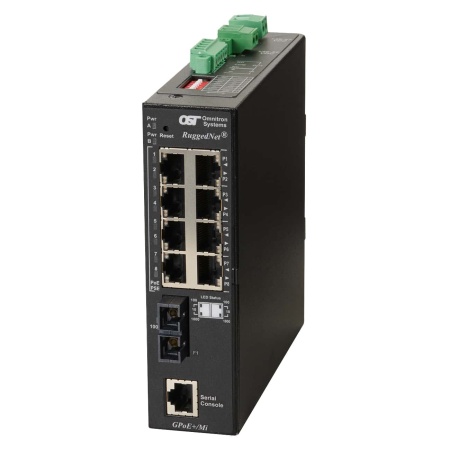

RuggedNet GPoE+ Mi SC 8xRJ-45 2xDC
RuggedNet® GPoE+/Mi: 8 x 10/100/1Gbps RJ-45 PoE+ 30W to 1 x 1 Gbps, SC, MMDF, 1310, 2km, Managed Ethernet Switch, DIN-Rail Mount, DC 2-Pin Terminal (x2), Extended Temperature Range


Part Number

9542-6-18-2Z

icons
Add to Quote

  • Description
  • Specifications
  • Documents

RuggedNet GPoE+/Mi (Datasheet)

RuggedNet GPoE+/Mi (Quick Start)



RuggedNet Command Line Interface (User Manual)

RuggedNet Web Interface (User Manual)

OmniConverter / RuggedNet 2.5 Hierarchical CLI (User Manual)



Wall Mount Plate (User Manual)

9170-PS-480 Industrial Power Supply (Datasheet)

9170-PS-240 Industrial Power Supply (Datasheet)

RuggedNet® GPoE+/Mi: 8 x 10/100/1Gbps RJ-45 PoE+ 30W to 1 x 1 Gbps, SC, MMDF, 1310, 2km, Managed Ethernet Switch, DIN-Rail Mount, DC 2-Pin Terminal (x2), Extended Temperature Range

Specifications

Description RuggedNet® GPoE+/Mi
10/100/1000BASE-T with Gigabit Fiber or 10/100/1000BASE-T Copper Uplinks
Ruggedized Managed PoE+ Ethernet Switch
Standard Compliances

IEEE 802.3, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1ax, IEEE 802.1w RSTP/MSTP

RFC 5424, RFC 4541, RFC 2710, IEC 624339-2,

SMTP, SNTP, RADIUS, TACACS+, IEEE 802.1x

IEEE 802.3af (15.40 watts max) and IEEE 802.3at (30 watts max)
Regulatory Compliances

Safety: UL 62368-1, UL 60950-1,

            IEC 62368-1, IEC 60950-1,

            EN 62368-1, EN 60950-1,

            CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1,

            CE Mark,

            UKCA

EMC:   EN 55032/24 CE Emissions/Immunity,

            IEC 61000-6-4 Industrial Emissions, IEC 61000-6-2 Industrial Immunity

EMI:    CISPR 32,

            FCC 47 Part 15 Subpart B Class A

EMS:   IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

            IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m (on UTP cabling) and 20 V/m (on STP cabling)

            IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV,

            IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV,

            IEC 61000-4-6 CS: Signal: 10 V,

            IEC 61000-4-8 ( Magnetic Field), 30A/m,

            IEC 61000-4-11 (General Immunity in Industrial Environments)

IP Rating: IP40 Protection

ACT: TAA, BAA, NDAA
Environmental REACH, RoHS and WEEE
PoE Modes IEEE Alternate A (Alt A)
Management

IPv4 and IPv6 address

Web, Telnet, SSH, SNMPv1/v2c/v3

In-Band management via Ethernet port

Out-of-band management via serial port
Frame Size Up to 10,240 bytes
Port Types

Copper: RJ-45: 10/100/1000BASE-T

Fiber:     Fixed: ST, SC, LC 1000BASE-X Fiber

               SFP:   10/100/1000BASE-T SGMII Copper Transceiver or

                          100BASE-X SGMII Fiber Transceiver or

                          1000BASE-X SERDES Fiber Transceivers

Serial:     RJ-45 RS-232
Cable Types
Copper: EIA/TIA 568A/B, Cat 5 UTP and higher
Fiber:    Multimode: 50/125, 62.5/125µm
              Single-mode: 9/125µm
Serial:  Category 3 and higher
DC Power Requirements 4 RJ-45 Ports:
+46 to +57VDC;
2.31A @ 56VDC
2 Pin Terminal (isolated)		 8 RJ-45 Ports:
+46 to +57VDC;
4.47A @ 56VDC
2 Pin Terminal (isolated)
Alarm Contact (Output) 2 form C Relay for Normally Open and Normally Closed Operation
110VDC/125VAC Maximum Voltage
2A Maximum Current
Alarm Sensor (Input) 2.0ma @ 3.3VDC Closure Detection
Dimensions
(W x D x H)		 1.5” x 5.5” x 5.5” (38.1 mm x 139.7 mm x 139.7 mm)
Weight 4 RJ-45 Ports:
1.70 lb.; 772 grams		 8 RJ-45 Ports:
1.77 lb.; 803 grams
Operating Temperature Extended: -40 to 75°C
Storage: -40 to 80°C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hrs) 260,000
Warranty
5 year product warranty with 24/7/365 free Technical Support



Power / Voltage Requirements and Specifications per IEEE

DescriptionIEEE 802.3af PoEIEEE 802.3at PoE+
Power Supply Voltage Range 46.0 to 57.0 VDC 51.0 to 57.0 VDC
Voltage Range at PSE port Output 44.0 to 56.0 VDC 50.0 to 56.0 VDC
Maximum Power from PoE/PSE port 15.4 watts 30 watts
Minimum Voltage at PoE/PD port input* 37.0 VDC 42.5 VDC
Minimum Power at PoE/PD port* 12.95 watts 25.5 watts
* at 100 meters using Cat5
