Unmanaged 60/100W IEEE 802.3bt PoE Gigabit Switches

OmniConverter® GHPoEBT/Sx

OmniConverter GHPoE Sx SC 4xRJ-45

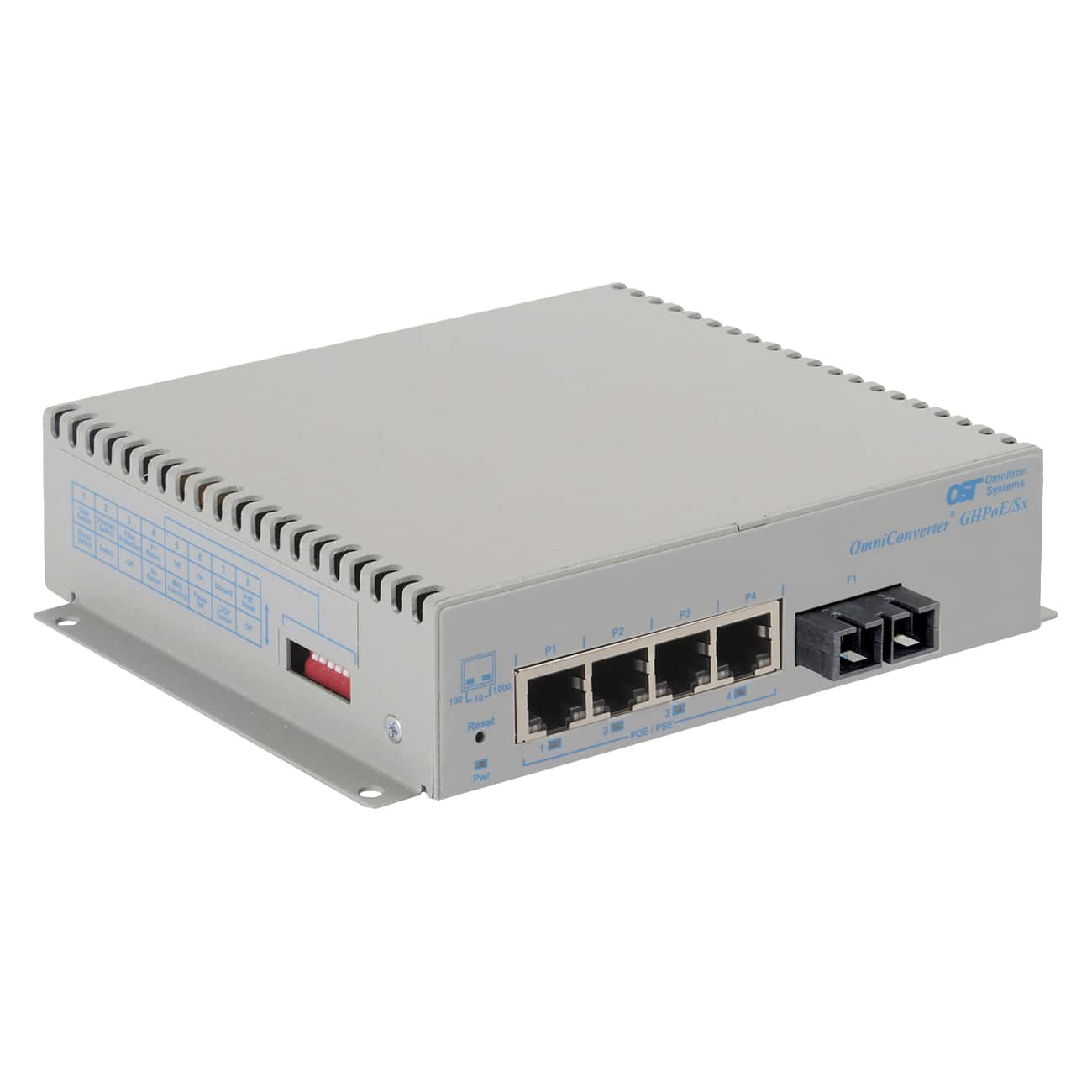

OmniConverter® GHPoEBT/Sx: 4 x 10/100/1Gbps RJ-45 PoE++/HPoE 100W to 1 x 1 Gbps, SC, SMDF, 1550, 140km, Unmanaged Ethernet Switch, Standalone/Wall-Mount, DC 2-Pin Terminal, Extended Temperature Range


Part Number

3043B-5-14-9Z

icons
Add to Quote

  • Description
  • Specifications
  • Documents

OmniConverter GHPoEBT/Sx (Datasheet)

OmniConverter GHPoEBT/Sx (User Manual)



9170-PS-480-Industrial-Power-Supply

9170-PS-960-Industrial-Power-Supply

OmniConverter® GHPoEBT/Sx: 4 x 10/100/1Gbps RJ-45 PoE++/HPoE 100W to 1 x 1 Gbps, SC, SMDF, 1550, 140km, Unmanaged Ethernet Switch, Standalone/Wall-Mount, DC 2-Pin Terminal, Extended Temperature Range

Specifications

Description
OmniConverter® GHPoEBT/Sx (60/100W BT)
10/100/1000BASE-T with Gigabit Fiber or Copper Uplinks
Unmanaged 6 Port IEEE 802.3bt PoE Ethernet Switch
Standard Compliances IEEE 802.3,
IEEE 802.3af (15.40 watts max),
IEEE 802.3at (30 watts max)
IEEE 802.3bt (60 and 100 watts max)
Regulatory Compliances

Safety: UL 62368-1, UL 60950-1,

             IEC 62368-1, IEC 60950-1,

             EN 62368-1, EN 60950-1,

             CAN/CSA C22.2 No. 62368-1-14,

             CAN/CSA C22.2 No. 60950-1,

             CE Mark, UKCA

EMC:    EN 55032/24 CE Emissions/Immunity,

             IEC 61000-6-4 Industrial Emissions,

             IEC 61000-6-2 Industrial Immunity

EMI:     CISPR 32,

             FCC 47 Part 15 Subpart B Class A

EMS:    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

             IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m,

             IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV (DC models),

             IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV (AC models),

             IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (DC models),

             IEC 61000-4-5 Surge: Power: 1 kV Line/Line; 2 kV Line/Gnd; Signal: 2 kV (AC models),

             IEC 61000-4-6 CS: Signal: 10 V,

             IEC 61000-4-8 (Magnetic Field) 30A/m,

             IEC 61000-4-11 (Voltage Dips, interrupts)

IP Rating: IP20 Protection

ACT: TAA, BAA, NDAA
Environmental REACH, RoHS and WEEE
PoE Modes IEEE Alternate A (Alt A)
4-Pair
Frame Size Up to 10,240 bytes
Port Types

Copper: RJ-45:  10/100/1000BASE-T

Fiber:     Fixed:  ST, SC, LC 1000BASE-X Fiber

               SFP:    10/100/1000BASE-T SGMII Copper Transceiver or

                           100BASE-X SGMII Fiber Transceiver or

                           1000BASE-X SERDES Fiber Transceivers
Cable Types
Copper: EIA/TIA 568A/B, Cat 5 UTP and higher
   Fiber:  Multimode: 50/125, 62.5/125μm
              Single-mode: 9/125μm
AC Power Requirements
(Models with AC/DC Adapters)

100 - 240VAC/50 - 60Hz

3.5A max at 115VAC

2.5A max at 230VAC
DC Power Requirements
(Models with DC Terminals)

60W Models:

+46 to +57VDC;

4.46A @ 56VDC

2 Pin Terminal (isolated)

100W Models:

+46 to +57VDC;

7.31A @ 56VDC

2 Pin Terminal (isolated)
Dimensions
(W x D x H)		 6.28” x 5.2” x 1.5” (159.5 mm x 132.1 mm x 38.1 mm)
Weight Module Only: 1.6 lbs.; 735 grams
Module with AC/DC Adapter: 3.7 lbs.; 1703 grams
Operating Temperature
(See Temperature Derating Table)		 Commercial: 0 to 50°C
Wide:          -40 to 60°C (-20°C AC cold start)
Extended:   -40 to 75°C - not available for models with AC/DC Adapters
Storage:      -40 to 80°C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hrs) Module Only: 277,000
AC/DC Adapter: 100,000
Warranty 5 year product warranty with 24/7/365 free Technical Support
2 year AC power adapter warranty



Power / Voltage Requirements and Specifications per IEEE

Description

IEEE 802.3af 15W PoE

IEEE 802.3at 30W PoE+

IEEE 802.3.bt 60W PoE

(Type 3)

IEEE 802.3bt 100W PoE

(Type 4)
Power Supply Voltage Range 46.0 to 57.0 VDC 51.0 to 57.0 VDC 51.0 to 57.0 VDC 53.0 to 57.0 VDC
Voltage Range at PSE port Output 44.0 to 56.0 VDC 50.0 to 56.0 VDC 50.0 to 56.0 VDC 52.0 to 56.0 VDC
Maximum Power from PoE/PSE port 15.4 watts 30 watts 60 watts 100 watts
Minimum Voltage at PoE/PD port input* 37.0 VDC 42.5 VDC 42.5 VDC 41.1 VDC
Minimum Power at PoE/PD port* 12.95 watts 25.5 watts 51 watts 71 watts
* at 100 meters using Cat5
