Smart Street Light Networks Using PoE

Municipalities across the country are transforming traditional street lighting into intelligent infrastructure platforms. Modern smart street light networks combine energy-efficient LED luminaires with IP-based controls, environmental sensors, traffic monitoring devices, public safety cameras, and wireless access points. These devices rely on secure network connectivity and reliable power to enable centralized management, adaptive dimming, outage detection, asset monitoring, and data collection.



Power over Ethernet (PoE) has become a preferred deployment method for smart street lighting because it delivers both power and data over a single copper cable. This simplifies installation, reduces conduit requirements, minimizes electrical work, and allows remote devices such as LED drivers, cameras, and IoT sensors to be centrally managed. Fiber optic cabling is typically used for long-distance backbone connectivity between control cabinets, intersections, and network aggregation points, while copper Ethernet distributes power and data locally to each smart device.



For City Maintenance and Operation, upgrading to a smart lighting infrastructure meant building a resilient fiber-and-copper network capable of supporting high-power LED fixtures and future smart city applications.



In real-world deployments, Omnitron typically sees 6–8 smart poles connected per RuggedNet switch, with fiber uplinks extending back to aggregation points.  That said, PoE isn’t always a perfect fit out of the box. Power budgeting, voltage drop, and environmental exposure all need to be carefully considered during design.



The Challenge

City Maintenance and Operation needed to modernize aging high-pressure sodium street lights and convert them to energy-efficient smart LED fixtures with centralized monitoring and control. While the benefits were clear—lower energy consumption, improved visibility, predictive maintenance, and enhanced public safety—the deployment presented several technical challenges.



Long Distance Network Extension

Street lights were spread across miles of roadway, boulevards, and intersections. Fiber was required to extend network connectivity between aggregation cabinets and the city’s Network Operations Center (NOC). From each cabinet, copper Ethernet had to reliably deliver power and data to poles positioned up to 100 meters away. The system needed to maintain high bandwidth to support not only lighting controls but also IP cameras and sensors mounted on select poles.



Extending High-Power PoE

Next-generation LED street lights and integrated devices required higher power levels than traditional PoE could provide. Some fixtures with embedded cameras, environmental sensors, or wireless radios required up to 90–100 watts of power. The city required a solution compliant with IEEE 802.3bt standards to ensure safe and reliable high-power delivery.



Using Existing Poles and Infrastructure

The city wanted to leverage existing light poles and conduit infrastructure to minimize civil engineering costs. This required compact, hardened switching equipment capable of fitting into control cabinets or pole-mounted enclosures without extensive redesign.



Upgrading to Smart LED Lighting with Centralized Management

The new system required secure remote configuration, VLAN segmentation, traffic prioritization, and real-time monitoring. The networking equipment needed to support advanced Layer 2 management features while remaining easy to deploy and maintain.



Extended Temperature and Outdoor Environment

Street-side cabinets are exposed to extreme temperatures, vibration, moisture, and electrical noise. Equipment needed industrial temperature ratings and hardened designs to ensure reliable year-round operation in both hot summers and freezing winters.





The Solution

To address these challenges, City Maintenance and Operation deployed Omnitron’s RuggedNet® 10G 4-Port Managed PoEBT Switches within street-level control cabinets.



The RuggedNet 10G PoEBT switch provides:

• • Four 10/100/1000BASE-T PoE++ (IEEE 802.3bt) ports delivering up to 100W per port
  • 10Gigabit fiber uplinks for high-speed backbone connectivity
  • Advanced Layer 2 management features
  • Industrial temperature operation
  • Ruggedized metal enclosure for hardened deployments

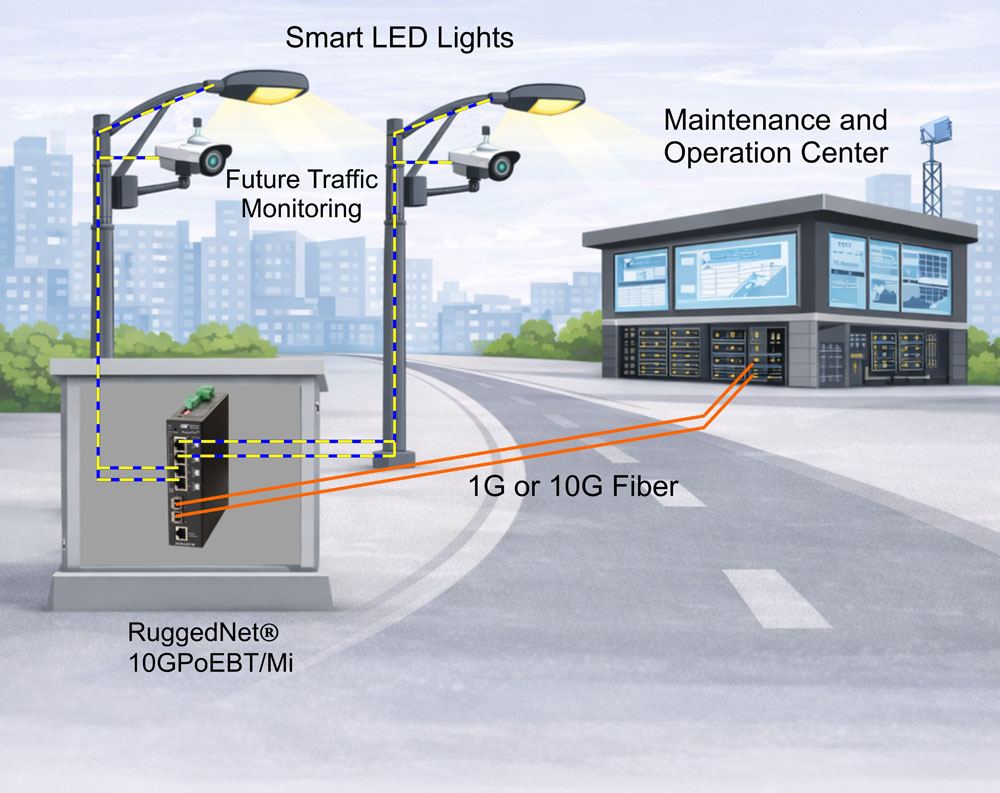

Fiber uplinks connected each street cabinet back to the city’s aggregation network, ensuring long-distance, high-bandwidth communication. From the RuggedNet switch, copper Ethernet cables delivered both data and up to 100W PoE directly to smart LED luminaires, pole-mounted cameras, and environmental sensors.



The managed capabilities of the RuggedNet switch enabled network administrators to configure VLANs for lighting, security, and sensor traffic segmentation. SNMP monitoring, link fault detection, and remote power cycling capabilities improved operational visibility and reduced field service calls. High-speed 10G fiber uplinks ensured scalability for future expansion, including additional IoT devices or wireless backhaul equipment.



The compact form factor allowed installation inside existing pole-base cabinets, eliminating the need for new enclosures. With hardened industrial components and extended temperature ratings, the switches operated reliably in challenging outdoor conditions.



The Result

Following deployment, City Maintenance and Operation achieved measurable operational and performance improvements:



Energy-efficient smart LED fixtures reduced power consumption while improving roadway illumination quality. Centralized monitoring enabled real-time outage detection and remote dimming schedules, lowering maintenance costs and improving response times.



The RuggedNet 10G PoEBT switches delivered consistent high-power PoE to advanced lighting and camera systems without the need for separate electrical circuits. Fiber backbone connectivity extended network reach across long distances while maintaining high bandwidth for video and sensor data.



The managed switching environment improved network visibility, security segmentation, and system reliability. Technicians could remotely troubleshoot devices, reducing truck rolls and operational expenses.



The solution also created a scalable foundation for future smart city applications, including traffic monitoring, public Wi-Fi, and environmental sensing.



Conclusion

PoE-based smart street lighting networks offer a scalable and efficient solution for modern infrastructure. However, success ultimately depends on proper network design, realistic power calculations, and selecting equipment built to handle real-world environmental conditions—not just lab specs.   By deploying Omnitron’s RuggedNet® 10G 4-Port Managed PoEBT Switches, the City Maintenance and Operation department successfully transformed its legacy street lighting infrastructure into a high-performance, intelligent network platform.



Why Omnitron Systems

City Maintenance and Operation selected Omnitron for several key reasons:



Proven Reliability
Omnitron’s RuggedNet product line is designed specifically for mission-critical and outdoor deployments. The industrial design and robust power delivery ensured dependable operation in harsh municipal environments.



RuggedNet Switch Environmental & Protection Capabilities

Omnitron RuggedNet switches are specifically designed for outdoor and industrial environments where reliability is critical. These switches provide enhanced surge protection and electromagnetic immunity, which becomes especially important when equipment is mounted on exposed street poles.

• • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m (UTP), 20 V/m (STP)
  • IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  • IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  • IEC 61000-4-6 CS: Signal: 10 V
  • IEC 61000-4-8 Magnetic Field: 30 A/m
  • IEC 61000-4-11 Industrial Immunity
  • IP Rating: IP40 Protection

Technical Features
The ability to deliver up to 100W per port under IEEE 802.3bt compliance was essential for powering advanced LED fixtures and multi-function smart poles. The combination of 10G fiber uplinks and managed Layer 2 features provided both performance and control in a single platform.



Standards Compliance
Compliance with IEEE Ethernet and PoE standards ensured interoperability with a wide range of third-party LED drivers, cameras, and smart city devices. This standards-based approach protected the city’s long-term investment.



Pre- and Post-Sales Support
Omnitron’s technical team worked closely with the city’s engineers during network design, power budgeting, and deployment planning. Post-installation support and responsive technical assistance reinforced confidence in the solution.



Made in the USA
Manufactured in the United States, Omnitron products met the city’s procurement preferences for domestic sourcing, quality assurance, and long-term supply stability.
