Unmanaged PoE/PoE+ Gigabit Ethernet Switch

OmniConverter® GPoE+/SX

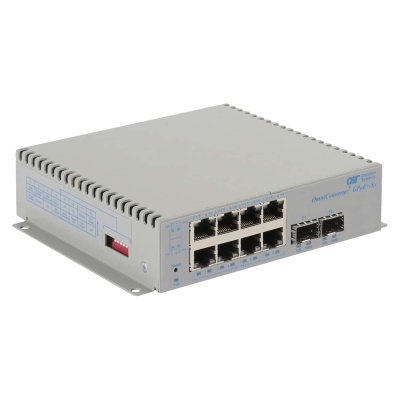

OmniConverter GPoE+ Sx 2xSFP 8xRJ-45
OmniConverter® GPoE+/SX: 8 x 10/100/1Gbps RJ-45 PoE+ 30W to 2 x 1 Gbps, SFP, Fiber type depends on SFP, SFP-Dependent, Distance depends on SFP, Unmanaged Ethernet Switch, Standalone/Wall-Mount, US 100-240VAC, Commercial/Enterprise Temperature Range


Part Number

9459-0-28-1

icons
Add to Quote

  • Description
  • Specifications
  • Documents

OmniConverter GPoE+/Sx (Datasheet)

OmniConverter GPoE+/SX Legacy 4-Port (User Manual)

OmniConverter GPoE+/Sx 4 and 8-Port (User Manual)



9170-PS-480 Industrial Power Supply (Datasheet)

9170-PS-240 Industrial Power Supply (Datasheet)

OmniConverter® GPoE+/SX: 8 x 10/100/1Gbps RJ-45 PoE+ 30W to 2 x 1 Gbps, SFP, Fiber type depends on SFP, SFP-Dependent, Distance depends on SFP, Unmanaged Ethernet Switch, Standalone/Wall-Mount, US 100-240VAC, Commercial/Enterprise Temperature Range

Specifications

Description OmniConverter® GPoE+/SX
10/100/1000BASE-T with Gigabit Fiber or 10/100/1000BASE-T Copper Uplinks
Unmanaged 6 or 10 Port PoE/PoE+ Gigabit Ethernet Switch
Standard Compliances

IEEE 802.3,

IEEE 802.3af (15.40 watts),

IEEE 802.3at (30 watts)
Regulatory Compliances

Safety: UL 62368-1, UL 60950-1,

             IEC 62368-1, IEC 60950-1,

             EN 62368-1, EN 60950-1,

             CAN/CSA C22.2 No. 62368-1-14,

             CAN/CSA C22.2 No. 60950-1,

             CE Mark, UKCA

EMC:    EN 55032/24 CE Emissions/Immunity,

             IEC 61000-6-4 Industrial Emissions,

             IEC 61000-6-2 Industrial Immunity

EMI:     CISPR 32,

             FCC 47 Part 15 Subpart B Class A

EMS:    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

             IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m,

             IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV (DC models),

             IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV (AC models),

             IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (DC models),

             IEC 61000-4-5 Surge: Power: 1 kV Line/Line; 2 kV Line/Gnd; Signal: 2 kV (AC models),

             IEC 61000-4-6 CS: Signal: 10 V,

             IEC 61000-4-8 (Magnetic Field) 30A/m,

             IEC 61000-4-11 (Voltage Dips, interrupts)

IP Rating: IP20 Protection

ACT: TAA, BAA, NDAA
Environmental REACH, RoHS and WEEE
PoE Mode IEEE Alternate A (Alt A)
Frame Size Up to 10,240 bytes
Port Types

Copper: RJ-45: 10/100/1000BASE-T

Fiber:     Fixed:  ST, SC, LC 1000BASE-X Fiber

               SFP:   10/100/1000BASE-T SGMII Copper Transceiver or

                          100BASE-X SGMII Fiber Transceiver or

                          1000BASE-X SERDES Fiber Transceivers
Cable Types

 Copper: EIA/TIA 568A/B, Cat 5 UTP and higher

Fiber:     Multimode: 50/125, 62.5/125µm

               Single-mode: 9/125µm
AC Power Requirements
(Models with AC/DC Adapters)

100 - 240VAC/50 - 60Hz

3.5A max at 115VAC

2.5A max at 230VAC
DC Power Requirements
(Models with DC Terminals)

4 RJ-45 Ports:

+46 to +57VDC;

2.31A @ 56VDC

2 Pin Terminal (isolated)

8 RJ-45 Ports:

+46 to +57VDC;

4.47A @ 56VDC

2 Pin Terminal (isolated)
Dimensions
(W x D x H)		 6.28” x 5.2” x 1.5” (159.5 mm x 132.1 mm x 38.1 mm)
Weight

 4 RJ-45 Ports:

Module Only: 1.5 lbs. (677 grams)

Module with AC/DC Adapter: 3.6 lbs. (1645 grams)

8 RJ-45 Ports:

Module Only: 1.7 lbs. (755 grams)

Module with AC/DC Adapter: 3.8 lbs. (1723 grams)
Operating Temperature
(See Temperature Derating Table)		 Commercial: 0 to 50°C
Wide: -40 to 60°C (-20°C AC cold start)
Extended: -40 to 75°C - not available for models with AC/DC Adapters
Storage: -40 to 80°C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hrs) Module Only: 285,000
AC/DC Adapter: 100,000
Warranty 5 year product warranty with 24/7/365 free Technical Support
2 year AC power adapter warranty



Power / Voltage Requirements and Specifications per IEEE

DescriptionIEEE 802.3af PoEIEEE 802.3at PoE+
Power Supply Voltage Range 46.0 to 57.0 VDC 51.0 to 57.0 VDC
Voltage Range at PSE port Output 44.0 to 56.0 VDC 50.0 to 56.0 VDC
Maximum Power from PoE/PSE port 15.4 watts 30 watts
Minimum Voltage at PoE/PD port input* 37.0 VDC 42.5 VDC
Minimum Power at PoE/PD port* 12.95 watts 25.5 watts
* at 100 meters using Cat5



AC/DC Adapter Temperature Derating - Total Available Wattage to RJ-45 Ports
Model RJ-45 Ports Watts Required 40°C 50°C 60°C
GPoE+/Sx 4 120 watts Full Power Full Power 115 watts
8 240 watts Full Power 175 watts 115 watts
The AC/DC Adapter Temperature derating table is not applicable to models with DC Terminal (see Ordering table for Direct DC -9 option). The DC Terminal models will provide full PoE power over the operating temperature range of the module as long as the DC input voltage meets the requirements stated in the specification table.
