OmniConverter® GPoE/S and GPoE+/S

10/100/1000 Media Converter with Power over Ethernet (PoE or PoE+)



Features


  • Multi-port PoE media converter
  • 10/100/1000BASE-T copper to 1000BASE-X or 100BASE-X fiber media converter
  • Supports 100BASE-X or 1000BASE-X standard, CWDM and DWDM SFP transceivers
  • Supports frame sizes up to 10,240 bytes
  • The GPoE/S supports IEEE 802.3af PoE on one or two RJ-45 copper ports
  • The GPoE+/S supports IEEE 802.3at PoE+ on one or two RJ-45 copper ports
  • Multiple port configurations:
    • 2 Port Device: 1 Fiber + 1 RJ-45
    • 3 Port Device: 2 Fiber + 1 RJ-45
    • 3 Port Device: 1 Fiber + 2 RJ-45
    • 4 Port Device: 2 Fiber + 2 RJ-45
  • Redundant protected fiber link option (using dual SFP transceivers)
  • Compatible with legacy pre-IEEE standard powered devices
  • Configurable PoE power reset
  • Available in AC and DC models
  • Integrated wall mount brackets
  • Commercial (0º to 50ºC), wide (-40º to 60ºC) and extended (-40º to 75ºC) operating temperature ranges
  • Made in the USA
  • Lifetime Warranty and free 24/7 Technical Support




Description


The OmniConverter GPoE/S and GPoE+/S are multi-port media converters that convert 10/100/1000BASE-T copper to 1000BASE-X or 100BASE-X fiber and support Power-over-Ethernet (PoE and PoE+). Classified as Power Sourcing Equipment (PSE), they can provide power to one or two Powered Devices (PDs) using standard UTP cables that carry the Ethernet data.

OmniConverter PoE media converters provide network distance extension with fiber optic cabling, and function as a PoE injectors.

The GPoE/S provides up to 15.40W PoE (IEEE 802.3af) per RJ-45 port, and the GPoE+/S provides up to 30W PoE+ (IEEE 802.3at) per RJ-45 port. All OmniConverter models support frame sizes up to 10,240 bytes.

Models with two Small Form Pluggable (SFP) fiber receptacles support redundant fiber uplinks for critical applications that require protection and sub 50ms restoration in the event of a fiber failure. The second fiber port can also be used to cascade multiple media converters, or as another switch port.

Configurable features include link modes and a PoE power reset function that enables a PD device to be re-initialized remotely, eliminating the need for costly truck rolls to remote PD sites. When a problem with a PD is identified, the fiber port on a managed switch can be shut down or disconnected, triggering the PoE power reset function on the OmniConverter. The PoE power to the PD is disabled for 2 seconds when a loss of receive fiber link is detected by the OmniConverter.

Link modes can be configured to propagate loss-of-link faults to managed devices, immediately notifying administrators of network outages.

OmniConverter media converters support fixed-fiber connectors and 100Mbps or 1000Mbps SFP transceiver receptacles, enabling easy adaptability to different fiber types, distances and wavelengths. They support SFPs for multimode and single-mode dual fiber; and single-mode single-fiber, in standard, CWDM and DWDM wavelengths.

The compact standalone OmniConverter media converters can be tabletop mounted, wall mounted, or DIN-rail mounted using an optional DIN-rail mounting kit. They can also be mounted on a 1U 19” rack-mount shelf. They are available with DC input power via terminal connectors or external 100 to 240 VAC power adapters.





Examples

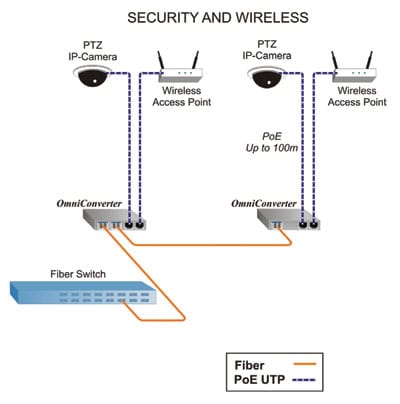

This example shows a combined security and fiber-to-desk application.

PoE and PoE+ IP surveillance cameras and Wireless Access Points are installed throughout a large facility. A Network switch with fiber ports is used to distribute a fiber link from a control room to a OmniConverter media converter with dual fiber ports. The second fiber port on the OmniConverter is used to cascade the fiber to the next location, where an OmniConverter media converter with one fiber port terminates the fiber.

The OmniConverter media converters provide Power over Ethernet (PoE) over UTP cables to an IP camera and Wireless Access Point at each location, each of which can be located up to 100m from the media converter.

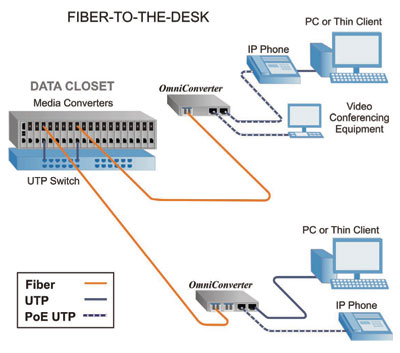

A fiber-to-the-desk network is deployed to leverage the security and distance benefits of fiber.

In the main data closet, iConverter, miConverter or FlexPoint media converters can be installed in high-density rack-mount chassis to provide reliable and cost-effective fiber distribution from existing copper network equipment.

Fiber optic cables run to each office, where they are terminated by OmniConverter media converters. The OmniConverter media converters convert fiber to copper and, provide data and power to desktop devices such as IP phones and video conferencing equipment. They automatically disable PoE power to non-PoE desktop devices such as PCs and laptops.

Combined App gpoes





Specifications


Description
OmniConverter GPoE/S
10/100/1000BASE-T to 1000BASE-X or 100BASE-X Fiber
Media Converter with PoE
OmniConverter GPoE+/S
10/100/1000BASE-T to 1000BASE-X or 100BASE-X Fiber
Media Converter with PoE+
Standard Compliances
IEEE 802.3,
IEEE 802.3af (15.40 watts max)
IEEE 802.3,
IEEE 802.3af (15.40 watts max), IEEE 802.3at (30 watts max)
PoE Supported Modes
IEEE Alternate A (Alt A), IEEE Alternate B (Alt B), Cisco Legacy and High Cap
Regulatory Compliances
(* Pending)

Safety: UL 62368-1*,

             UL 60950-1,

             IEC 62368-1*,

             IEC 60950-1,

             EN 62368-1*,

             EN 60950-1,

             CAN/CSA C22.2 No. 62368-1-14*,

             CAN/CSA C22.2 No. 60950-1,

             CE Mark

EMC:    EN 55032/EN 55024 CE Emissions/Immunity

EMI:      CISPR 32,

             FCC 47 Part 15 Subpart B Class A

EMS:    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

             IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m,

             IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV (DC models),

             IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV (AC models),

             IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (DC models),

             IEC 61000-4-5 Surge: Power: 1 kV Line/Line; 2 kV Line/Gnd; Signal: 2 kV (AC models),

             IEC 61000-4-6 CS: Signal: 3 V,

             IEC 61000-4-8 ( Magnetic Field) 30A/m,

             IEC 61000-4-11 (Voltage Dips, interrupts)

IP Rating: IP20 Protection
Environmental
RoHS, WEEE, REACH
Frame Size
Up to 10,240 bytes
Port Types:
Copper: 10/100/1000BASE-T (RJ-45)
Fiber:    100BASE-X (SFP)
              1000BASE-X (ST, SC, SFP)
             1000BASE-BX (SC, SFP)
Cable Types
Copper: EIA/TIA 568A/B, Cat 5 UTP and higher
Fiber:     Multimode: 50/125, 62.5/125µm
              Single-mode: 9/125µm
AC Power Requirements
(Models with AC/DC Adapters)

1 RJ-45 Port

100 - 240VAC/47 to 63Hz

0.21A @ 120VAC (typical)

1 RJ-45 Port

100 - 240VAC/47 to 63Hz

0.34A @ 120VAC (typical)

2 RJ-45 Ports

100 - 240VAC/50 - 60Hz

0.36A @ 120VAC (typical)

2 RJ-45 Ports

100 - 240VAC/50 - 60Hz

0.63A @ 120VAC (typical)
DC Power Requirements
(Models with DC Terminals)

1 RJ-45 Port

+/-44 to +/-57VDC;

0.46A @ 48VDC

3 Pin Terminal (isolated)

1 RJ-45 Port

+/-44 to +/-57VDC;

0.74A @ 48VDC

3 Pin Terminal (isolated)

2 RJ-45 Ports

+/-44 to +/-57VDC;

0.79A @ 48VDC

3 Pin Terminal (isolated)

2 RJ-45 Ports

+/-44 to +/-57VDC;

1.37A @ 48VDC

3 Pin Terminal (isolated)
A minimum DC input voltage of 50VDC is required to guarantee 25.5 watts (for 802.3at) at the end of 100 meters on Cat 5 cable or better.
Dimensions (W x D x H) 4.5” x 6.0” x 1.0” (114.3 mm x 152.4 mm x 25.4 mm)
Weight Module Only: 1.1 lbs. (498.9 grams)
Module w/ Adapter: 1.6 lbs. (725.7 grams)		 Module Only: 1.1 lbs. (498.9 grams)
Module w/ Adapter: 2.3 lbs. (1043.3 grams)
Operating Temperature
(See Temperature Derating Table)		 Industrial: -40 to 75°C (-20°C AC cold start)
Storage: -40 to 80°C
Humidity 5 to 95% (non-condensing)
Altitude -100m to 4,000m
MTBF (hours) Module Only: 474,000
AC/DC Adapter: 100,000		 Module Only: 474,000
AC/DC Adapter: 100,000
Warranty Lifetime warranty with 24/7/365 free Technical Support

Power / Voltage Requirements and Specifications per IEEE
Description IEEE 802.3af PoE IEEE 802.3at PoE+
Power Supply Voltage Range 46.0 to 57.0 VDC 51.0 to 57.0 VDC
Voltage Range at PSE port Output 44.0 to 56.0 VDC 50.0 to 56.0 VDC
Maximum Power from PoE/PSE port 15.4 watts 30 watts
Minimum Voltage at PoE/PD port input* 37.0 VDC 42.5 VDC
Minimum Power at PoE/PD port* 12.95 watts 25.5 watts
* at 100 meters using Cat5




Ordering


OmniConverter GPoE/S IEEE 802.3af 15W Models
Fiber TypeDistanceConnector Type

Tx / Rx

Lambda

(nm)

Min. Tx

Power

(dBm)

Max. Tx

Power

(dBm)

Min. Rx

Power

(dBm)

Max. Rx

Power

(dBm)

Min

Attenuation

(dB)

Link
Budget

(dB)

STSCSFP
MM 220/550m1 9400-0-ypt 9402-0-ypt - 850/850 -10 -4 -17 -3 - 7
SM 12km 9401-1-ypt 9403-1-ypt - 1310/1310 -9.5 -3 -19.5 -3 - 10
SM 34km 9401-2-ypt 9403-2-ypt - 1310/1310 -5 0 -23 -3 3 18
SM 80km - 9403-3-ypt - 1550/1550 -5 0 -23 -3 3 18
SM 110km - 9403-4-ypt - 1550/1550 0 5 -24 -3 8 24
SM 140km - 9403-5-ypt - 1550/1550 2 5 -28 -8 13 30
MM-SF2 550m - 9410-0-ypt - 1310/1550 -9 -3 -18 -3 - 9
MM-SF2 550m - 9411-0-ypt - 1550/1310 -9 -3 -18 -3 - 9
SM-SF2 20km - 9410-1-ypt - 1310/1550 -9.5 -3 -20 -3 - 10.5
SM-SF2 20km - 9411-1-ypt - 1550/1310 -9.5 -3 -20 -3 - 10.5
SM-SF2 40km - 9410-2-ypt - 1310/1550 -3 0 -20 -3 3 17
SM-SF2 40km - 9411-2-ypt - 1550/1310 -3 0 -20 -3 3 17
SFP(x1) - -   - 9419-0-ypt - - - - - - -
SFP(x2) -  -  - 9419-1-ypt - - - - - - -
162.5/125µm, 100/140µm multimode fiber up to 220m. 50/125µm multimode fiber up to 550m.
2When using single-fiber (SF) models, the Tx wavelength on one end has to match the Rx wavelength on the other.
MM = Multimode, SM = Single-mode, DF = Dual Fiber, SF = Single-fiber

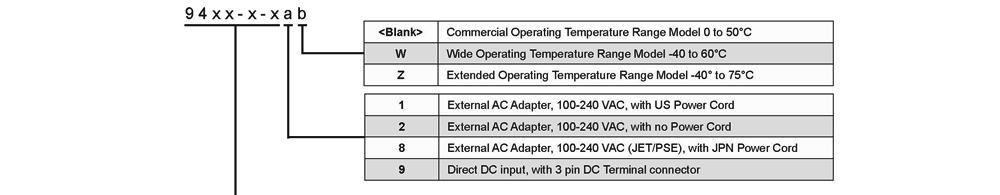

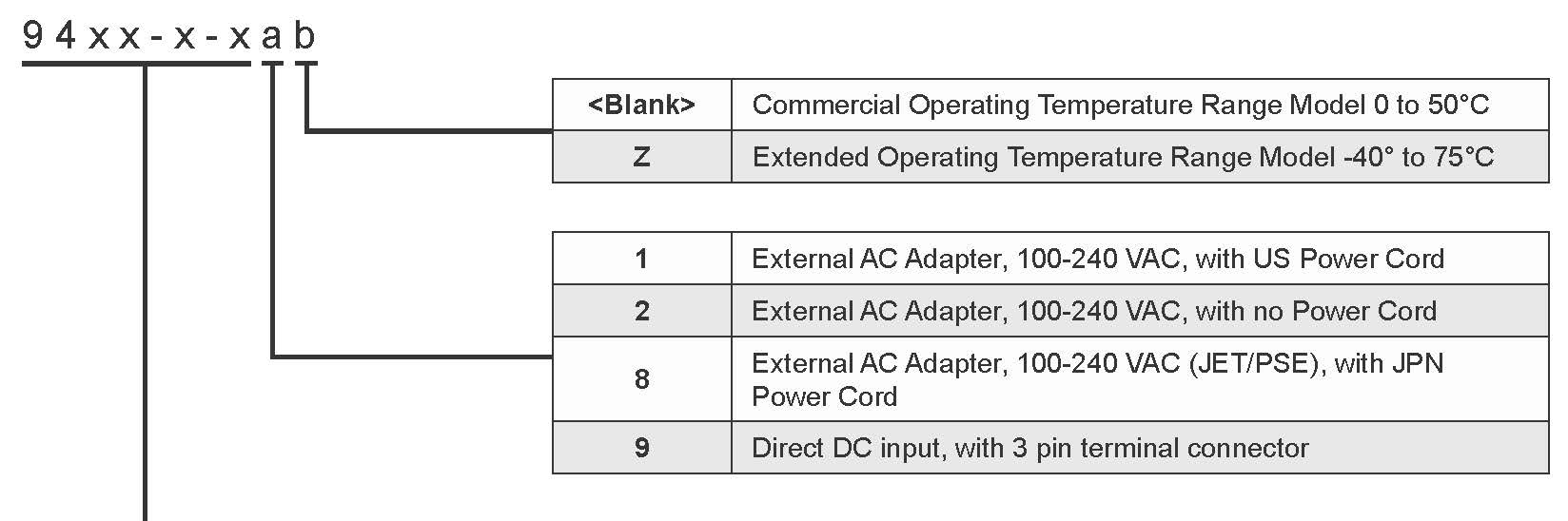

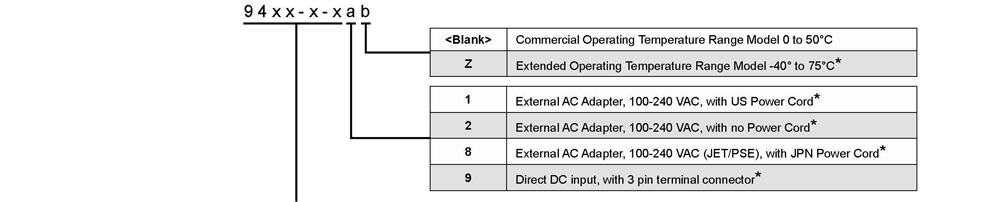

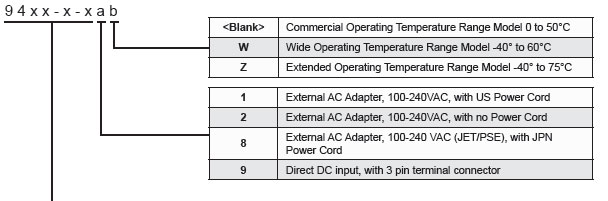

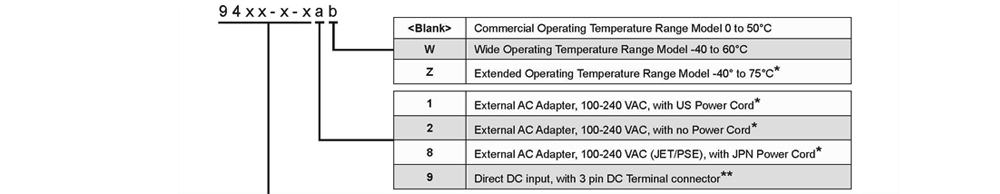

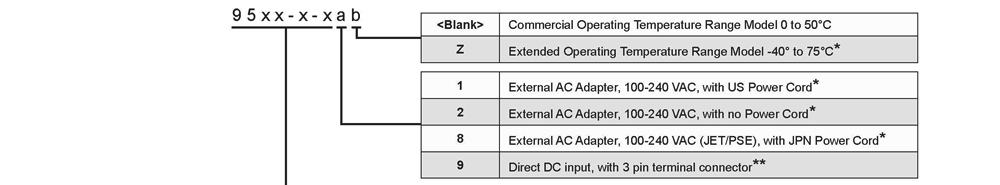

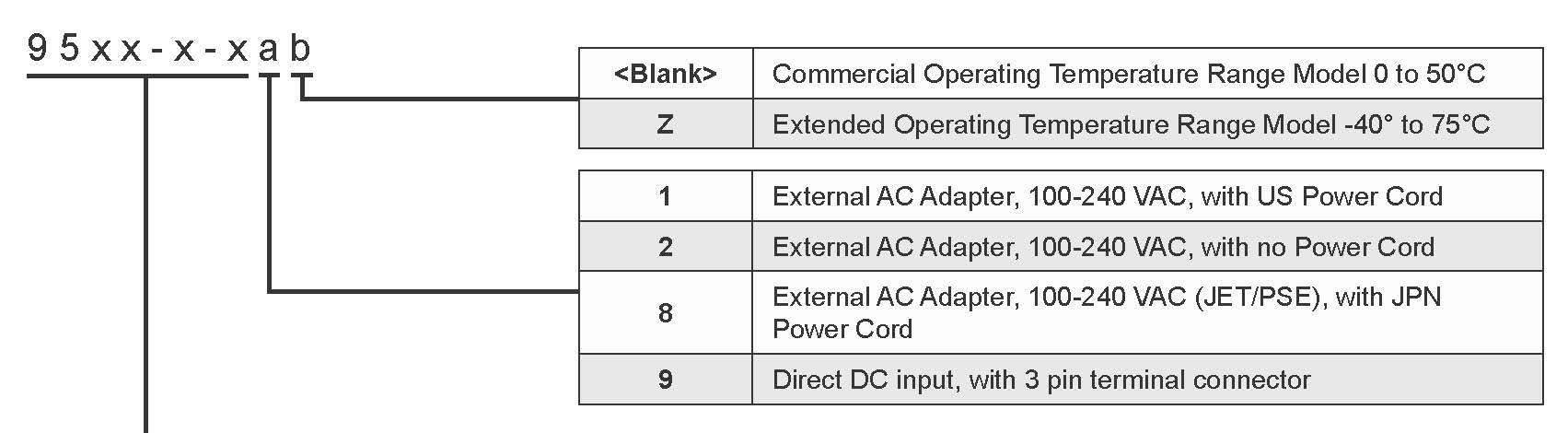

Base Model Number: 94xx-x-ypt
Select the model from ordering table above.
Add # of RJ-45 ports (y), power option (p) and operating temperature range (t) to the model type selected.
Number of RJ-45 Ports (y):
1 = One RJ-45 Ports 2 = Two RJ-45 Ports
Power Options (p):
1 = External AC/DC Adapter, 100 - 240 VAC included, with US Power Cord 8 = External AC/DC Adapter, 100 - 240 VAC included, with Japanese Power Cord
2 = External AC/DC Adapter, 100 - 240 VAC included, No Power Cord 9 = Direct DC 3 pin terminal connector, no AC/DC power adapter
Operating Temperature Options (t):
<leave blank> = Commercial temperature (0 to 50°C) W = Wide temperature (-40 to 60°C)
Z = Extended temperature (-40 to 75°C)
 Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Optical Transceivers web page.



AC/DC Adapter Temperature Derating
Total Available Wattage to RJ-45 Ports
Model RJ-45 Ports Watts Required 40°C 50°C 60°C 70°C 75°C
GPoE/S 1 30 watts Full Power Full Power Full Power Full Power Full Power
2 60 watts Full Power Full Power Full Power Full Power Full Power



OmniConverter GPoE+/S IEEE 802.3at 30W Models
Fiber TypeDistanceConnector Type

Tx / Rx

Lambda

(nm)

Min. Tx

Power

(dBm)

Max. Tx

Power

(dBm)

Min. Rx

Power

(dBm)

Max. Rx

Power

(dBm)

Min

Attenuation

(dB)

Link
Budget

(dB)

STSCSFP
MM 220/550m1 9420-0-ypt 9422-0-ypt - 850/850 -10 -4 -17 -3 - 7
SM 12km 9421-1-ypt 9423-1-ypt - 1310/1310 -9.5 -3 -19.5 -3 - 10
SM 34km 9421-2-ypt 9423-2-ypt - 1310/1310 -5 0 -23 -3 3 18
SM 80km - 9423-3-ypt  - 1550/1550 -5 0 -23 -3 3 18
SM 110km - 9423-4-ypt  - 1550/1550 0 5 -24 -3 8 24
SM 140km - 9423-5-ypt  - 1550/150 2 5 -28 -8 13 30
MM-SF2 550m - 9430-0-ypt  - 1310/1550 -9 -3 -18 -3 - 9
MM-SF2 550m - 9431-0-ypt  - 1550/1310 -9 -3 -18 -3 - 9
SM-SF2 20km - 9430-1-ypt  - 1310/1550 -9.5 -3 -20 -3 - 10.5
SM-SF2 20km - 9431-1-ypt  - 1550/1310 -9.5 -3 -20 -3 - 10.5
SM-SF2 40km - 9430-2-ypt  - 1310/1550 -3 0 -20 -3 3 17
SM-SF2 40km - 9431-2-ypt  - 1550/1310 -3 0 -20 -3 3 17
SFP(x1) - -   - 9439-0-ypt - - - - - - -
SFP(x2) -  -  - 9439-1-ypt - - - - - - -
162.5/125µm, 100/140µm multimode fiber up to 220m. 50/125µm multimode fiber up to 550m.
2When using single-fiber (SF) models, the Tx wavelength on one end has to match the Rx wavelength on the other.
MM = Multimode, SM = Single-mode, DF = Dual Fiber, SF = Single-fiber

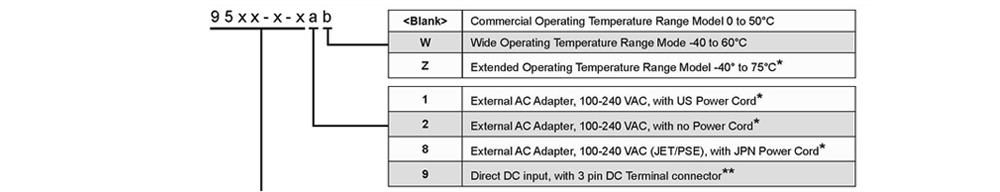

Base Model Number: 94xx-x-ypt
Select the model from ordering table above.
Add # of RJ-45 ports (y), power option (p) and operating temperature range (t) to the model type selected.
Number of RJ-45 Ports (y):
1 = One RJ-45 Ports 2 = Two RJ-45 Ports
Power Options (p):
1 = External AC/DC Adapter, 100 - 240 VAC included, with US Power Cord 8 = External AC/DC Adapter, 100 - 240 VAC included, with Japanese Power Cord
2 = External AC/DC Adapter, 100 - 240 VAC included, No Power Cord 9 = Direct DC 3 pin terminal connector, no AC/DC power adapter
See AC/DC Adapter Temperature table below when ordering AC Powered models (power option 1, 2 or 8)
The Direct DC input models (power option 9) will provide full PoE power over the operating temperature range of the module as long as the DC input voltage meets the requirements stated in the specification table.
Operating Temperature Options (t):
<leave blank> = Commercial temperature (0 to 50°C) W = Wide temperature (-40 to 60°C)
Z = Extended temperature (-40 to 75°C)
 Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Optical Transceivers web page.



AC/DC Adapter Temperature Derating
Total Available Wattage to RJ-45 Ports
Model RJ-45 Ports Watts Required 40°C 50°C 60°C 70°C 75°C
GPoE+/S 1 30 watts Full Power Full Power Full Power Full Power Full Power
2 60 watts Full Power Full Power Full Power Full Power 50 watts



Accessories
Model Number
Description
8250-0
DIN-Rail Mounting Bracket
8251-0
DIN-Rail Mounting Clip
8260-0
19" rack mount shelf
