10BASE-T to 10BASE-T1L PSE Ethernet-APL Compliant Media Converter

OmniConverter® 10T/APS

OmniConverter SPE LPD PS RJ-45 IEC2
Lifetime Warranty

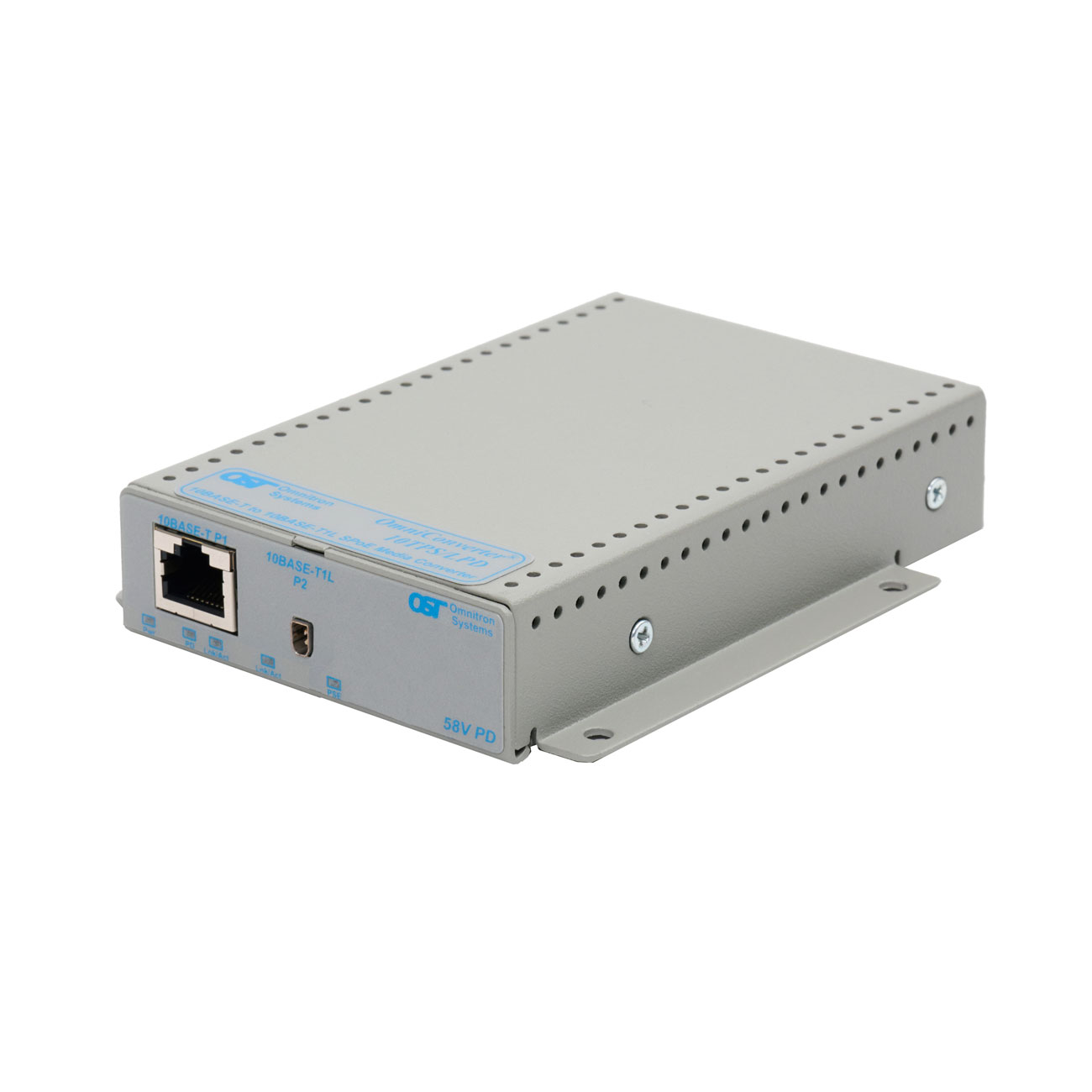

OmniConverter® 10T/APS - 1 x 10BASE-T RJ-45 and 1 x 10BASE-T1L APL, TL1/PSE 1.0V, Class C, IEC 63171-2 SPE jack, Direct DC input with 2-Pin Terminal Connector, Extended temperature (-40 to 75°C)


Part Number

2024-20-19Z

icons

  • Description
  • Specifications
  • Documents

OmniConverter 10T/APS Single Pair Ethernet (Data Sheet)

OmniConverter 10T/APS Single Pair Ethernet (User Manual)

OmniConverter® 10T/APS - 1 x 10BASE-T RJ-45 and 1 x 10BASE-T1L APL, TL1/PSE 1.0V, Class C, IEC 63171-2 SPE jack, Direct DC input with 2-Pin Terminal Connector, Extended temperature (-40 to 75°C)

Specifications

Description

10T/APS

10BASE-T to 10BASE-T1L APS PSE
Base Model Number 2022 2024 2025 2027
Standard Compliances

IEEE 802.3,

10BASE-T1L compliant
Regulatory Compliances (Pending)

Safety: UL 62368-1, UL 60950-1,

             IEC 62368-1, IEC 60950-1,

             CUL CSA C22.2 No. 60950,

             EN 60950-1:2006

             CE Mark,

             UKCA

EMI:      FCC 47CFR, Part 15 Class A

             AS/NZS 3548, AS/NZS 4417.1 and AS/NZS 4417.2

             ICES-003 Issue 3

             EN 55032/CISPR 22 and EN55035

             EN61000-3-2

             VCCI V3/2001.04 (CISPR 22A:1997, Class A)

EMC:    IEC/EN61000-4-2, IEC/EN61000-4-3

             IEC/EN61000-4-4, IEC/EN61000-4-5

             IEC/EN61000-4-6, IEC/EN61000-4-8

             IEC/EN61000-4-11

ACT:     TAA, BAA, NDAA
Environmental REACH, RoHS and WEEE
Frame Size Up to 1518 bytes
PSE Mode

9.6 to 15 VDC for

Class A edge/field devices

11.61 to 15 VDC for

Class C edge/field devices

46 to 50 VDC for

Class 3 edge/field devices

46 to 50 VDC for

Class 4 edge/field devices
Port Types

10BASE-T: RJ-45

10BASE-T1L:

3-Pin Terminal or

IEC 63171 Connector

Class A:

1.0 V peak-to-peak; 0.5 W

10BASE-T: RJ-45 PoE+/PD

10BASE-T1L:

3-Pin Terminal or

IEC 63171 Connector

Class C:

1.0 V peak-to-peak; 1.0 W

10BASE-T: RJ-45 PoE+/PSE

10BASE-T1L:

3-Pin Terminal or

IEC 63171 Connector

Class 3:

1.0/2.4 V peak-to-peak, 36 W

10BASE-T: RJ-45

10BASE-T1L:

3-Pin Terminal or

IEC 63171 Connector

Class 4:

1.0/2.4 V peak-to-peak, 56 W
Cable Types

10BASE-T: Ethernet, EIA/TIA 568A/B, Cat 3 or better

10BASE-T1L: Single-Pair Ethernet (SPE) cable, IEC 61156-13 (fixed) or IEC 61156-14 (flexible) 18AWG cable or better

DC Power Requirements

(with DC Terminals)

+9 to +15VDC;

0.222A @ 12VDC

2 Pin Terminal

+11.61 to +15VDC;

0.261A @ 12VDC

2 Pin Terminal

+46 to +50VDC;

1.359A @ 48VDC

2 Pin Terminal

+46 to +50VDC;

2.109A @ 48VDC

2 Pin Terminal

Dimensions

(W x D x H)

3.8” x 4.8” x 1.0” (96.5 mm x 121.9 mm x 25.4 mm)
Weight

Module Only: 1.0 lbs. (453.6 grams)

Module w/ Adapter: 1.9 lbs. (852.6 grams)
Operating Temperature

Extended: -40 to 75°C

Storage: -40 to 80°C
Humidity 5 to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hours)

1,642,000

1,637,000

1,637,000

1,631,000
Warranty Lifetime warranty with 24/7/365 free Technical Support

Hazardous Area Use Disclaimer:

This product is not certified for use in hazardous (classified) locations, including Zone 0, Zone 1, or Zone 2 as defined by IEC 60079-10-1 or equivalent national standards. It is intended for installation in non-hazardous (safe) areas only.

The product supports interoperability with Ethernet-APL networks and devices, including those installed in hazardous zones, provided that all connections are made through certified intrinsically safe interfaces as part of a compliant system architecture.

When connecting to devices located in hazardous areas, appropriate energy-limiting devices, field switches, or barriers must be used to ensure compliance with all applicable safety standards.
