10/100/1000BASE T to 1000/10G Fiber Media Converter

iConverter® 10GXT

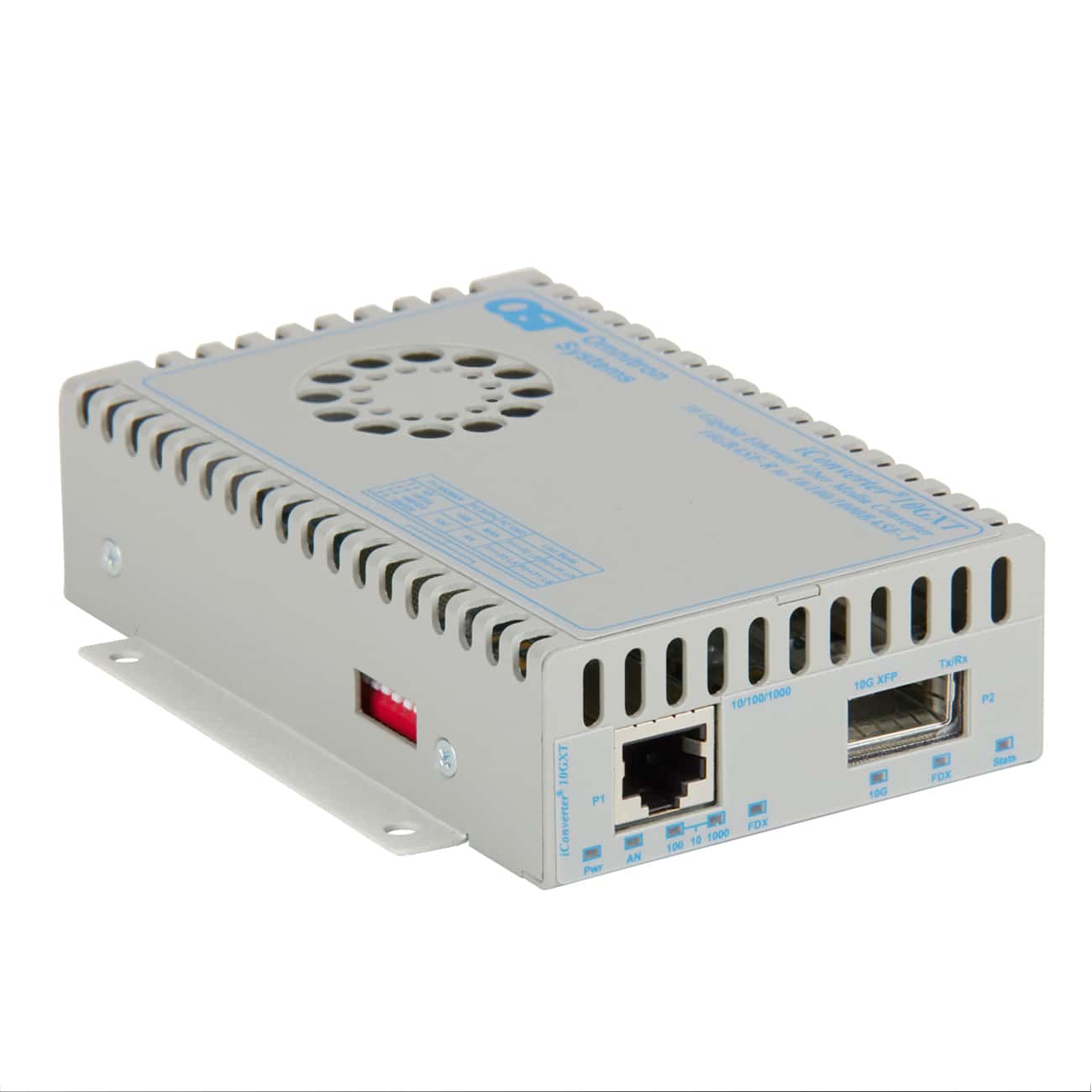

Iconverter 10GXT XFP TT Wall
Lifetime Warranty
iConverter® 10GXT: 10/100/1Gbps RJ-45 to 10 Gbps, XFP, Fiber Type depends on XFP, Wavelength depends on XFP, Distance depends on XFP, No AC/DC Power Adapter, Extended Temperature -40 to 75 deg C


Part Number

8580-1-HZ

icons
Add to Quote

  • Description
  • Specifications
  • Documents

iConverter 10GXT (Data Sheet)

iConverter 10GXT (User Manual)

iConverter® 10GXT: 10/100/1Gbps RJ-45 to 10 Gbps, XFP, Fiber Type depends on XFP, Wavelength depends on XFP, Distance depends on XFP, No AC/DC Power Adapter, Extended Temperature -40 to 75 deg C

Specifications

Description iConverter 10GXT
10/100/1000BASE-T Copper to 1000/10GBASE-R Fiber Media Converter
Standard Compliances IEEE 802.3, 802.3u, 802.3ab, 802.3z and 802.3ae
Regulatory Compliances*

Safety:

EMI:

ACT:

UL, cUL, CE, UKCA

FCC Class A

TAA, BAA, NDAAA
Environmental RoHS, WEEE, REACH
Frame Size Up to 10,056 bytes
Port Types Copper:
Fiber:		 10/100/1000BASE-T (RJ-45)
1000BASE-SX (SFP)
1000BASE-LX (SFP)
1000BASE-ZX (SFP)
1000BASE-BX (SFP)
10GBASE-SR (SFP+, XFP)
10GBASE-LR (SFP+, XFP)
10GBASE-ER (SFP+, XFP)
10GBASE-ZX (XFP)
10GBASE-BR (Single-fiber: SFP+, XFP)
Cable Types Copper:
Fiber:		 EIA/TIA 568A/B, Cat 5 UTP and higher
Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
AC Power Requirements

AC Adapter:

(US)

100 - 240VAC/50 - 60Hz

0.19A @ 120VAC (max)

AC Adapter:

(Universal)

100 - 240VAC/50 - 60Hz

0.19A @ 120VAC (max)
DC Power Requirements

DC Input:

(Terminal Block)

9 - 16VDC, 2.5A max

2-Pin Terminal (non-isolated)

DC Input:

(AC Adapter)

9 - 16VDC, 2.5A max

2.5mm Barrel Connector
Dimensions
W x D x H

w/o Brackets:

w/ Brackets:

3.06” x 4.8” x 1.3” (77.7 mm x 121.9 mm x 33.0 mm)

3.8” x 4.8” x 1.3” (96.7 mm x 121.9 mm x 33.0 mm)
Weight

Standalone w/o Adapter:

Standalone w Adapter:

0.79 lb. (358 grams)

1.21 lbs. (549 grams)
Temperature
Commercial:
Wide:
Industrial:
Storage:
 0 to 50°C
-40 to 60°C
-40 to 75°C
-40 to 80°C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m
MTBF (hrs) 330,000
Warranty Lifetime warranty with 24/7/365 free Technical Support
*Compliances pending
