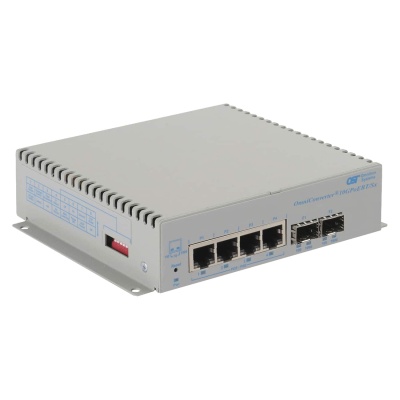

OmniConverter 10GPoEBT Sx 4x RJ-45
OmniConverter® 10GPoEBT/Sx: 4 x 10/100/1Gbps RJ-45 PoE++/HPoE 100W to 2 x 1 Gbps / 10 Gbps, SFP, Fiber type depends on SFP, SFP-Dependent, Distance depends on SFP, Unmanaged Ethernet Switch, Standalone/Wall-Mount, US 100-240VAC, Commercial/Enterprise Temperature Range


Part Number

3062B-0-24-1

icons
Add to Quote

  • Description
  • Specifications
  • Documents

OmniConverter 10GHPoEBT/Sx (Data Sheet)

OmniConverter 10GPoEBT/Sx (Quick Start)

OmniConverter® 10GPoEBT/Sx: 4 x 10/100/1Gbps RJ-45 PoE++/HPoE 100W to 2 x 1 Gbps / 10 Gbps, SFP, Fiber type depends on SFP, SFP-Dependent, Distance depends on SFP, Unmanaged Ethernet Switch, Standalone/Wall-Mount, US 100-240VAC, Commercial/Enterprise Temperature Range

Specifications

6 Port Managed 10G PoE Switches: Detailed Product Specifications

Description OmniConverter® 10GPoEBT/Sx
10/100/1000BASE-T with 1/10G Gigabit Fiber
Unmanaged 6 Port IEEE 802.3bt 60/100W PoE Ethernet Switch
Standard Compliances

IEEE 802.3,

IEEE 802.3af (15.40 watts max),

IEEE 802.3at (30 watts max),

IEEE 802.3bt (60 and 100 watts max)
Regulatory Compliances
(*Pending)

Safety*: UL 62368-1,UL 60950-1,

               IEC 62368-1, IEC 60950-1,

               EN 62368-1, EN 60950-1,

               CAN/CSA C22.2 No. 62368-1-14,

               CAN/CSA C22.2 No. 60950-1,

               CE Mark, UKCA

EMC:      EN 55032/24 CE Emissions/Immunity,

               IEC 61000-6-4 Industrial Emissions,

               IEC 61000-6-2 Industrial Immunity

EMI:       CISPR 32,

               FCC 47 Part 15 Subpart B Class A

EMS:      IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

               IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m,

               IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV (DC models),

               IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV (AC models),

               IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (DC models),

               IEC 61000-4-5 Surge: Power: 1 kV Line/Line; 2 kV Line/Gnd; Signal: 2 kV (AC models),

               IEC 61000-4-6 CS: Signal: 10 V,

               IEC 61000-4-8 (Magnetic Field) 30A/m,

               IEC 61000-4-11 (Voltage Dips, interrupts)

IP Rating: IP20 Protection

ACT: TAA, BAA, NDAA
Environmental REACH, RoHS and WEEE
PoE Modes IEEE Alternate A (Alt A) and 4-Pair
Frame Size Up to 10,240 bytes
Port Types

Copper:          10/100/1000BASE-T (RJ-45)

SFP/SFP+:    10GBASE-X Fiber Transceivers

                      10GBASE-T Copper Transceivers

                      1000BASE-X Fiber Transceivers

                      1000BASE-T Copper Transceivers

                      10/100/1000BASE-T SGMII Copper Transceivers
Cable Types

Copper: EIA/TIA 568A/B, Cat 5 UTP and higher

Fiber:    Multimode: 50/125, 62.5/125µm

              Single-mode: 9/125µm
AC Power Requirements
(Models with AC/DC Adapters)

100 - 240VAC/50 - 60Hz

3.5A max at 115VAC

2.5A max at 230VAC

Supplied adapter provides 250W
DC Power Requirements
(Models with DC Terminals)

60W Models:

+46 to +57VDC;

4.47A @ 56VDC

2 Pin Terminal (isolated)

100W Models:

+46 to +57VDC;

7.33A @ 56VDC

2 Pin Terminal (isolated)
Dimensions (W x D x H) 6.28” x 5.2” x 1.5” (159.5 mm x 132.1 mm x 38.1 mm)
Weight Module Only: 1.6 lb. (735 grams)
Module with AC/DC Adapter: 3.7 lbs. (1703 grams)
Operating Temperature Commercial: 0 to 50°C
Wide: -40 to 60°C (-20°C AC cold start)
Extended: -40 to 75°C - not available for models with AC/DC power adapter
Storage: -40 to 80°C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hrs) Module Only: 285,000
AC/DC Adapter: 100,000
Warranty 5 year product warranty with 24/7/365 free Technical Support
2 year AC power adapter warranty



AC/DC Adapter Temperature Derating - Total Available Wattage to RJ-45 Ports
Model Watts Required 40°C 50°C 60°C
10GPoEBT/Sx 60W 240 watts Full Power 175 watts 115 watts
10GPoEBT/Sx 100W 400 watts 240 watts 175 watts 115 watts
The AC/DC Adapter Temperature derating table is not applicable to models with DC Terminal (see Ordering table for Direct DC -9 option). The DC Terminal models will provide full PoE power over the operating temperature range of the module as long as the DC input voltage meets the requirements stated in the specification table.



Power / Voltage Requirements and Specifications

Description

15W

IEEE 802.3af PoE

30W

IEEE 802.3at PoE+

60W

IEEE 802.3.bt PoE
(Type 3)

100W

IEEE 802.3bt PoE
(Type 4)
Power Supply Voltage Range 46.0 to 57.0 VDC 51.0 to 57.0 VDC 51.0 to 57.0 VDC 53.0 to 57.0 VDC
Voltage Range at PSE port Output 44.0 to 56.0 VDC 50.0 to 56.0 VDC 50.0 to 56.0 VDC 52.0 to 56.0 VDC
Maximum Power from PoE/PSE port 15.4 watts 30 watts 60 watts 100 watts
Minimum Voltage at PoE/PD port input* 37.0 VDC 42.5 VDC 42.5 VDC 41.1 VDC
Minimum Power at PoE/PD port* 12.95 watts 25.5 watts 51 watts 71 watts
* at 100 meters using Cat5
