Managed 60/100W IEEE 802.3bt PoE Gigabit Switches

OmniConverter® GHPoEBT/M

OmniConverter GHPoE M SCSF 4xRJ-45

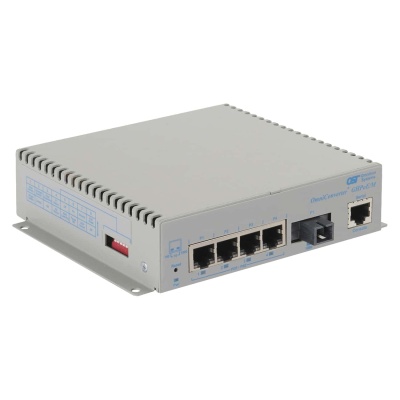

OmniConverter® GHPoEBT/M: 4 x 10/100/1Gbps RJ-45 PoE++/HPoE 100W to 1 x 1 Gbps, SC, SMSF, 1550/1310, 20km, Managed Ethernet Switch, Standalone/Wall-Mount, DC 2-Pin Terminal, Wide Temperature Range


Part Number

3151B-1-14-9W

icons
Add to Quote

  • Description
  • Specifications
  • Documents

OmniConverter GHPoEBT/M (Data Sheet)

OmniConverter GHPoEBT/M (Quick Start)



OmniConverter Command Line Interface (User Manual)

OmniConverter Web Interface (User Manual)

OmniConverter / RuggedNet 2.5 Hierarchical CLI (User Manual)



9170-PS-480-Industrial-Power-Supply

9170-PS-960-Industrial-Power-Supply

OmniConverter® GHPoEBT/M: 4 x 10/100/1Gbps RJ-45 PoE++/HPoE 100W to 1 x 1 Gbps, SC, SMSF, 1550/1310, 20km, Managed Ethernet Switch, Standalone/Wall-Mount, DC 2-Pin Terminal, Wide Temperature Range

Specifications

Description OmniConverter® GHPoEBT/M (60/100W BT)
10/100/1000BASE-T with Gigabit Fiber or Copper Uplinks
Managed 6 Port IEEE 802.3bt PoE Ethernet Switch
Standard Compliances

IEEE 802.3, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1ax, IEEE 802.1w RSTP/MSTP,

RFC 5424, RFC 4541, RFC 2710, IEC 624339-2,

SMTP, SNTP, RADIUS, TACACS+, IEEE 802.1x,

IEEE 802.3af (15.40 watts), IEEE 802.3at (30 watts), IEEE 802.3bt (60 and 100 watts max)
Regulatory Compliances

Safety: UL 62368-1, UL 60950-1,

             IEC 62368-1, IEC 60950-1,

             EN 62368-1, EN 60950-1,

             CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1,

             CE Mark,

             UKCA

EMC:    EN 55032/24 CE Emissions/Immunity,

             IEC 61000-6-4 Industrial Emissions, IEC 61000-6-2 Industrial Immunity

EMI:     CISPR 32, FCC 47 Part 15 Subpart B Class A

EMS:    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

             IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m,

             IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV (DC models),

             IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV (AC models),

             IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (DC models),

             IEC 61000-4-5 Surge: Power: 1 kV Line/Line; 2 kV Line/Gnd; Signal: 2 kV (AC models),

             IEC 61000-4-6 CS: Signal: 10 V, IEC 61000-4-8 (Magnetic Field) 30A/m,

             IEC 61000-4-11 (Voltage Dips, interrupts)

IP Rating: IP20 Protection

ACT: TAA, BAA, NDAA
Environmental REACH, RoHS and WEEE
PoE Modes IEEE Alternate A (Alt A)
4-Pair
Management

IPv4 and IPv6 address

Web, Telnet, SSH, SNMPv1/v2c/v3

In-Band management via Ethernet port

Out-of-band management via serial port
Frame Size Up to 10,240 bytes
Port Types

Copper: RJ-45: 10/100/1000BASE-T

Fiber:     Fixed: ST, SC, LC 1000BASE-X Fiber

               SFP:    10/100/1000BASE-T SGMII Copper Transceiver or

                           100BASE-X SGMII Fiber Transceiver or

                           1000BASE-X SERDES Fiber Transceivers

Serial:    RJ-45:  RS-232
Cable Types Copper: EIA/TIA 568A/B, Cat 5 UTP and higher
Fiber:     Multimode: 50/125, 62.5/125µm
              Single-mode: 9/125µm
Serial:   Category 3 and higher
AC Power Requirements
(Models with AC/DC Adapters)

100 - 240VAC 50/60Hz

3.5A max at 115VAC

2.5A max at 230VAC
DC Power Requirements
(Models with DC Terminals)

60W Models:

+46 to +57VDC;

4.46A @ 56VDC

2 Pin Terminal (isolated)

100W Models:

+46 to +57VDC;

7.31A @ 56VDC

2 Pin Terminal (isolated)
Dimensions
(W x D x H)		 6.28” x 5.2” x 1.5” (159.5 mm x 132.1 mm x 38.1 mm)
Weight

Module Only: 1.6 lbs.; 735 grams

Module with AC/DC Adapter: 3.7 lbs.; 1703 grams
Operating Temperature
(See Temperature Derating Table)

Commercial: 0 to 50°C

Wide:          -40 to 60°C (-20°C AC cold start)

Extended:   -40 to 75°C - not available for models with AC/DC Adapters

Storage:      -40 to 80°C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hrs) Module Only: 266,000
AC/DC Adapter: 100,000
Warranty

5 year product warranty with 24/7/365 free Technical Support

2 year AC power adapter warranty



Power / Voltage Requirements and Specifications per IEEE

Description

IEEE 802.3af 15W PoE

IEEE 802.3at 30W PoE+

IEEE 802.3.bt 60W PoE

(Type 3)

IEEE 802.3bt 100W PoE

(Type 4)
Power Supply Voltage Range 46.0 to 57.0 VDC 51.0 to 57.0 VDC 51.0 to 57.0 VDC 53.0 to 57.0 VDC
Voltage Range at PSE port Output 44.0 to 56.0 VDC 50.0 to 56.0 VDC 50.0 to 56.0 VDC 52.0 to 56.0 VDC
Maximum Power from PoE/PSE port 15.4 watts 30 watts 60 watts 100 watts
Minimum Voltage at PoE/PD port input* 37.0 VDC 42.5 VDC 42.5 VDC 41.1 VDC
Minimum Power at PoE/PD port* 12.95 watts 25.5 watts 51 watts 71 watts
* at 100 meters using Cat5
