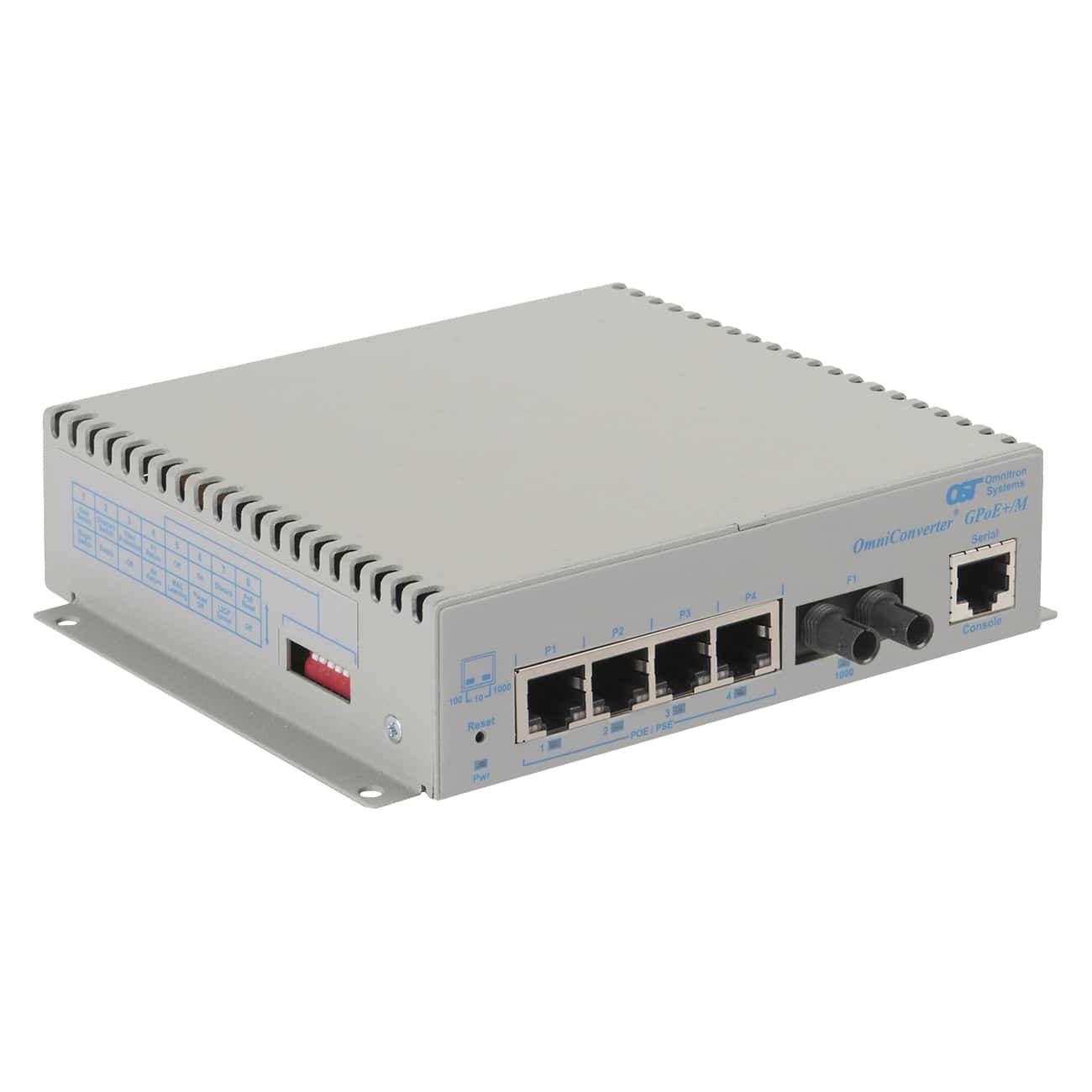

OmniConverter GPoE+ M ST 4xRJ-45
OmniConverter® GPoE+/M: 4 x 10/100/1Gbps RJ-45 PoE+ 30W to 1 x 1 Gbps, ST, MMDF, 850, 220/550m, Managed Ethernet Switch, Standalone/Wall-Mount, US 100-240VAC, Commercial/Enterprise Temperature Range


Part Number

9520-0-14-1

icons
Add to Quote

  • Description
  • Specifications
  • Documents

OmniConverter GPoE+/M (Datasheet)

OmniConverter GPoE+/M (Quick-Start)



OmniConverter Command Line Interface (User Manual)

OmniConverter Web Interface (User Manual)

OmniConverter / RuggedNet 2.5 Hierarchical CLI (User Manual)



9170-PS-480 Industrial Power Supply (Datasheet)

9170-PS-240 Industrial Power Supply (Datasheet)

OmniConverter® GPoE+/M: 4 x 10/100/1Gbps RJ-45 PoE+ 30W to 1 x 1 Gbps, ST, MMDF, 850, 220/550m, Managed Ethernet Switch, Standalone/Wall-Mount, US 100-240VAC, Commercial/Enterprise Temperature Range

Specifications

Description OmniConverter® GPoE+/M
10/100/1000BASE-T with Gigabit Fiber or 10/100/1000BASE-T Copper Uplinks
Managed 6 or 10 Port Gigabit Ethernet Switch with PoE+
Standard Compliances

IEEE 802.3, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1ax, IEEE 802.1w RSTP/MSTP

RFC 5424, RFC 4541, RFC 2710, IEC 624339-2,

SMTP, SNTP, RADIUS, TACACS+, IEEE 802.1x

IEEE 802.3af (15.40 watts), IEEE 802.3at (30 watts)
Regulatory Compliances

Safety: UL 62368-1, UL 60950-1,

             IEC 62368-1, IEC 60950-1,

             EN 62368-1, EN 60950-1,

             CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1,

             CE Mark, UKCA

EMC:    EN 55032/24 CE Emissions/Immunity,

             IEC 61000-6-4 Industrial Emissions, IEC 61000-6-2 Industrial Immunity

EMI:     CISPR 32,

             FCC 47 Part 15 Subpart B Class A

EMS:    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

             IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m,

             IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV (DC models),

             IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV (AC models),

             IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (DC models),

             IEC 61000-4-5 Surge: Power: 1 kV Line/Line; 2 kV Line/Gnd; Signal: 2 kV (AC models),

             IEC 61000-4-6 CS: Signal: 10 V, IEC 61000-4-8 (Magnetic Field) 30A/m,

             IEC 61000-4-11 (Voltage Dips, interrupts)

IP Rating: IP20 Protection

ACT: TAA, BAA, NDAA
Environmental REACH, RoHS and WEEE
PoE Mode IEEE Alternate A (Alt A)
Management

IPv4 and IPv6 address

Web, Telnet, SSH, SNMPv1/v2c/v3

In-Band management via Ethernet port

Out-of-band management via serial port
Frame Size Up to 10,240 bytes
Port Types

Copper: RJ-45: 10/100/1000BASE-T

Fiber:     Fixed: ST, SC, LC 1000BASE-X Fiber

               SFP:    10/100/1000BASE-T SGMII Copper Transceiver or

                           100BASE-X SGMII Fiber Transceiver or

                           1000BASE-X SERDES Fiber Transceivers

Serial:     RJ-45: RS-232
Cable Types Copper: EIA/TIA 568A/B, Cat 5 UTP and higher
Fiber:    Multimode: 50/125, 62.5/125µm
              Single-mode: 9/125µm
Serial:   Category 3 and higher
AC Power Requirements
(Models with AC/DC Adapters)

100 - 240VAC 50/60Hz

3.5A max at 115VAC

2.5A max at 230VAC
DC Power Requirements
(Models with DC Terminals)

4 RJ-45 Ports:

+46 to +57VDC;

2.31A @ 56VDC

2 Pin Terminal (isolated)

8 RJ-45 Ports:

+46 to +57VDC;

4.47A @ 56VDC

2 Pin Terminal (isolated)
Dimensions
(W x D x H)		 6.28” x 5.2” x 1.5” (159.5 mm x 132.1 mm x 38.1 mm)
Weight 4 RJ-45 Ports:
Module Only: 1.6 lbs.; 735 grams
Module with AC/DC Adapter: 3.7 lbs.; 1703 grams		 8 RJ-45 Ports:
Module Only: 1.7 lbs.; 755 grams
Module with AC/DC Adapter: 3.8 lbs.; 1723 grams
Operating Temperature
(See Temperature Derating Table)		 Commercial: 0 to 50°C
Wide: -40 to 60°C (-20°C AC cold start)
Extended: -40 to 75°C - not available for models with AC/DC Adapters
Storage: -40 to 80°C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hrs) Module Only: 272,000
AC/DC Adapter: 100,000
Warranty 5 year product warranty with 24/7/365 free Technical Support
2 year AC power adapter warranty



Power / Voltage Requirements and Specifications per IEEE

DescriptionIEEE 802.3af PoEIEEE 802.3at PoE+
Power Supply Voltage Range 46.0 to 57.0 VDC 51.0 to 57.0 VDC
Voltage Range at PSE port Output 44.0 to 56.0 VDC 50.0 to 56.0 VDC
Maximum Power from PoE/PSE port 15.4 watts 30 watts
Minimum Voltage at PoE/PD port input* 37.0 VDC 42.5 VDC
Minimum Power at PoE/PD port* 12.95 watts 25.5 watts
* at 100 meters using Cat5



AC/DC Adapter Temperature Derating - Total Available Wattage to RJ-45 Ports
Model RJ-45 Ports Watts Required 40°C 50°C 60°C
GPoE+/M 4 120 watts Full Power Full Power 115 watts
8 240 watts Full Power 175 watts 115 watts
The AC/DC Adapter Temperature derating table is not applicable to models with DC Terminal (see Ordering table for Direct DC -9 option). The DC Terminal models will provide full PoE power over the operating temperature range of the module as long as the DC input voltage meets the requirements stated in the specification table.
