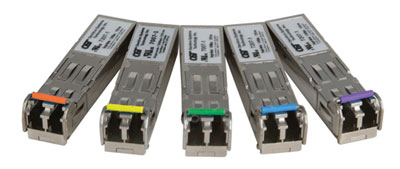

Omnitron SFP transceivers for standard wavelengths



Description


Omnitron SFP Transceivers

Omnitron SFP (Small Form Pluggable) Transceivers are interchangeable, compact media connectors. They enable a single network device to connect to various fiber and copper cable types and distances.

SFP Transceivers reduce network equipment inventories by eliminating the need to maintain surplus modules of various media types for network repairs or upgrades. They also enable network upgrades and growth by providing interchangeable fiber and copper connectors that can easily adapt to and modify any existing network.

Omnitron SFP Transceivers Features

Omnitron SFP Transceivers enable flexible fiber and copper connectivity. Omnitron SFP Transceivers provide a cost-effective and flexible solution for network designs by providing compact physical size and ease of interchangeability.

  • Compliant with IEEE 802.3u Fast Ethernet and 802.3z Gigabit Ethernet specifications
  • Compliant with MSA SFF-8472 and INF-8077i standard, which provides interoperability with other network devices
  • Compliant with RoHS2 (6/6), WEEE, and REACH
  • Low EMI metal enclosure
  • One (1) Year Warranty
  • free 24/7 Technical Support



SFP Transceivers support:

Based on the MSA SFF-8472 and INF-8077i standards, Omnitron SFP Transceivers support digital diagnostic capabilities, providing enhanced diagnostic information to assist network administrators with network maintenance.

When used in iConverter modules managed by SNMP management software, such as NetOutlook®, Omnitron SFP Transceivers can collect enhanced, real-time transceiver diagnostic information, including fiber optic TX and RX power, voltage, and transceiver temperature.

  • Supports operational data rates for SONET OC-3/12/48, SDH STM-1/4/16, and Fibre Channel x1/x2
  • Supports Digital Diagnostic capability
  • Coarse Wave Division Multiplexing (CWDM) Optical Transceiver

Supports a wide variety of cable types

  • multimode dual fiber
  • single-mode dual fiber
  • single-mode single-fiber
  • Unshielded Twisted Pair copper cabling



Omnitron SFP Transceivers Compatibility:

SFP Transceivers are used to customize all types of media converters, PoE Power Sourcing Equipment, and most 3rd party networking equipment to meet specific networking protocols and media requirements.

Omnitron SFP Transceivers Case Operating Temperature Range:

Omnitron SFP Transceivers are available in two operating temperature ranges.

  • Commercial (0° C to +70° C)
  • Industrial (-40° C to +85° C)




Ordering


Fiber SFPs supporting Fast Ethernet, SONET OC-3 and SDH STM-1 network protocols.
ModelFiber TypeSpec.
Distance
(km)		Wavelength
Tx / Rx
(nm)		Min. Tx
Power
(dBm)		Max. Tx
Power
(dBm)		Min. Rx
Power
(dBm)		Max. Rx
Power
(dBm)		Min.
Attenuation
(dB)		Link
Budget
(dB)
7006-0t MM/DF 5 1310 / 1310 -20 -14 -31 -14 - 11
7007-1t SM/DF 30 1310 / 1310 -15 -8 -32 -8 - 17
7007-2t SM/DF 60 1310 / 1310 -5 0 -35 -3 3 30
7007-3t SM/DF 120 1550 / 1550 -5 0 -35 -3 3 30
7014-0t MM/SF1 5 1310 / 1550 -15 0 -28 -3 3 13
7015-0t MM/SF1 5 1550 / 1310 -15 0 -28 -3 3 13
7014-1t SM/SF1 30 1310 / 1550 -14 -8 -32 -3 - 18
7015-1t SM/SF1 30 1550 / 1310 -14 -8 -32 -3 - 18
7014-2t SM/SF1 50 1310 / 1550 -8 0 -34 -3 3 26
7015-2t SM/SF1 50 1550 / 1310 -8 0 -34 -3 3 26
7014-3t SM/SF1 80 1310 / 1550 0 5 -34 -3 8 34
7015-3t SM/SF1 80 1550 / 1310 0 5 -34 -3 8 34
Fiber SFPs supporting Gigabit Ethernet, 1G Fiber Channel, SONET OC-12 and SDH STM-4 network protocols.
ModelFiber TypeSpec.
Distance
(km)		Wavelength
Tx / Rx
(nm)		Min. Tx
Power
(dBm)		Max. Tx
Power
(dBm)		Min. Rx
Power
(dBm)		Max. Rx
Power
(dBm)		Min.
Attenuation
(dB)		Link
Budget
(dB)
7206-0t MM/DF2 0.22 / 0.55 850 / 850 -9.5 -4 -17 -3 - 7.5
7206-6t MM/DF 2 1310 / 1310 -9.5 -3 -19.5 -3 - 10
7207-1t SM/DF 10 1310 / 1310 -9.5 -3 -21 -3 - 11.5
7207-2t SM/DF 34 1310 / 1310 -5 0 -24 -3 3 19
7207-3t SM/DF 80 1550 / 1550 -4 1 -24 -3 4 20
7207-4t SM/DF 110 1550 / 1550 0 5 -24 -3 8 24
7207-5t SM/DF 140 1550 / 1550 2 5 -30 -8 13 32
7207-6t SM/DF 160 1550 / 1550 1 5 -33 -8 13 34
7214-0t MM/SF1 0.55 1310 / 1550 -9 -3 -18 -3 - 9
7215-0t MM/SF1 0.55 1550 / 1310 -9 -3 -18 -3 - 9
7214-1t SM/SF1 20 1310 / 1550 -9 -3 -21 -3 - 12
7215-1t SM/SF1 20 1550 / 1310 -9 -3 -21 -3 - 12
7214-2t SM/SF1 40 1310 / 1550 -3 2 -23 -3 5 20
7215-2t SM/SF1 40 1550 / 1310 -3 2 -23 -3 5 20
7214-3t SM/SF1 60 1310 / 1550 0 5 -24 -1 6 24
7215-3t SM/SF1 60 1550 / 1310 -2 4 -25 -1 5 23
7216-1t SM/SF1 20 1310 / 1490 -9 -3 -21 -3 - 12
7217-1t SM/SF1 20 1490 / 1310 -9 -3 -21 -3 - 12
7216-2t SM/SF1 40 1310 / 1490 -3 0 -20 -3 3 17
7217-2t SM/SF1 40 1490 / 1310 -3 0 -20 -3 3 17
7218-4t SM/SF1 80 1510 / 1570 -4 1 -26 0 1 22
7219-4t SM/SF1 80 1570 / 1510 -4 1 -26 0 1 22

1 When using single-fiber (SF) transceiver models, the Tx wavelength on one end has to match the Rx wavelength on the other.

2 62.5/125µm (OM1) multimode fiber up to 220m. 50/125µm (OM2) multimode fiber up to 550m.

MM = Multimode, SM = Single-mode, DF = Dual Fiber, SF = Single-fiber
Base Model Number: 7xxx-xt
Select the model from ordering table above.
Add operating temperature range (t) to the model type selected.
Case Operating Temperature Options (t):
<leave blank> = Commercial temperature (0 to 70°C) Z = Industrial temperature (-40 to 85°C) - Not available on all models.
Contact Omnitron to verify.

End user needs to ensure case temperature is not exceeded for the model purchased.

Contact Omnitron for other fiber options.



Fiber SFPs for devices that support 2G Fiber Channel, SONET OC-48 and STM-16 network protocols.
ModelFiber TypeSpec.
Distance
(km)		Wavelength
Tx / Rx
(nm)		Min. Tx
Power
(dBm)		Max. Tx
Power
(dBm)		Min. Rx
Power
(dBm)		Max. Rx
Power
(dBm)		Min.
Attenuation
(dB)		Link
Budget
(dB)
7226-0t MM/DF 0.30 850 / 850 -9 -3 -17 0 - 8
7227-1t SM/DF 15 1310 / 1310 -10 -3 -18 -3 - 8
7227-2t SM/DF 40 1310 / 1310 -2 3 -27 -9 12 25
7227-3t SM/DF 80 1550 / 1550 -2 4 -20 0 4 18
Fiber SFPs for devices that support 8G Fiber Channel.
ModelFiber TypeSpec.
Distance
(km)		Wavelength
Tx / Rx
(nm)		Min. Tx
Power
(dBm)		Max. Tx
Power
(dBm)		Min. Rx
Power
(dBm)		Max. Rx
Power
(dBm)		Min.
Attenuation
(dB)		Link
Budget
(dB)
7287-1t SM/DF 10 1310 / 1310 -8 0 -16 0.5 - 8
MM = Multimode, SM = Single-mode, DF = Dual Fiber
Base Model Number: 72xx-xt
Select the model from ordering table above.
Add operating temperature range (t) to the model type selected.
Case Operating Temperature Options (t):
<leave blank> = Commercial temperature (0 to 70°C) Z = Industrial temperature (-40 to 85°C) - Not available on all models.
Contact Omnitron to verify.

End user needs to ensure case temperature is not exceeded for the model purchased.

Contact Omnitron for other fiber options.


Copper SFPs for Gigabit Ethernet
ModelDescriptionDistance
7299-RJt
 1000BASE-T RJ-45 SFP (SERDES) 100m
7299-RJ-GIt
 10/100/1000BASE-T RJ-45 SFP (SGMII) 100m
Base Model Number: 7299-RJt or 7299-RJ-GIt
Select the model from ordering table above.
Add operating temperature range (t) to the model type selected.
Case Operating Temperature Options (t):
<leave blank> = Commercial temperature (0 to 70°C) Z = Industrial temperature (-40 to 85°C) - Not available on all models.
Contact Omnitron to verify.

End user needs to ensure case temperature is not exceeded for the model purchased.

Contact Omnitron for other fiber options.
