iConverter carrier-class media converters and Network Interface Devices (NIDs) provide Ethernet in the First Mile fiber access in Metropolitan and Enterprise LAN networks. iConverters are used to distribute high-density managed fiber links from the Central Office/Network Core to intelligent NIDs that provide secure service demarcation with copper and fiber ports at the Customer Premises/Network Edge.

Technologies Supported:

• 10, 100, 10/100 Ethernet
• 10/100/1000 Gigabit Ethernet
• T1 E1, T3 DS3 E3
• OC3 STM-1 and OC12 STM-4
• Serial RS-232, RS-422/485

Module Types:

• Network Interface Devices
• Copper UTP to Fiber Optic
• Fiber to Fiber
• Coax to Fiber
• Redundant Fiber and Copper
• 4-Port Copper Switches

iConverter media converters can be managed or unmanaged. When managed, the iConverter management system provides the ability to remotely monitor network status, configure hardware parameters, generate statistic reports and receive a variety of user-specified traps. Management features for iConverter NIDs include support for 802.3ah Operation, Administration, and Maintenance (OAM) and Secure IP-Less management.

iConverters provide fiber connectivity that supports advanced services at a fraction of the cost of conventional switches. Ultimately, it’s not just the initial cost of a system that provides value, but the sustained cost of operating and maintaining the equipment month after month and year after year that counts. The iConverter management system reduces expenditures by keeping truck rolls to a minimum through extensive remote provisioning and instant trap notification capability.

To support Next-Generation Ethernet services, select iConverter media converter and NID modules support advanced features including:

• Built-in SNMP, Secure IP-less and 802.3ah management
• 802.3ah OAM link monitoring and trouble-shooting
• VLAN switch technology with Q-in-Q
• Small Form Pluggable (SFP) transceivers with CWDM technology
• Quality of Service (QoS) Prioritization for real-time voice/data/video
• Optical and Port statistics for performance monitoring
• Port VLAN and Port Access Control for security and configuration flexibility
• Bandwidth Control (rate limiting).

»» Click Here for a PDF chart of the iConverter features supported by each of the different modules

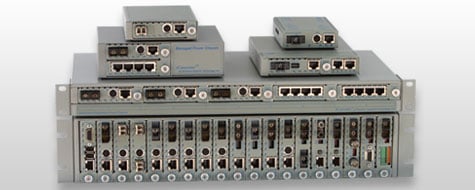

Flexible and easily scalable, iConverter modules are hot-swappable and can be mounted in a 19-module, 5-module, 2-module or a 1-module power chassis. iConverter modules and chassis support standard commercial temperature ranges of 0 to +50 degrees Celsius as well as wide temperature ranges of -40 to +60.

Contact Omnitron for modules with extended temperature ranges of -40 to +75 degrees Celsius.
