Unmanaged Ruggedized Ethernet Power Sourcing Equipment (PSE) PoE/PoE+ switch

  • Multiple port configurations:
    • 1 Fiber + 4 RJ-45
    • 2 Fiber + 4 RJ-45
    • 1 Fiber + 8 RJ-45
    • 2 Fiber + 8 RJ-45
  • Provides full PoE/PoE+ power simultaneously to all Ethernet RJ-45 ports
  • Configurable PoE Power Reset
  • Supports ST, SC and LC fiber ports or SFP transceivers
  • Fiber redundancy on models with two fiber ports
  • Dual Device mode for operating as two separate switches
  • Directed Switch mode to prevent port flooding
  • Supports jumbo frames up to 10,240 bytes
  • Isolated single or dual DC power for redundancy
  • DIN-rail mountable
  • Industrial (-40 to 75ºC) operating temperature
  • Free 24/7/365 Technical Support

The RuggedNet GPoE+/Si is a ruggedized and temperature-hardened unmanaged Ethernet switch that features one or two
1000BASE-X Gigabit fiber ports and four or eight 10/100/1000BASE-T RJ-45 Power Sourcing Power-over-Ethernet (PoE and PoE+) ports. The RuggedNet switch enables network distance extension with fiber cabling and provides full PoE+ power simultaneously to all RJ-45 ports.

The RuggedNet GPoE+/Si is a Layer 2 Ethernet switch that can be configured in Directed Switch mode. As a Layer 2 Ethernet switch, frames are forwarded to any port based on their MAC address. In Directed Switch mode, multicast traffic (such as video) is directed only to the appropriate fiber port, preventing the flooding of copper ports.

Models with two fiber ports support Dual Device Mode that enables the GPoE+/Si to operate as two independent and isolated switches. Models with two fiber ports also support redundant fiber uplinks for critical applications that require protection and sub-50ms restoration in the event of a fiber failure. The second fiber port may also be used to daisy-chain multiple RuggedNet PoE fiber switches, or it may be used as another switch port.

The RuggedNet GPoE+/Si is available with fixed ST, SC, and LC connectors or Small Form Pluggable (SFP) transceivers. Fiber ports support multimode or single-mode and dual fiber or single-fiber with distances up to 140 km. SFPs support a variety of distances in standard and CWDM wavelengths.

The GPoE+/Si automatically negotiates and delivers the power level required by its Powered Device (PD) partner. When negotiating to PoE (IEEE 802.3af) it delivers up to 15.4 Watts per RJ-45 port. When negotiating to PoE+ (IEEE 802.3at) it delivers up to 30 Watts per RJ-45 port.

PoE power reset enables a PD to be re-initialized remotely. When a problem with a PD is identified, the fiber port on a managed switch can be shut down or disconnected, enabling the PoE power reset function on the RuggedNet. The PoE power to the PD is disabled for 2 seconds when a loss of receive fiber link is detected by the RuggedNet, eliminating the need for costly truck rolls to remote PD sites.

The compact RuggedNet Ethernet switches can be DIN-rail mounted using the included DIN-rail mounting clip. They are available with single or dual DC input power via 2-Pin terminal connectors.

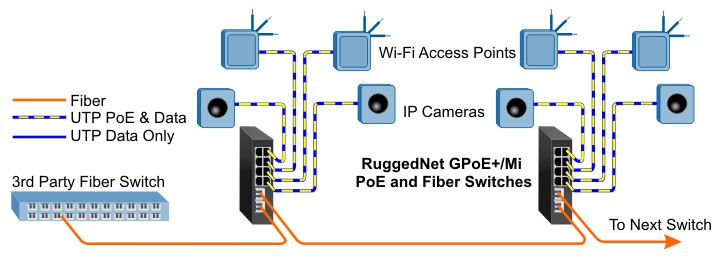

Daisy Chain Application

In this industrial manufacturing application example, RuggedNet GPoE+/Si PoE fiber switches are deployed along an assembly line. Gigabit fiber is distributed from a fiber switch at a network hub location to RuggedNet GPoE+/Si PoE switches with dual fiber ports that enable a fiber daisy chain with multiple locations. Each RuggedNet GPoE+/Si provides fiber data connectivity and PoE+ power for IP cameras and Wi-Fi access points at each location.

PoE Switch Application GPoE+Si

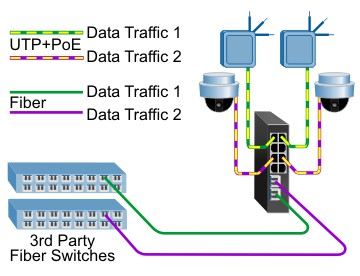

PoE Switch Dual Device Mode GPoE+SiDual Device Mode

For secure applications requiring two separate network domains over fiber runs to the same location and independent connectivity to the Powered Devices, the GPoE+/Si can be configured in Dual Device Mode.

The GPoE+/Si provides separate and independent data traffic paths between the two fiber links and four or eight RJ-45 ports. In the example below, the green lines represents one independent domain and the purple lines represent the other independent domain.

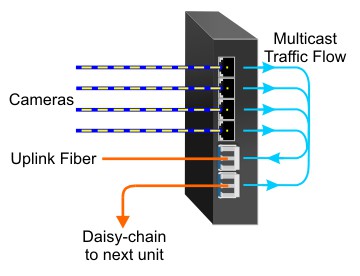

PoE Switch Directed Switch Mode GPoE+SiDirected Switch Mode

In some networks, video cameras broadcast a single multicast video stream to the entire network, and the video stream is received by all of the destinations. This multicast video can cause port flooding on other network devices (including other cameras, printers and workstations). To avoid this, multicast traffic is routed only to ports where the destination devices are connected.

The GPoE+/Si can be configured to operate in Directed Switch Mode, which directs video traffic only to the uplink fiber port, as shown in the diagram below, preventing the multicast video traffic from flooding other network ports.







Description
RuggedNet GPoE+/Si

10/100/1000BASE-T to 1000BASE-X
Ruggedized Unmanaged Ethernet Switch with PoE+
Standard
Compliances

IEEE 802.3, IEEE 802.3af (15.40 watts max),
IEEE 802.3at (30 watts max)

PoE Modes
IEEE Alternate A (Alt A)
Environmental
REACH, RoHS2 and WEEE
Frame Size
Up to 10,240 bytes
Port Types
Copper:

Fiber:
10/100/1000BASE-T (RJ-45)

1000BASE-X (ST, SC, LC, SFP)
Cable Types
Copper:

Fiber:

EIA/TIA 568A/B, Cat 5 UTP and higher

Multimode: 50/125, 62.5/125μm
Single-mode: 9/125μm
DC Power
Requirements
DC Input:

(4 RJ-45 Ports)


(8 RJ-45 Ports)
+/-46 to +/-57VDC1

2.69A @ 48VDC
2 Pin Terminal (isolated)

5.21A @ 48VDC
2 Pin Terminal (isolated)
Dimensions
W: 1.5” x D: 5.5” x H: 5.14”
L: 38.1 mm x B: 139.7 mm x H: 130.5 mm
Weight
4 RJ-45 Ports:

8 RJ-45 Ports:
1.4 lb.; 650 grams

1.5 lb.; 700 grams
Operating Temperature
-40 to 75°C (-20°C cold start)
Humidity
5 to 95% (non-condensing)
Altitude
-100m to 4,000m (operational)
MTBF (hrs)
4 RJ-45 Ports:

8 RJ-45 Ports:
DC Power: TBD

DC Power: TBD
Warranty
5 year product warranty with 24/7/365 free Technical Support

 1A minimum of 52VDC is required to guarantee 25.5 Watts at 100 meters on Cat 5 or better cable.



Standards and Compliances*

Safety
UL 60950-1
IEC 60950-1:2005+A1:2009 and
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
CE Mark
EMC
EN 55032/24
EMI
CISPR 32, FCC 47 Part 15 Subpart B Class A
EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: Signal: 10 V
IEC 61000-4-8 ( Magnetic Field)
IEC 61000-4-11 (General Immunity in Industrial Environments )
IP Rating
IP40 Protection

*Pending

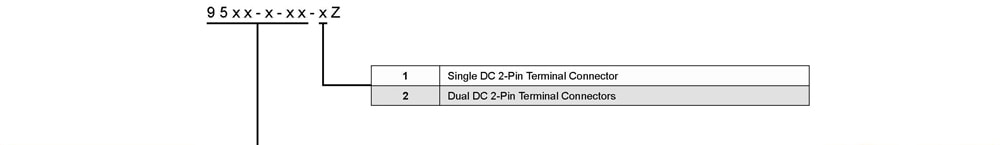

RuggedNet GPoE+/Si 4 Port - IEEE 802.3at PoE+


Fiber TypeDistanceConnector TypeTx Lambda (nm)Rx Lambda (nm)Min. Tx Power (dBm)Max. Tx Power (dBm)Min. Rx Power (dBm)Max. Rx Power (dBm)Min Attenuation (dB)Link
Budget (dB)
STSCLCSFP
MM/DF 220/550m1 9560-0-14 9562-0-14 9566-0-14 - 850 850 -10 -4 -17 -3 - 7
MM/DF (x2) 220/550m1 - - 9566-0-24 - 850 850 -10 -4 -17 -3 - 7
MM/DF 2km - 9562-6-14 - - 1310 1310 -9.5 -3 -19.5 -3 - 10
SM/DF 12km 9561-1-14 9563-1-14 9567-1-14 - 1310 1310 -9.5 -3 -19.5 -3 - 10
SM/DF (x2) 12km - - 9567-1-24 - 1310 1310 -9.5 -3 -19.5 -3 - 10
SM/DF 34km - 9563-2-14 - - 1310 1310 -5 0 -23 -3 3 18
SM/DF 80km - 9563-3-14 - - 1550 1550 -5 0 -23 -3 3 18
SM/DF 110km - 9563-4-14 - - 1550 1550 0 5 -24 -3 8 24
SM/DF 140km - 9563-5-14 - - 1550 1550 2 5 -28 -8 13 30
MM/SF 220/550m1 - 9570-0-14 - - 1310 1550 -9 -3 -18 -3 - 9
MM/SF 220/550m1 - 9571-0-14 - - 1550 1310 -9 -3 -18 -3 - 9
SM/SF 20km - 9570-1-14 - - 1310 1550 -9.5 -3 -20 -3 - 10.5
SM/SF 20km - 9571-1-14 - - 1550 1310 -9.5 -3 -20 -3 - 10.5
SM/SF 40km - 9570-2-14 - - 1310 1550 -3 0 -20 -3 3 17
SM/SF 40km - 9571-2-14 - - 1550 1310 -3 0 -20 -3 3 17
SFP (x1) - - - - 9579-0-14 - - - - - - - -
SFP (x2) - - - - 9579-0-24 - - - - - - - -
 162.5/125μm, 100/140μm multimode fiber up to 220m. 50/125μm multimode fiber up to 550m. Refer to the fiber cable manufacturer for multimode distance specifications.
  Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Omnitron Optical Transceivers web page.



RuggedNet GPoE+/Si 8 Port - IEEE 802.3at PoE+


Fiber TypeDistanceConnector TypeTx Lambda (nm)Rx Lambda (nm)Min. Tx Power (dBm)Max. Tx Power (dBm)Min. Rx Power (dBm)Max. Rx Power (dBm)Min Attenuation (dB)Link
Budget (dB)
STSCLCSFP
MM/DF 220/550m1 9560-0-18 9562-0-18 9566-0-18 - 850 850 -10 -4 -17 -3 - 7
MM/DF (x2) 220/550m1 - - 9566-0-28 - 850 850 -10 -4 -17 -3 - 7
MM/DF 2km - 9562-6-18 - - 1310 1310 -9.5 -3 -19.5 -3 - 10
SM/DF 12km 9561-1-18 9563-1-18 9567-1-18 - 1310 1310 -9.5 -3 -19.5 -3 - 10
SM/DF (x2) 12km - - 9567-1-28 - 1310 1310 -9.5 -3 -19.5 -3 - 10
SM/DF 34km - 9563-2-18 - - 1310 1310 -5 0 -23 -3 3 18
SM/DF 80km - 9563-3-18 - - 1550 1550 -5 0 -23 -3 3 18
SM/DF 110km - 9563-4-18 - - 1550 1550 0 5 -24 -3 8 24
SM/DF 140km - 9563-5-18 - - 1550 1550 2 5 -28 -8 13 30
MM/SF 220/550m1 - 9570-0-18 - - 1310 1550 -9 -3 -18 -3 - 9
MM/SF 220/550m1 - 9571-0-18 - - 1550 1310 -9 -3 -18 -3 - 9
SM/SF 20km - 9570-1-18 - - 1310 1550 -9.5 -3 -20 -3 - 10.5
SM/SF 20km - 9571-1-18 - - 1550 1310 -9.5 -3 -20 -3 - 10.5
SM/SF 40km - 9570-2-18 - - 1310 1550 -3 0 -20 -3 3 17
SM/SF 40km - 9571-2-18 - - 1550 1310 -3 0 -20 -3 3 17
SFP (x1) - - - - 9579-0-18 - - - - - - - -
SFP (x2) - - - - 9579-0-28 - - - - - - - -
 162.5/125μm, 100/140μm multimode fiber up to 220m. 50/125μm multimode fiber up to 550m. Refer to the fiber cable manufacturer for multimode distance specifications.
  Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Omnitron Optical Transceivers web page.

Accessories
 Model Number
 Description
 8251-0
  DIN-Rail Mounting Clip
