Ethernet Media Converters with Power over Ethernet (PoE)

OmniConverter multi-port media converters with Power-over-Ethernet (PoE) enable distance extension over fiber for PoE Powered Devices (PDs). Classified as Power Sourcing Equipment (PSE), PoE media converters can provide power to one or two PoE Powered Devices using standard UTP cables that carry the Ethernet data. OmniConverter media converters support IEEE 802.3af PoE (15.4W), IEEE 802.3af PoE+ (34.2W) and up to 60W PoE. They also support dual or single RJ-45 ports, dual or single fiber ports, and 10/100 or 10/100/1000 data rates.

  • Power over Ethernet injector/source
  • Models support PoE, PoE+ and 60W PoE
  • Multiple port configurations available
  • Supports fixed-fiber connectors or SFP transceivers
  • Available in AC or DC models
  • Integrated wall mount brackets
  • Temperature Hardened
  • Lifetime Warranty and free 24/7 Technical Support
  • Made in the USA

OmniConverter /S and /SL models support single or dual RJ-45 and fiber ports, and provide several advanced features that can be configured with DIP-switches. Configurable features include link fault propagation modes, and a PoE power reset function that enables a PD device to be re-initialized remotely.

OmniConverter /SE models have a smaller form factor, and provide a cost-effective alternative for applications that do not require advanced features or dual fiber ports. There are no DIP-switches for simple, plug-and-play installation.

All OmniConverter media converters can be tabletop mounted, wall mounted, or DIN-rail mounted using an optional DINrail mounting kit. They can also be mounted on a 1U 19” rack-mount shelf. They are available with DC input power via terminal connectors or external 100 to 240V AC power adapters.

|||| Products::

OmniConverter GPoE/S, GPoE+/S and GHPoE/S

d48ed900e79fa9547169c26138b4cd8d_S.jpg10/100/1000 Media Converter with Power over Ethernet (PoE, PoE+ or 60W PoE)

These are Gigabit Ethernet media converters with one or two fiber ports, and one or two 10/100/1000 RJ-45 ports that provide PoE, PoE+ or 60W PoE. They support advanced features with DIP-switch configuration.



OmniConverter GPoE/SE and GPoE+/SE

832731af5d81b95ba82de72993209600_L.jpgCost-Effective 10/100/1000 Media Converter with Power over Ethernet (PoE or PoE+)

These are cost-effective Gigabit Ethernet media converters with a smaller form factor. The /SE models have one fiber port, and one or two 10/100 RJ-45 ports that provide IEEE 802.3af PoE (15.4W) or IEEE 802.3af PoE+ (34.2W).



OmniConverter FPoE/SL, FPoE/S and FPoE+/S

d48ed900e79fa9547169c26138b4cd8d_S.jpg10/100 Media Converter with Power over Ethernet (PoE or PoE+)

FPoE/SL - Fast Ethernet, PoE, cost-effective These are Fast Ethernet media converters with one or two fiber ports, and one or two 10/100 RJ-45 ports that provide IEEE 802.3af PoE (15.4W) or IEEE 802.3af PoE+ (34.2W). They support advanced features with DIP-switch configuration.



OmniConverter FPoE/SE and FPoE+/SE

832731af5d81b95ba82de72993209600_L.jpgCost-Effective 10/100 Media Converter with Power over Ethernet (PoE or PoE+)

These are cost-effective Fast Ethernet media converters with a smaller form factor. The /SE models have one fiber port, and one or two 10/100 RJ-45 ports that provide IEEE 802.3af PoE (15.4W) or IEEE 802.3af PoE+ (34.2W).



OmniConverter 1U Rack-Mount Shelf

OmniConverter 1U Rack-Mount Shelf19” Rack Mount for OmniConverter PoE Media Converter Modules

The 1U 19" Rack-Mount Shelf accommodates up to three OmniConverter media converters. Products are secured to the shelf with easy-to-use snap-rivets - no special tooling is required. The shelf provides multiple grounding points, as well as convenient locations for cable ties to organize and secure all fiber and copper cabling.







|||| Feature Comparison::

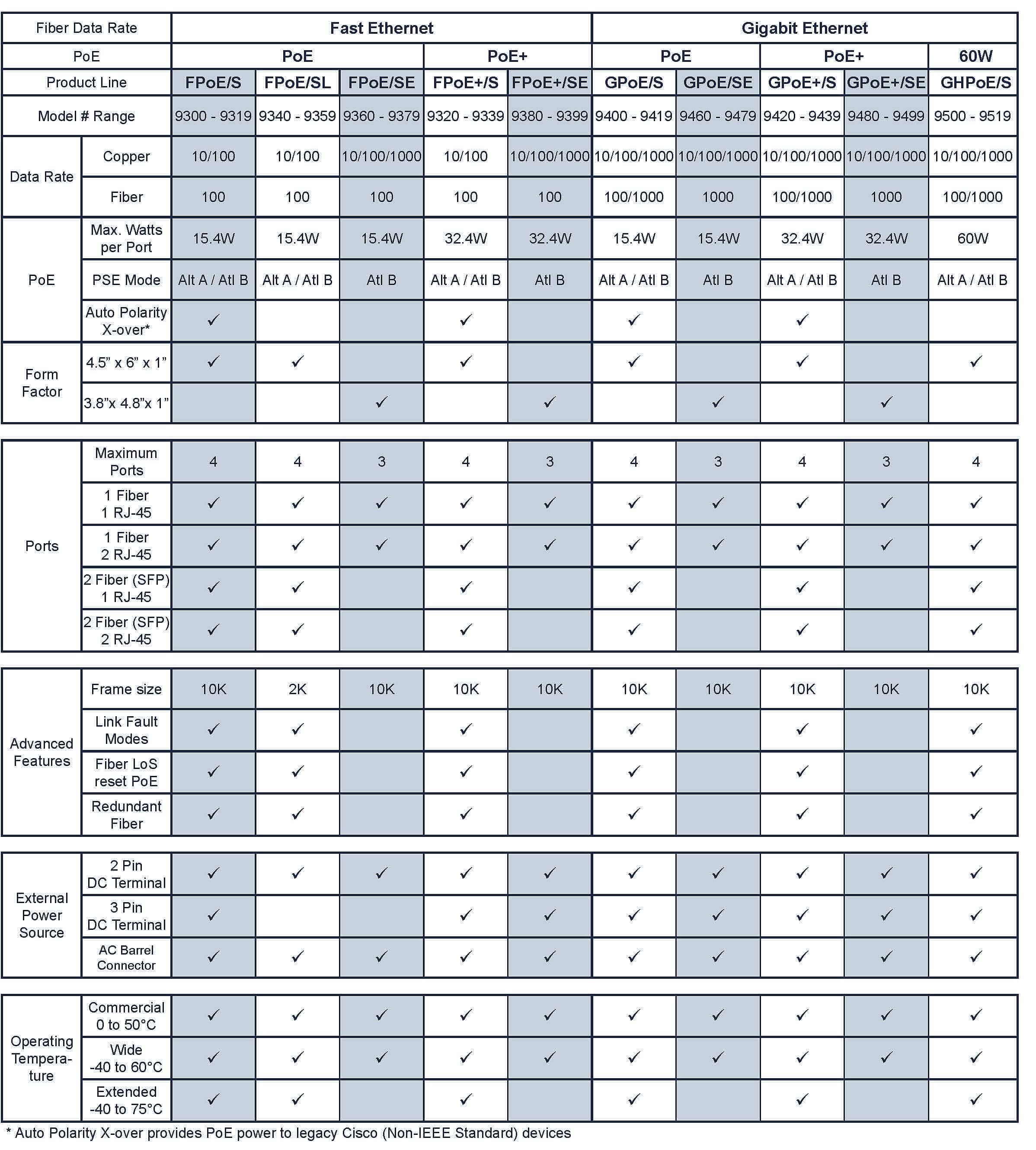

Product Comparison


||||Examples::

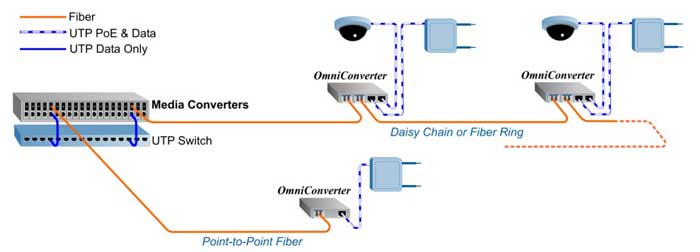

PoE Media Converters Extend Distances to PoE and PoE+ Devices with Fiber

PoE and PoE+ media converters extend network distances to surveillance cameras and wireless access points with fiber cabling, and inject Power over Ethernet

omniconverter-app

How PoE Media Converters Work

How PoE media converters overcome UTP cabling distance challenges

How port configurations enable flexible deployments

PoE Media Converter Application Examples

PoE IP surveillance cameras

PoE Wireless Access Points

PoE VoIP Phones, Video Terminals and Thin Clients

PoE Access Control and Smart Building devices

Carrier Wi-Fi and Data Offloading Applications

Arena Wi-Fi Offloading

Carrier Wi-Fi in Office Building

Municipal Wi-Fi Hot Spots
