Gigabit Media Converters

Find Products & Technologies


Pluggable Transceivers

for CWDM Applications

Omnitron’s Small Form Pluggable (SFP) and 10 Gigabit SFP+/XFP optical transceivers are interchangeable compact fiber connectors that enable a single network device to connect to a wide variety of fiber optic cable types and distances. CWDM Pluggable Optical Transceivers are used to customize iConverter®, FlexPoint™, OmniConverter™ and miConverter™ products to meet specific networking protocols and media requirements.

10/100/1000 Copper to 100/1000X Fiber Ethernet Media Converter

The FlexPoint GX/T is a 10/100/1000BASE-T copper to 1000BASE-X fiber media converter that supports jumbo frames up to 10,240 bytes. The GX/T features Small Form Pluggable (SFP) transceivers that support both 100BASE-FX and 1000BASE-X for interoperability with Gigabit and Fast Ethernet fiber equipment.

Unmanaged T1/E1 Multiplexer

The iConverter 4xT1/E1 MUX multiplexs up to four T1/E1s and an optional 10/100 Ethernet onto a fiber optic transport link. The unmanaged T1/E1 Multiplexer provides an easy to use and cost effective multi-service solution.

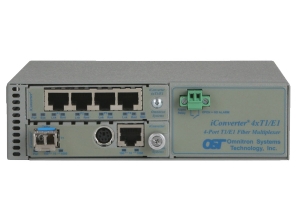

Managed T1/E1 Multiplexer

The iConverter 4xT1/E1 MUX/M multiplexes up to four T1/E1s and Ethernet onto a fiber optic transport link, and features remotely managed testing and configuration capabilities.

1000BASE-T to 1000BASE-SX/LX Managed Media Converter

The iConverter Gx AN Media Converter is a managed media converter that provides 1000BASE-T UTP to 1000BASE-X fiber conversion between Gigabit networking devices. The UTP port supports auto-negotiation or forced negotiation of duplex modes and pause capability while the fiber port supports both manual or auto-negotiation.

Coax to Fiber Media Converter

The iConverter STM1 copper-to-fiber media converter converts 155.52 Mbps STM-1e coax to STM-1 fiber. It can be used in Telecom or Enterprise applications where STM-1 or OC-3 transport is required beyond the maximum distance of copper (approximately 70m).

T1/E1 Managed Media Converter

The iConverter T1/E1 media converter provides standard T1 (1.544Mbps) or E1 (2.048Mbps) copper-to-fiber conversion and can be used to extend the demarcation point between service provider and networking equipment. T1/E1 media converters operate in pairs, extending distances over fiber, which improves noise immunity, quality of service, intrusion protection and network security.

T1/E1 Multiplexer

The iConverter T1/E1 MUX/M multiplexes up to sixteen T1 or E1 circuits and one 10/100/1000 Ethernet service onto a fiber optic transport link, and features remotely managed testing and configuration capabilities.

T3/E3 Managed Media Converter

The iConverter T3/E3 media converter provides standard T3 (44.736Mbps) or E3 (34.368Mbps) coax to fiber conversion and can be used to connect to devices such as PBXs, multiplexers, routers and video servers via fiber. T3/E3 media converters operate in pairs, extending distances over fiber, which improves noise immunity, quality of service, intrusion protection and network security.

X.21 Serial to Fiber Media Converter

The iConverter X21 serial-to-fiber media converter supports X.21 and RS-530 applications featuring several configuration modes to enable connections with a wide variety of X.21 and RS-530 devices.

SFP to SFP Protocol-Transparent Media Converter and WDM Transponder

The iConverter xFF is a protocol-transparent media converter that provides reliable and cost-effective conversion between different wavelengths, multimode and single-mode, and dual and single-fiber.

10Gbps Protocol-Transparent Media Converter/Transponder

The iConverter XG and XG+ are 10 Gigabit, protocol-transparent media converters with two pluggable transceiver ports supporting the three Rs (regeneration, retiming and reshaping). By taking advantage of the wide variety of 10G pluggable transceivers, they can be used as copper-to-fiber converters, fiber mode converters or WDM transponders.

10/100/1000BASE-T to 1000BASE-X Ethernet Media Converter

The miConverter GX/T is a miniature 10/100/1000BASE-T UTP copper to 1000BASE-X fiber media converter that supports jumbo frames up to 10,240 bytes. The miConverter GX/T provides cost-effective fiber connectivity from Ethernet switches to diagnostic equipment, desktop and laptop computers.

Multi-port 10/100 Media Converter with Power over Ethernet (PoE/PoE+)

The OmniConverter FPoE/SL, FPoE/S and FPoE+/S are multi-port media converters that convert 10/100BASE-T copper to 100BASE-FX fiber and support Power-over-Ethernet (PoE and PoE+). Classified as Power Sourcing Equipment (PSE), they can provide power to one or two Powered Devices (PDs) using standard UTP cables that carry the Ethernet data.

Gigabit Media Converter Power over Ethernet (PoE/PoE+)

The OmniConverter GPoE/S and GPoE+/S are multi-port media converters that convert 10/100/1000BASE-T copper to 1000BASE-X or 100BASE-FX fiber and support Power-over-Ethernet (PoE and PoE+). Classified as Power Sourcing Equipment (PSE), they can provide power to one or two Powered Devices (PDs) using standard UTP cables that carry the Ethernet data.

Small Form Pluggable Optical Transceivers

Omnitron’s Small Form Pluggable (SFP) and 10 Gigabit SFP+/XFP optical transceivers are interchangeable, compact media connectors. They enable a single network device to connect to a wide variety of fiber and copper cable types and distances. Pluggable Optical Tranceivers are used to customize iConverter®, FlexPoint™, OmniConverter™ and miConverter™ products to meet specific networking protocols and media requirements.
