Service Provider Solutions

Deliver Reliable Ethernet Services and Support SLAs

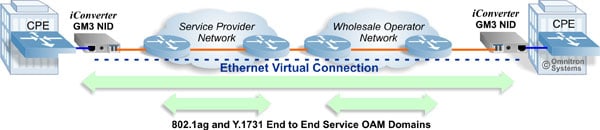

Providing reliable Ethernet services and supporting enforceable SLA assurances requires Operations Administration and Maintenance (OAM) functions to provide fault management and performance monitoring of the entire Ethernet connection. ITU-T Y.1731 and IEEE 802.1ag standards enable End-to-End Service OAM functions to accomplish these service delivery objectives across one or more carrier networks.

802.1ag Connectivity Fault Management improves reliability with OAM tools for instant fault notification and rapid fault isolation. Y.1731 monitors the performance of Ethernet services on both an EVC and Class of Service basis for Service Level Agreement (SLA) assurance.

Learn more about Carrier Ethernet and End-to-End Service OAM
Visit the Carrier Ethernet Resource Center

iConverter GM3 Network Interface Devices support both 802.1ag and Y.1731 standards to enable reliable and scalable optical Ethernet services. The flexible port configurations, service provisioning and advanced traffic management features of the GM3 future-proofs Metro Ethernet services with scalability of network capacity and services, and lowers operating costs with comprehensive OAM management and provisioning.

• ITU-T Y.1731 Performance Monitoring for Service Level Agreement assurance
• IEEE 802.1ag Connectivity Fault Management for proactive fault detection and isolation
• IEEE 802.3ah for troubleshooting network access links
• Service Multiplexing, traffic shaping and policing

Learn more about iConverter GM3 NIDs
Overview of all iConverter NIDs

Expand the Capacity of Metropolitan, Access and Backhaul Fiber Links

Coarse Wavelength Division Multiplexing (CWDM) increases the capacity of SONET/SDH, metropolitan, first-mile access, mobile backhaul and hybrid coax/fiber networks to enable new services and revenues. Each CWDM wavelength is an independent data channel that can transport a different protocol (Ethernet, TDM, etc.) and data rate (up to 10 gigabits each).

• Co-locate more Service Providers at cellular towers
• Overlay Ethernet and TDM circuits onto SONET rings
• Add new subscribers to fiber access networks and hybrid coax/fiber networks

Case Study: CWDM over SONET Ring
CWDM Point-to-Point Application Example
CWDM Bus (Daisy Chain) Add and Drop Application Example
CWDM over SONET Application Example



Visit the CWDM Resource Center to view videos and download white papers

iConverter CWDM/X and CWDM/AD Add+Drop MUX products multiplex up to sixteen independent wavelengths over single mode fiber.

iConverter CWDM modules utilize a small and scalable plug-in form factor, and can be installed in any powered or unpowered iConverter chassis achieving some of the highest port densities in the industry. iConverter CWDM modules are available in expandable four-channel and eight-channel configurations.

The modules are designed to be integrated with other iConverter media converters and transponders to provide a true multi-service platform capable of delivering Ethernet, TDM, SONET and other services across a CWDM common link.

Learn more about iConverter CWDM Multiplexers

Migration to LTE Ethernet Backhaul

The proliferation of mobile devices is driving a seemingly insatiable need for mobile backhaul bandwidth. Fiber is the only media capable of supporting virtually limitless growth, so Carriers are currently driving fiber to the edges of the network. Unfortunately, bandwidth is only part of the problem. Mobile technology is in the midst of a migration from third generation (3G) to fourth generation (4G/LTE). This means that Carriers providing backhaul must be able to satisfy growing demands for TDM services while preparing for a seamless migration to all Ethernet network in the future. While many options are available, Carriers must be able to support the migration in a scalable and cost-effective manner.

Omnitron Ethernet Network Interface Devices, T1/E1 multiplexers, CWDM Multiplexers and media converters provide transport of both TDM and Ethernet services in this migration from TDM to LTE backhaul. In addition, they support the ability to connect multiple carriers to the cell tower for wholesale mobile backhaul.

There are essentially three phases in the migration from legacy 3G to LTE mobile backhaul. Omnitron fiber connectivity products can support backhaul of services at each phase.

1. Legacy mobile backhaul networks are based on TDM
2. Current migration adds Carrier Ethernet to TDM network (Hybrid Mobile Backhaul)
3. The future requires Long Term Evolution (LTE) Carrier Ethernet and fiber infrastructure

iConverter Fiber Connectivity Solutions Enable this Migration

1. iConverter T1/E1 Multiplexers transport up to sixteen T1 circuits over fiber for Legacy TDM backhaul
   • Local and Remote Loop-back for troubleshooting and installation verification
   • Supports AIS (Alarm Indication Signal) generation on each T1/E1
   • Management via local serial port, Telnet or SNMP

View a TDM mobile backhaul application example

2. iConverter T1/E1 Multiplexers transport 10/100/1000 Ethernet with the T1s for hybrid mobile backhaul
   • Same form factor and functions, and adds 10/100/1000 Ethernet multiplexed with the T1s
   • Enables hybrid Ethernet/TDM mobile backhaul

View a Hybrid TDM and Ethernet mobile backhaul application example

3. iConverter GM3 Network Interface Devices support Service OAM to enable Carrier Ethernet / LTE backhaul
   • Supports 802.1ag Connectivity Fault Detection and ITU Y.1731 Performance Monitoring
   • Service multiplexing and traffic shaping
   • Remote management through TELNET, SNMPv1/2c/3

Learn more about Carrier Ethernet Demarcation and Service OAM

Backhaul of Multiple Wireless Carriers to a Cell Tower

Fiber Rich Wholesale Mobile Backhaul

iConverter T1 Multiplexers and GM3 NIDs provide connectivity for multiple Wireless Carriers to the cell tower over different strands of fiber. The iConverter Multi-Service Platform enables the transport of different generations of backhaul services, with equipment located in cabinets, wall mounts or rack configurations.

View a fiber-rich cell tower backhaul application example illustrating how three Wireless Carriers connect diverse services to a cell tower.

Fiber Exhaust Wholesale Mobile Backhaul

iConverter CWDM Multiplexers provide connectivity for multiple Wireless Carriers to the cell tower over a single strand of fiber.

• Up to 16 different wavelengths over the backhaul link
• Each wavelength is a independent service or circuit with a capacity of up to 10 Gigabits
• One wavelengths can transport multiple T1s (T1/E1s multiplexed via an Ethernet circuit)
• Connect to multiple Carriers’ equipment in different cabinet, wall mount or rack configurations

View a CWDM mobile backhaul application example illustrating how three Wireless Carriers connect different services to a cell tower with a CWDM fiber backhaul link.

Reach More Customers with Demarcation Extension and Riser Management

The iConverter Multi-Service Platform enables fiber connectivity between Service Provider demarcation equipment and tenants in hi-rise buildings and business complexes.

In this Riser Management application example, Ethernet and T1 services are delivered via fiber links to tenants in the building from Service Provider equipment with copper interfaces on the ground floor.

View this Riser Management Application Example

iConverter Network Interface Devices and managed media converters enable fiber connectivity for Ethernet, T1/E1 and T3/E3 demarcation extension in hi-rise buildings and business complexes.

iConverter Ethernet Copper-to-Fiber media converters

iConverter TDM copper-to-fiber media converters extend T1/E1, T3/E3/DS3, and OC-3/STM-1 copper services over fiber.

iConverter TDM media converters

The iConverter platform is available with high-density chassis for distributing multiple fiber runs from the demarcation point, and standalone modules to hand off services at the tenant offices.

Multiple services can be transported over an existing fiber link with iConverter CWDM multiplexers and T1/E1 multiplexers. Preserve investments and save the cost of installing new fiber links by expanding the capacity of existing fiber infrastructure.

Extend the Distance of SONET Networks

OC-3/STM-1 and OC-12/STM-4 fiber-to-fiber media converters extend SONET fiber distances by amplifying the optical power, converting single mode to multi-mode, and dual fiber to single-fiber, and converting wavelengths.

OC-3/STM-1 and OC-12/STM-4 Fiber Extension Application Example

OC-3/STM-1 and OC-12/STM-4 SONET Ring Distance Extension Application Example

Learn more about iConverter TDM Media Converters
