Gigabit PoE Media Converter | OmniConverter GPoE/SE Gigabit PoE Media Converter | OmniConverter GPoE/SE SFPs not included

OmniConverter GPoE/S, GPoE+/S and GHPoE/S

10/100/1000 Media Converter with Power over Ethernet (PoE, PoE+ or 60W PoE)

The OmniConverter GPoE/S, GPoE+/S and GHPoE/S are multi-port media converters that convert 10/100/1000BASE-T copper to 1000BASE-X or 100BASE-FX fiber and support Power-over-Ethernet (PoE, PoE+ and 60W PoE). Classified as Power Sourcing Equipment (PSE), they can provide power to one or two Powered Devices (PDs).

question

  • Power over Ethernet injector/source
  • 10/100/1000BASE-T copper to 1000BASE-X fiber media converter
  • Supports frame sizes up to 10,240 bytes
  • The GPoE/S supports IEEE 802.3af PoE on one or two RJ-45 copper ports
  • The GPoE+/S supports IEEE 802.3at PoE+ on one or two RJ-45 copper ports
  • The GHPoE/S supports 60W PoE on one or two RJ-45 copper ports
  • Multiple port configurations:
    • 2 Port Device: 1 Fiber + 1 RJ-45
    • 3 Port Device: 2 Fiber + 1 RJ-45
    • 3 Port Device: 1 Fiber + 2 RJ-45
    • 4 Port Device: 2 Fiber + 2 RJ-45
  • Supports 1000BASE-X fixed-fiber and 1000BASE-X or 100BASE-X SFP transceivers
  • Redundant protected fiber link option (using dual SFP transceivers)
  • Compatible with legacy pre-IEEE standard powered devices
  • Configurable PoE power reset
  • Available in AC and DC models
  • Integrated wall mount brackets
  • Commercial (0º to 50ºC), wide (-40º to 60ºC) and extended (-40º to 75ºC) operating temperature ranges
  • Lifetime Warranty and free 24/7 Technical Support



The OmniConverter GPoE/S, GPoE+/S and GHPoE/S are multi-port media converters that convert 10/100/1000BASE-T copper to 1000BASE-X or 100BASE-X fiber and support Power-over-Ethernet (PoE, PoE+ and 60W PoE). Classified as Power Sourcing Equipment (PSE), they can provide power to one or two Powered Devices (PDs) using standard UTP cables that carry the Ethernet data.

OmniConverter PoE media converters provide network distance extension with fiber cabling, and function as PoE injectors.

The GPoE/S provides up to 15.40W PoE (IEEE 802.3af) per RJ-45 port, and the GPoE+/S provides up to 34.20W PoE+ (IEEE 802.3at) per RJ-45 port. The GHPoE/S provides up to 60W PoE per RJ-45 port for outdoor PTZ (pan-tilt-zoom) cameras with heaters and blowers, and multi-stream wireless access points. All three OmniConverter models support frame sizes up to 10,240 bytes.

Models with two fiber ports support redundant fiber uplinks for critical applications that require protection and sub 50ms restoration in the event of a fiber failure. The second fiber port may also be used to cascade multiple media converters, or it may be used as another switch port.

Configurable features include link modes and a PoE power reset function that enables a PD device to be re-initialized remotely. When a problem with a PD is identified, the fiber port on a managed switch can be shut down or disconnected, enabling the PoE power reset function on the OmniConverter. The PoE power to the PD is disabled for 2 seconds when a loss of receive fiber link is detected by the OmniConverter, eliminating the need for costly truck rolls to remote PD sites.

Link modes can be configured to propagate loss-of-link faults to managed devices, immediately notifying administrators of network outages.

OmniConverter media converters support fixed-fiber connectors and Small Form Pluggable (SFP) transceivers, enabling easy adaptability to different fiber types, distances and wavelengths. They support multimode and single-mode dual fiber; and single-mode single-fiber, in standard and CWDM wavelengths.

The compact standalone OmniConverter media converters can be tabletop mounted, wall mounted, or DIN-rail mounted using an optional DIN-rail mounting kit. They can also be mounted on a 1U 19” rack-mount shelf. They are available with DC input power via terminal connectors or external 100 to 240V AC power adapters.

Security and Wireless

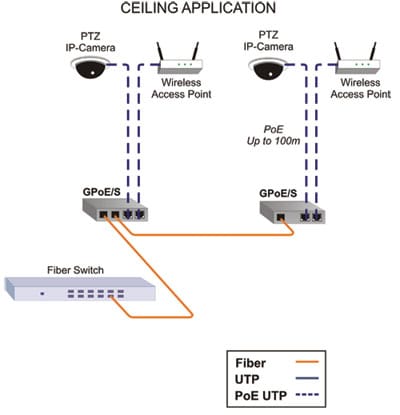

In this application example, PoE and PoE+ IP surveillance cameras and Wireless Access Points are installed throughout a large facility. A Network switch with fiber ports is used to distribute a fiber link from a control room to a OmniConverter media converter with dual fiber ports. The second fiber port on the OmniConverter is used to daisy-chain the fiber to the next location, where an OmniConverter media converter with one fiber port terminates the fiber.

The OmniConverter media converters provide Power over Ethernet (PoE) over UTP cables to an IP camera and Wireless Access Point at each location, each of which can be located up to 100m from the media converter.

For PoE+ and 60W PoE devices, such as cameras with heaters/blowers or pan/tilt/zoom motors, the GHPoE/S can be used for devices that require up to 60W, and the GPoE+/S can be used for devices that require up to 25.5W.





Fiber-to-the-Desk

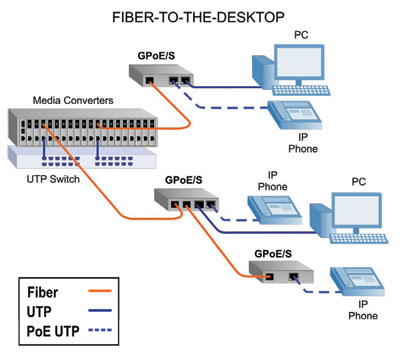

In this application example, a fiber-to-the-desk network is deployed to leverage the security and distance benefits of fiber.

In the main data closet, iConverter, miConverter or FlexPoint media converters can be installed in high-density rack-mount chassis to provide reliable and cost-effective fiber distribution from existing copper network equipment.

Fiber optic cables run to each office, where they are terminated by OmniConverter media converters. The OmniConverter media converters convert fiber to copper and, provide data and power to desktop devices such as IP phones and video conferencing equipment. They automatically disable PoE power to non-PoE desktop devices such as PCs and laptops.ps.





Description OmniConverter GPoE/S

10/100/1000BASE-T to 1000BASE-X
Fiber Media Converter with PoE
OmniConverter GPoE+/S

10/100/1000BASE-T to 1000BASE-X
Fiber Media Converter with PoE+
OmniConverter GHPoE/S

10/100/1000BASE-T to 1000BASE-X
Fiber Media Converter with 60W PoE
Standard Compliances IEEE 802.3,
IEEE 802.3af (15.40 watts max)
IEEE 802.3,
IEEE 802.3af (15.40 watts max),
IEEE 802.3at (34.20 watts max)
IEEE 802.3,
IEEE 802.3af (15.40 watts max),
IEEE 802.3at (34.20 watts max)
60W PoE
PoE Supported Modes IEEE Alternate A (Alt A)
IEEE Alternate B (Alt B)
Cisco Legacy and High Cap
Regulatory Compliances UL, CE, FCC Class A
Frame Size Up to 10,240 bytes
Port Types Copper:

Fiber:
10/100/1000BASE-T (RJ-45)

100BASE-X (SFP)
1000BASE-X (ST, SC, LC, SFP)
1000BASE-BX (SC, SFP)
Cable Types Copper:

Fiber:
EIA/TIA 568A/B, Cat 5 UTP and higher

Multimode: 50/125, 62.5/125µm
Single-mode: 9/125µm
AC Power
Requirements
AC Adapter:
(1 RJ-45 Port):

AC Adapter:
(2 RJ-45 Ports):
100 - 240VAC/47 to 63Hz
0.24A @ 120VAC (typical)

100 - 240VAC/50 - 60Hz
0.41A @ 120VAC (typical)
100 - 240VAC/47 to 63Hz
0.28A @ 120VAC (typical)

100 - 240VAC/50 - 60Hz
0.52A @ 120VAC (typical)
100 - 240VAC/47 to 63Hz
0.70A @ 120VAC (typical)

100 - 240VAC/50 - 60Hz
1.39A @ 120VAC (typical)
DC Power
Requirements
DC Input:
(1 RJ-45 Port)


DC Input:
(2 RJ-45 Ports)
+/-46 to +/-57VDC;
0.46A @ 48VDC
3 Pin Terminal (isolated)

+/-46 to +/-57VDC;
0.79A @ 48VDC
3 Pin Terminal (isolated)
+/-48 to +/-57VDC;2
0.54A @ 48VDC
3 Pin Terminal (isolated)

+/-48 to +/-57VDC;2
1.00A @ 48VDC
3 Pin Terminal (isolated)
+/-48 to +/-57VDC;2
1.14A @ 56VDC
3 Pin Terminal (isolated)

+/-48 to +/-57VDC;2
2.27A @ 56VDC
3 Pin Terminal (isolated)
Dimensions W: 4.5” x D: 6.0” x H 1.0”
L: 114.3 mm x B: 152.4 mm x H: 25.4 mm
Weight w/o Adapter:
w/ Adapter:
1.1 lb.; 498.9 grams
1.6 lbs.; 725.7 grams
1.1 lb.; 498.9 grams
2.3 lbs.; 1043.3 grams
1.1 lb.; 498.9 grams
2.3 lbs.; 1043.3 grams1
Temperature Commercial:
Wide:
Extended:
Storage:
0 to 50°C
-40 to 60°C
-40 to 75°C
-40 to 80°C
Humidity 5 to 95% (non-condensing)
Altitude -100m to 4,000m
MTBF (hours) AC Adapter: 183,000
DC: 474,000
AC Adapter: 83,000
DC: 474,000
TBD
Warranty Lifetime warranty with 24/7/365 free Technical Support

1 Pending.
2 A minimum of 52VDC is required to guarantee 25.5 watts at 100 meters on Cat 5 cable or better.

Function/Feature
OmniConverter GPoE/S
OmniConverter GPoE+/S
OmniConverter GHPoE/S
Power available at PD 12.95 Watts 25.50 Watts 50.0 Watts max.
Maximum power by PSE 15.40 Watts 34.20 Watts 60.0 Watts
Supported Modes

IEEE Alternate A (Alt A)


IEEE Alternate B (Alt B)


Legacy


60 Watts


Vport Positive - pins 1,2
Vport Negative - pins 3,6

Vport Positive - pins 4,5
Vport Negative - pins 7,8

Vport Positive - pins 7,8
Vport Negative - pins 4,5


-


Vport Positive - pins 1,2
Vport Negative - pins 3,6

Vport Positive - pins 4,5
Vport Negative - pins 7,8

Vport Positive - pins 7,8
Vport Negative - pins 4,5


-


Vport Positive - pins 1,2
Vport Negative - pins 3,6

Vport Positive - pins 4,5
Vport Negative - pins 7,8

Vport Positive - pins 7,8
Vport Negative - pins 4,5

4 Pair Powering
Vport Positive - pins 3,6 and 4,5
Vport Negative - pins 1,2 and 7,8

OmniConverter GPoE/S - IEEE 802.3af PoE

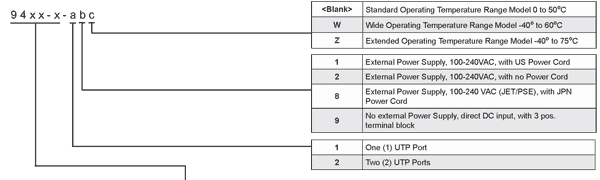

order-omni-gpoes

Fiber TypeDistanceNumber of RJ-45 PortsConnector TypeTx Lambda (nm)Rx Lambda (nm)Min. Tx Power (dBm)Max. Tx Power (dBm)Min. Rx Power (dBm)Max. Rx Power (dBm)Min Attenuation (dB)Link
Budget (dB)
STSCSFP
MM 220/550m1 1 9400-0-1 9402-0-1 - 850 850 -10 -4 -17 -3 - 7
2 9400-0-2 9402-0-2 -
SM 12km 1 9401-1-1 9403-1-1 - 1310 1310 -9.5 -3 -19.5 -3 - 10
2 9401-1-2 9403-1-2 -
SM 34km 1 - 9403-2-1 - 1310 1310 -5 0 -23 -3 3 18
2 - 9403-2-2 -
SM 80km 1 - 9403-3-1 - 1550 1550 -5 0 -23 -3 3 18
2 - 9403-3-2 -
SM 110km 1 - 9403-4-1 - 1550 1550 0 5 -24 -3 8 24
2 - 9403-4-2 -
SM 140km 1 - 9403-5-1 - 1550 1550 2 5 -28 -8 13 30
2 - 9403-5-2 -
SM-SF2 20km 1 - 9410-1-1 - 1310 1550 -9.5 -3 -20 -3 - 10.5
2 - 9410-1-2 -
SM-SF2 20km 1 - 9411-1-1 - 1550 1310 -9.5 -3 -20 -3 - 10.5
2 - 9411-1-2 -
SM-SF2 40km 1 - 9410-2-1 - 1310 1550 -3 0 -20 -3 3 17
2 - 9410-2-2 -
SM-SF2 40km 1 - 9411-2-1 - 1550 1310 -3 0 -20 -3 3 17
2 - 9411-2-2 -
SFP (x1) - 1 - - 9419-0-1 - - - - - - - -
2 - - 9419-0-2
SFP (x2) - 1 - - 9419-1-1 - - - - - - - -
2 - - 9419-1-2
162.5/125µm, 100/140µm multimode fiber up to 220m. 50/125µm multimode fiber up to 550m. Refer to the fiber cable manufacturer for multimode distance specifications.

2
When using single-fiber (SF) media converter models, the Tx wavelength on one end has to match the Rx wavelength on the other.

Contact Omnitron for other fiber options and operational temperature ranges. Order the appropriate SFPs separately. Visit the Omnitron Optical Transceivers web page.



Accessories
Model Number Description
8250-0 DIN-Rail Mounting Bracket
8260-0 19” rack mount shelf

OmniConverter GPoE+/S - IEEE 802.3at PoE+

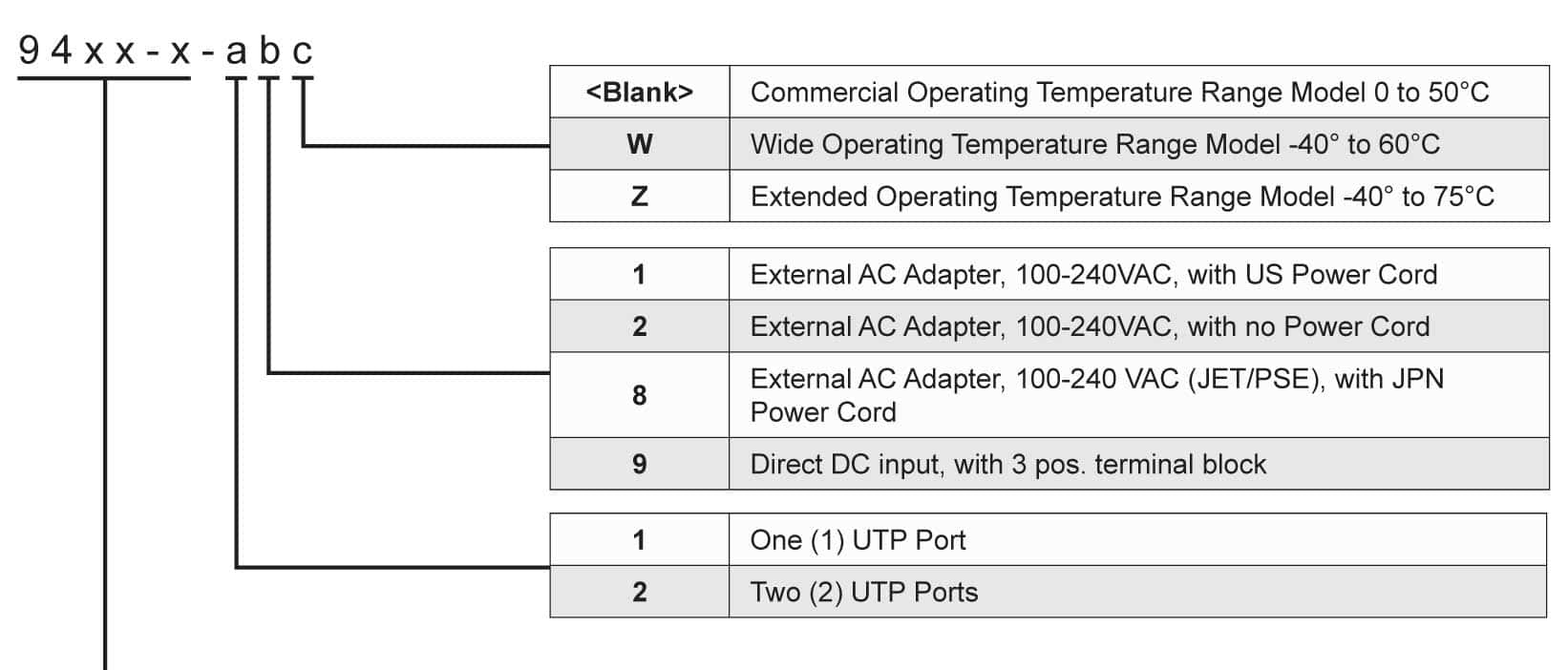

order-omni-gpoes

Fiber TypeDistanceNumber of RJ-45 PortsConnector TypeTx Lambda (nm)Rx Lambda (nm)Min. Tx Power (dBm)Max. Tx Power (dBm)Min. Rx Power (dBm)Max. Rx Power (dBm)Min Attenuation (dB)Link
Budget (dB)
STSCSFP
MM 220/550m1 1 9420-0-1 9422-0-1 - 850 850 -10 -4 -17 -3 - 7
2 9420-0-2 9422-0-2 -
SM 12km 1 9421-1-1 9423-1-1 - 1310 1310 -9.5 -3 -19.5 -3 - 10
2 9421-1-2 9423-1-2 -
SM 34km 1 - 9423-2-1 - 1310 1310 -5 0 -23 -3 3 18
2 - 9423-2-2 -
SM 80km 1 - 9423-3-1 - 1550 1550 -5 0 -23 -3 3 18
2 - 9423-3-2 -
SM 110km 1 - 9423-4-1 - 1550 1550 0 5 -24 -3 8 24
2 - 9423-4-2 -
SM 140km 1 - 9423-5-1 - 1550 1550 2 5 -28 -8 13 30
2 - 9423-5-2 -
SM-SF2 20km 1 - 9430-1-1 - 1310 1550 -9.5 -3 -20 -3 - 10.5
2 - 9430-1-2 -
SM-SF2 20km 1 - 9431-1-1 - 1550 1310 -9.5 -3 -20 -3 - 10.5
2 - 9431-1-2 -
SM-SF2 40km 1 - 9430-2-1 - 1310 1550 -3 0 -20 -3 3 17
2 - 9430-2-2 -
SM-SF2 40km 1 - 9431-2-1 - 1550 1310 -3 0 -20 -3 3 17
2 - 9431-2-2 -
SFP (x1) - 1 - - 9439-0-1 - - - - - - - -
2 - - 9439-0-2
SFP (x2) - 1 - - 9439-1-1 - - - - - - - -
2 - - 9439-1-2
1 62.5/125µm, 100/140µm multimode fiber up to 220m. 50/125µm multimode fiber up to 550m. Refer to the fiber cable manufacturer for multimode distance specifications.
When using single-fiber (SF) media converter models, the Tx wavelength on one end has to match the Rx wavelength on the other.
Contact Omnitron for other fiber options and operational temperature ranges. Order the appropriate SFPs separately. Visit the Omnitron Optical Transceivers web page.



Accessories
Model Number Description
8250-0 DIN-Rail Mounting Bracket
8260-0 19” rack mount shelf

OmniConverter GHPoE/S - 60W PoE

order-GPOES

Fiber
Type
DistanceNumber of RJ-45 PortsConnector TypeTx Lambda (nm)Rx Lambda (nm)Min. Tx Power (dBm)Max. Tx Power (dBm)Min. Rx Power (dBm)Max. Rx Power (dBm)Min Attenuation (dB)Link
Budget (dB)
STSCLCSFP
MM
220/550m1
1
9500-0-1
9502-0-1
9506-0-1
-
850
850
-10
-4
-17
-3
-
7
2
9500-0-2
9502-0-2
9506-0-2
-
LC MM
(x2)
220/550m1
1
-
-
9506D-0-1
-
850
850
-10
-4
-17
-3
-
7
2
-
-
9506D-0-2
-
SM
12km
1
9501-1-1
9503-1-1
9507-1-1
-
1310
1310
-9.5
-3
-19.5
-3
-
10
2
9501-1-2
9503-1-2
9507-1-2
-
LC SM
(x2)
12km
1
-
-
9507D-1-1
-
1310
1310
-9.5
-3
-19.5
-3
-
10
2

-
9507D-1-2
-
SM
34km
1
9501-2-1
9503-2-1
-
-
1310
1310
-5
0
-23
-3
3
18
2
9501-2-2
9503-2-2
-
-
SM
80km
1
-
9503-3-1
-
-
1550
1550
-5
0
-23
-3
3
18
2
-
9503-3-2
-
-
SM
110km
1
-
9503-4-1
-
-
1550
1550
0
5
-24
-3
8
24
2
-
9503-4-2
-
-
SM
140km
1
-
9503-5-1
-
-
1550
1550
2
5
-28
-8
13
30
2
-
9503-5-2
-
-
SM-SF2
20km
1
-
9510-1-1
-
-
1310
1550
-9.5
-3
-20
-3
-
10.5
2
-
9510-1-2
-
-
SM-SF2
20km
1
-
9511-1-1
-
-
1550
1310
-9.5
-3
-20
-3
-
10.5
2
-
9511-1-2
-
-
SM-SF2
40km
1
-
9510-2-1
-
-
1310
1550
-3
0
-20
-3
3
17
2
-
9510-2-2
-
-
SM-SF2
40km
1
-
9511-2-1
-
-
1550
1310
-3
0
-20
-3
3
17
2
-
9511-2-2
-
-
SFP (x1)
-
1
-
-
-
9519-0-1
-
-
-
-
-
-
-
-
2
-
-
-
9519-0-2
SFP (x2)
-
1
-
-
-
9519-1-1
-
-
-
-
-
-
-
-
2
-
-
-
9519-1-2
162.5/125µm, 100/140µm multimode fiber up to 220m. 50/125µm multimode fiber up to 550m. Refer to the fiber cable manufacturer for multimode distance specifications.
2
When using single-fiber (SF) media converter models, the Tx wavelength on one end has to match the Rx wavelength on the other.
Contact Omnitron for other fiber options and operational temperature ranges. Order the appropriate SFPs separately. Visit the Omnitron Optical Transceivers web page.
